Section 476 (Can Communication System - Diagnostics): Pre-Check

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DTCS COMBINATION TABLE

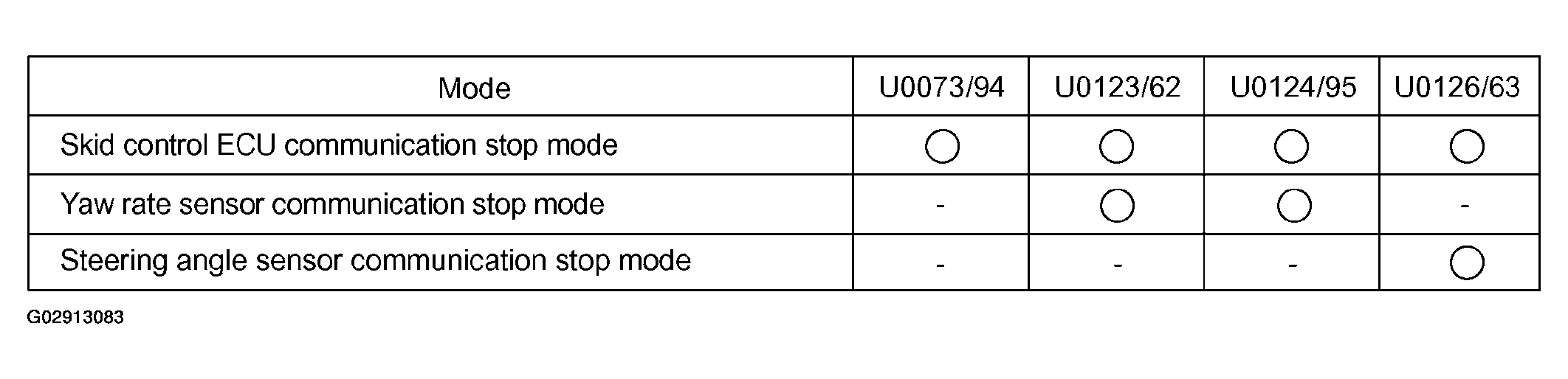

Fig 1: DTCs Combination Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

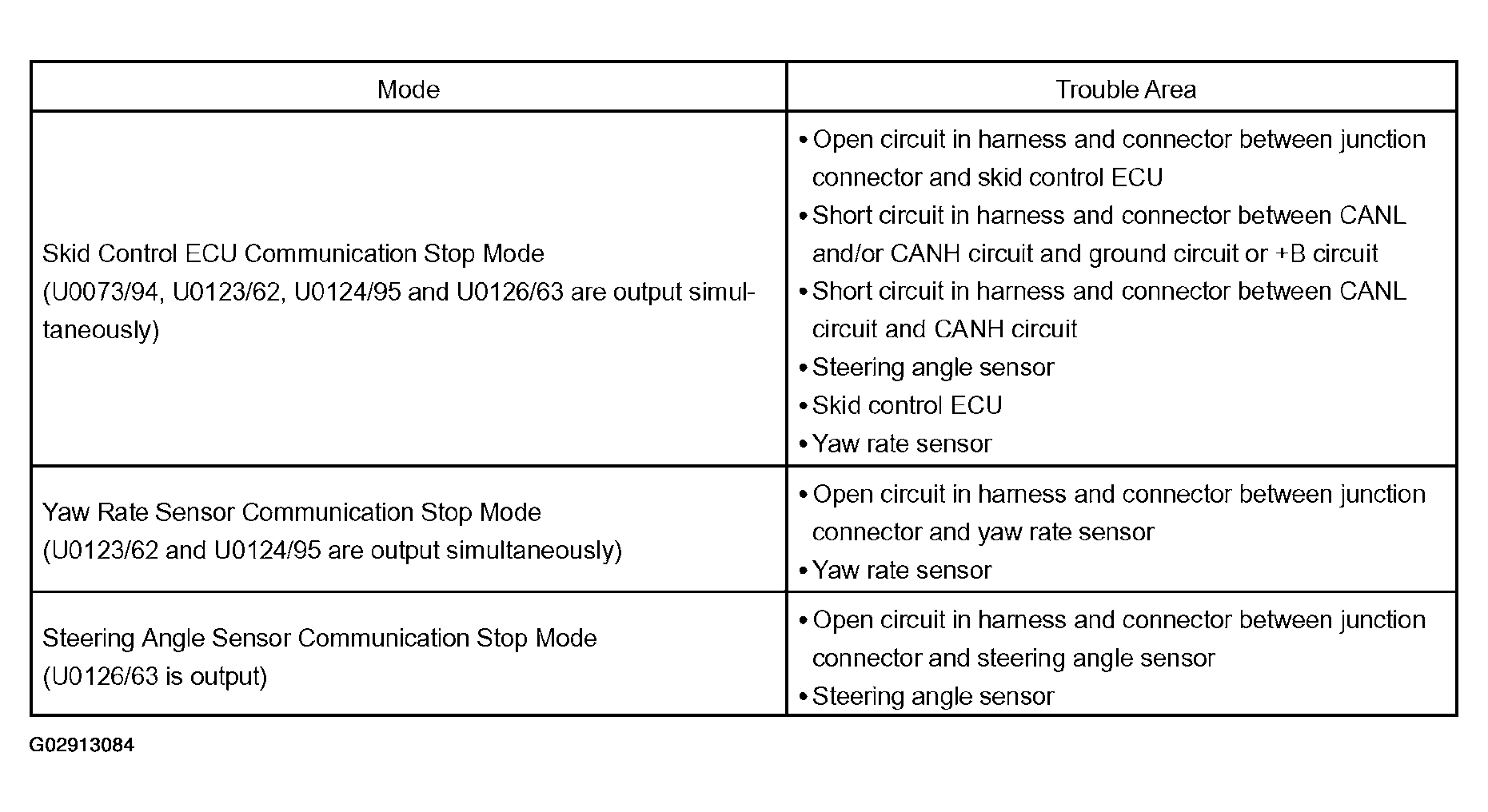

Fig 2: DTCs Combination Mode & Suspected Areas Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
