Section 485 (Front Fog Light System): Inspection

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT FOG LIGHT SWITCH CONTINUITY

TESTER CONNECTION SPECIFIED CONDITION

Switch Position	Tester Connection	Specified Condition
OFF	2 - 4	No continuity
ON	2 - 4	Continuity

If the continuity is not as specified, replace the switch.

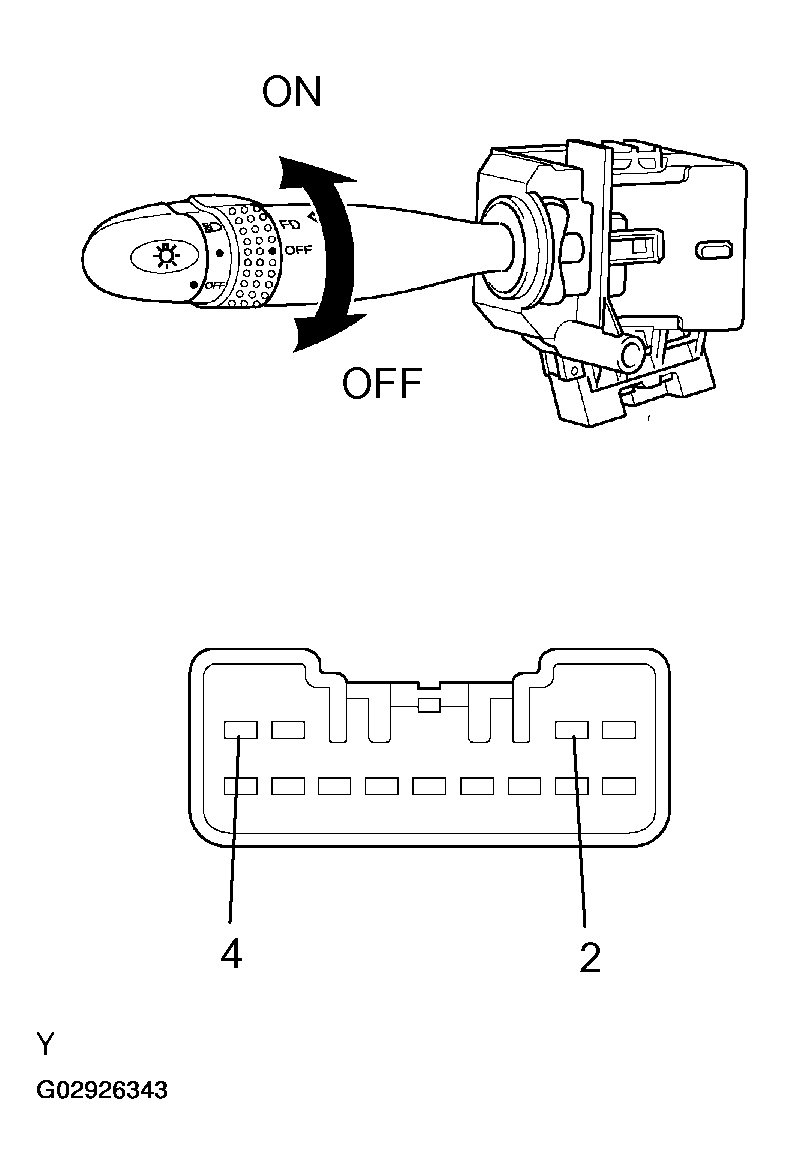

Fig 1: Locating Front Fog Light Switch Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT FRONT FOG LIGHT RELAY CONTINUITY

TESTER CONNECTION & SPECIFIED CONDITION

Tester Connection	Specified Condition
3 - 5	No continuity
3 - 5	Continuity (When battery voltage is applied to terminals 1 and 2)

If the continuity is not as specified, replace the relay.

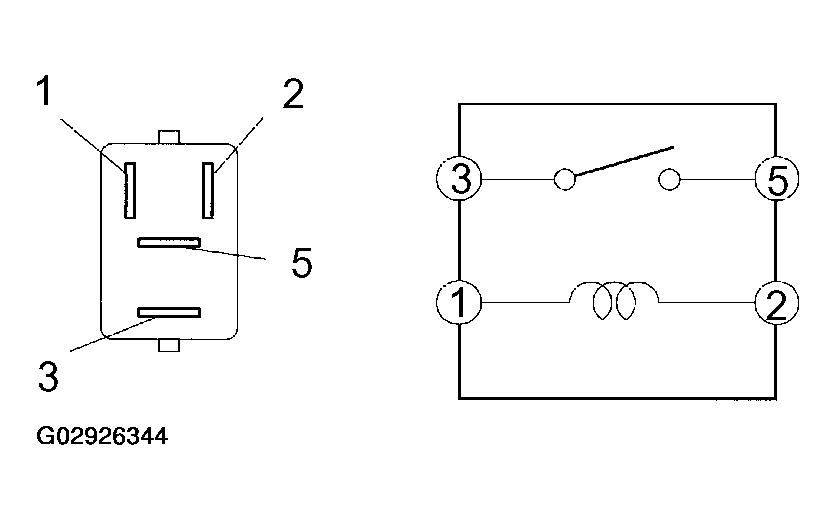

Fig 2: Checking Front Fog Light Relay Continuity
