Power Windows Do Not Operate At All: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

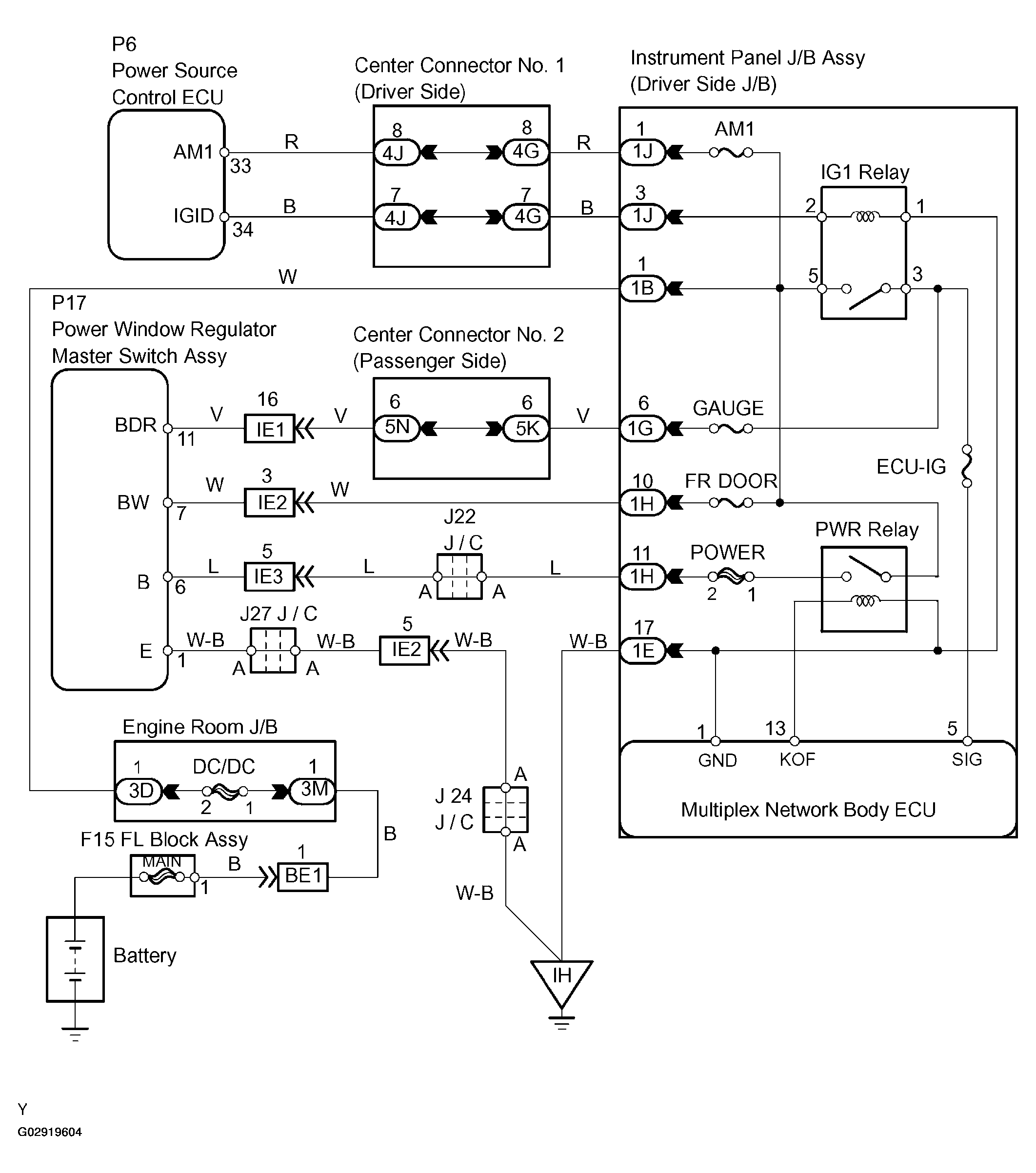

Fig 1: Wiring Diagram-Power Window
G02919604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
