Set On

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. CONNECT CHARGING HOSE TO MANIFOLD GAUGE SET

    Tighten the nuts by hand.

    CAUTION: Do not connect the wrong hoses.
  2. CONNECT QUICK DISCONNECT ADAPTERS TO CHARGING HOSES

    Tighten the nuts by hand.

  3. CLOSE BOTH HAND VALVES OF MANIFOLD GAUGE SET
  4. REMOVE CAPS FROM SERVICE VALVES ON REFRIGERANT LINES

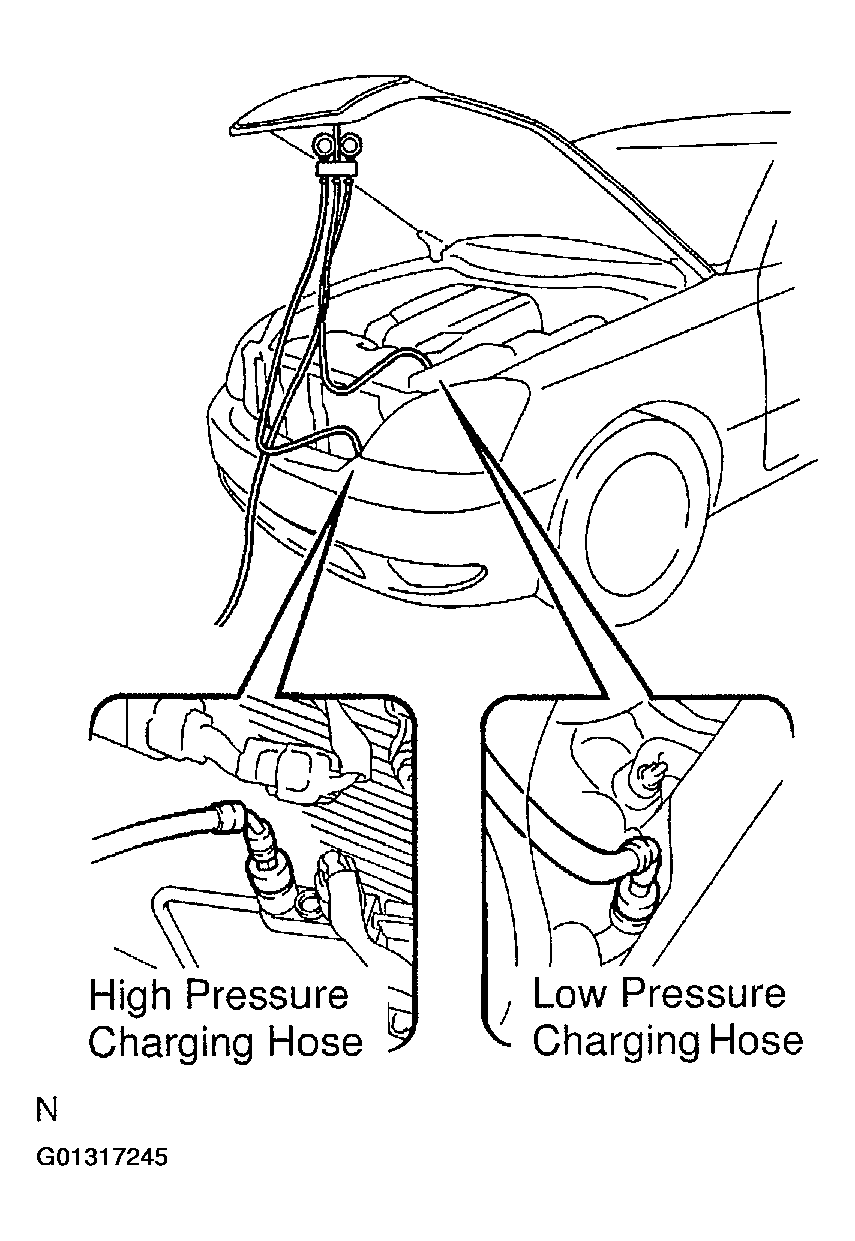

    Fig 1: Connecting Manifold Gauge Set Low & High Pressure Charging Hoses
    G01317245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT QUICK DISCONNECT ADAPTERS TO SERVICE VALVES

    HINT:

    Push the quick disconnect adapter onto the service valve, slide, then slide the sleeve of the quick disconnect adapter downward to lock it.

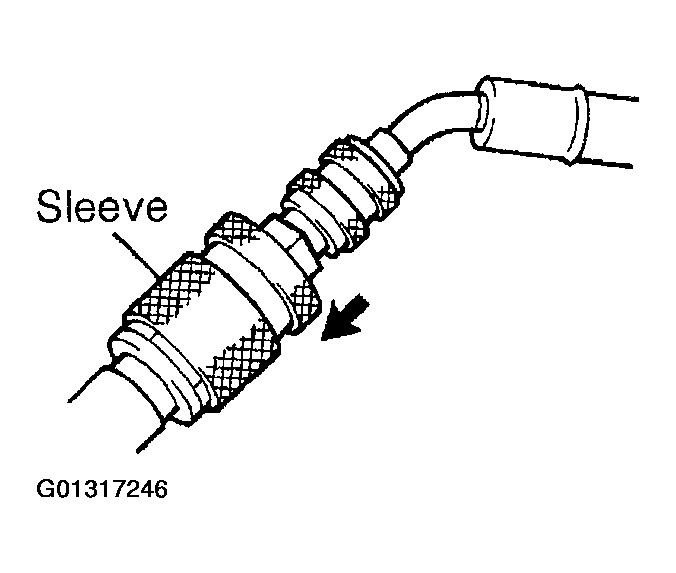

    Fig 2: Connecting Quick Disconnect Adapter To Service Valve
    G01317246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
