Terminals Of Ecu

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

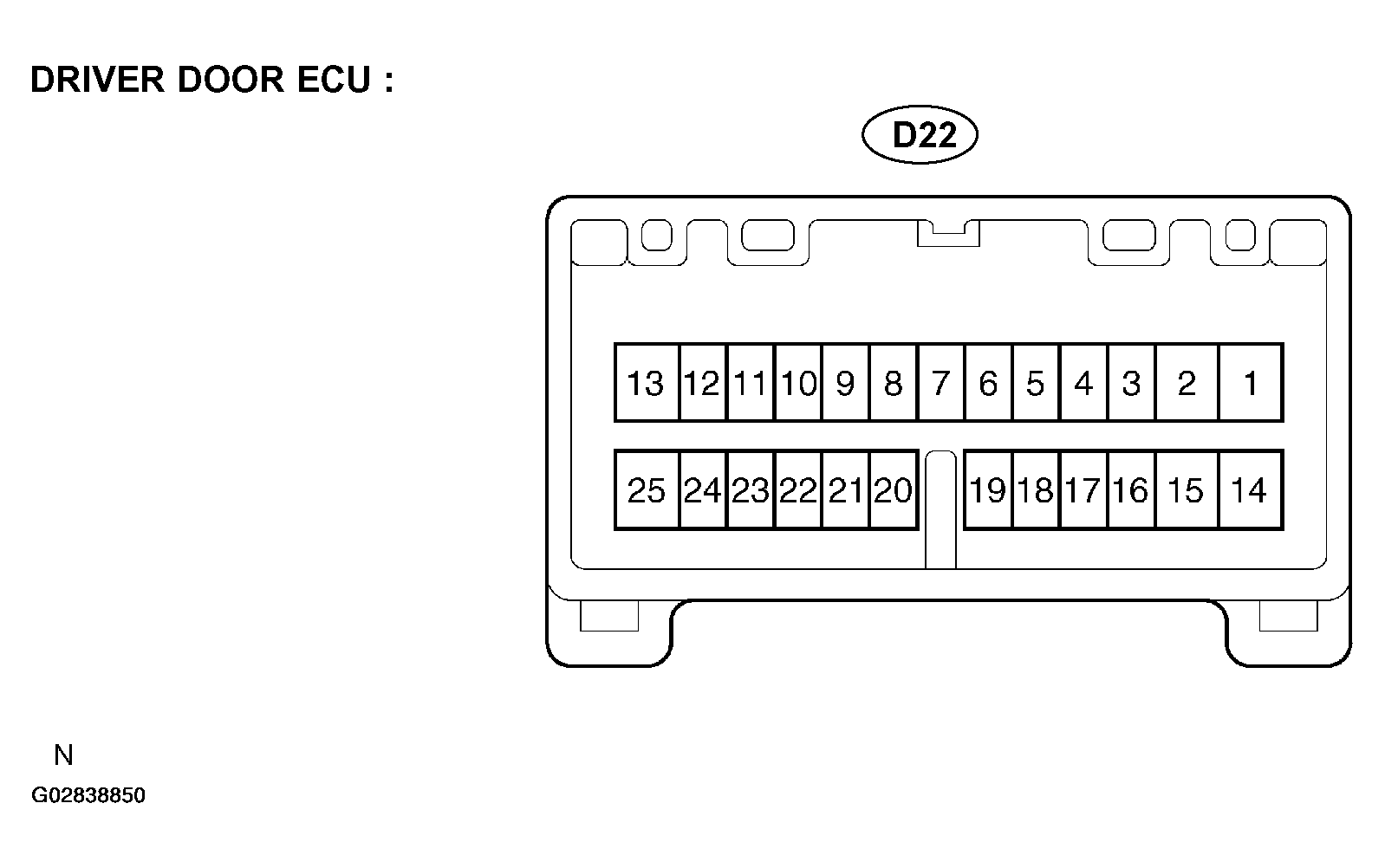

Fig 1: Identifying Terminals Of ECU - Driver Door ECU
G02838850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

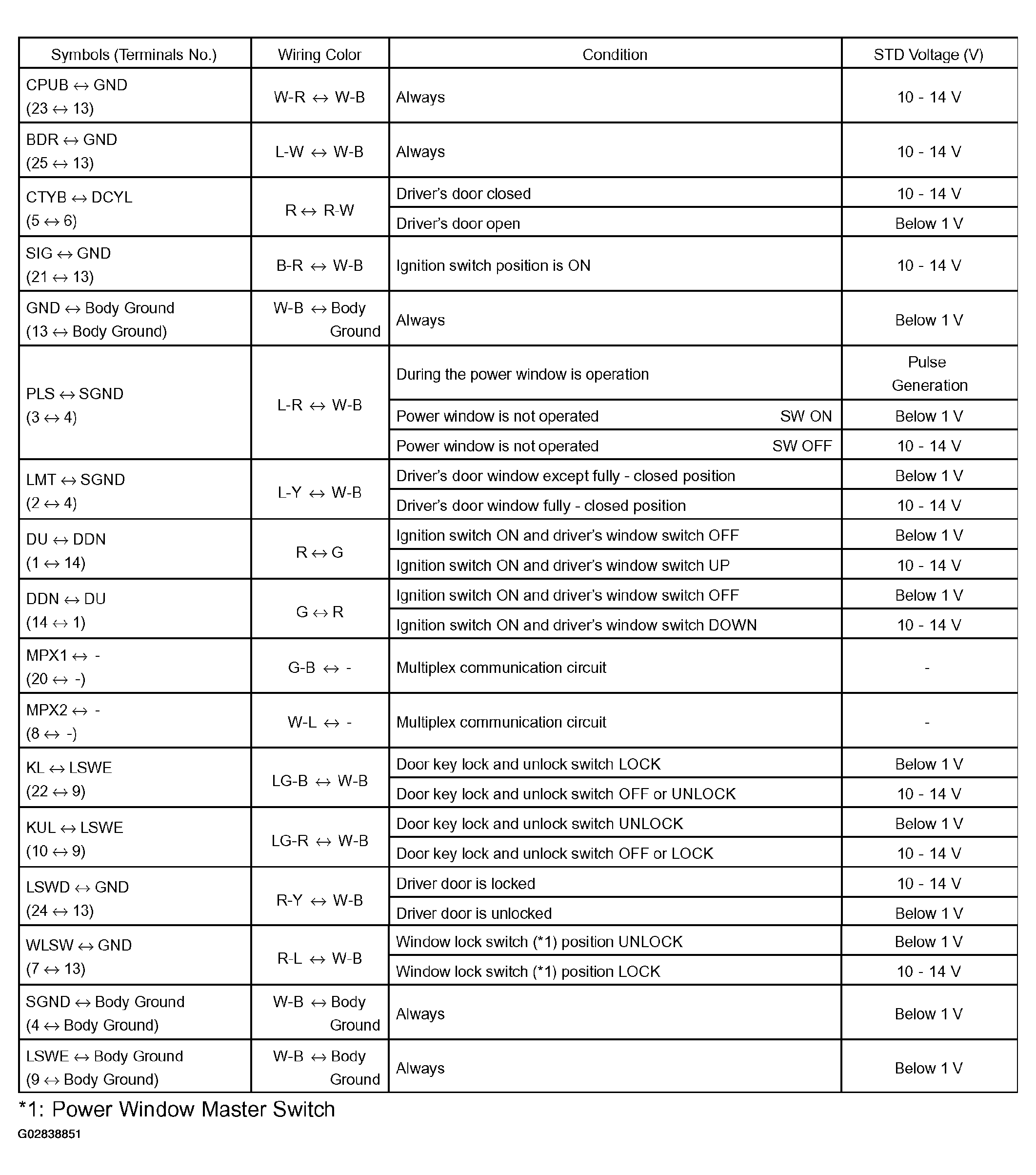

Fig 2: Terminals Specification Chart
G02838851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
