Section 595 (Air Conditioner Control Assembly (Center Cluster Integration)): Disassembly

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE A/C AMPLIFIER

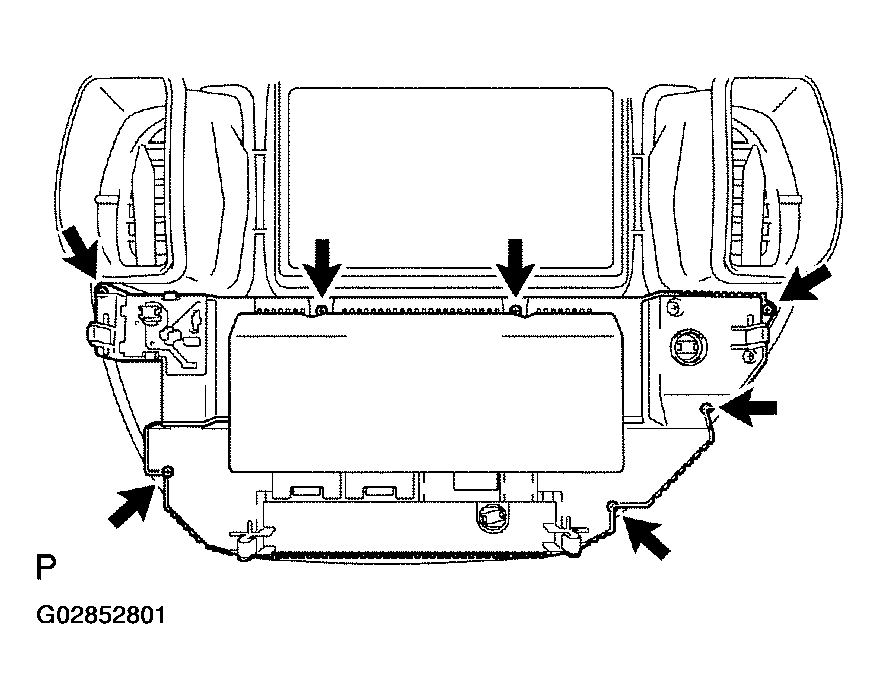

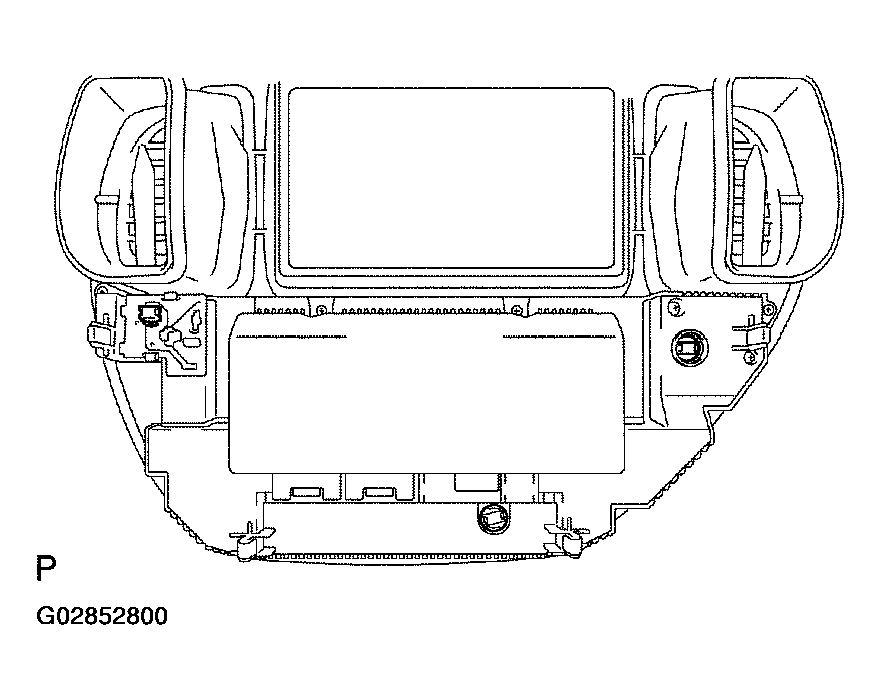

1. Remove the 7 screws and heater control housing.

  Fig 2: Removing Heater Control Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

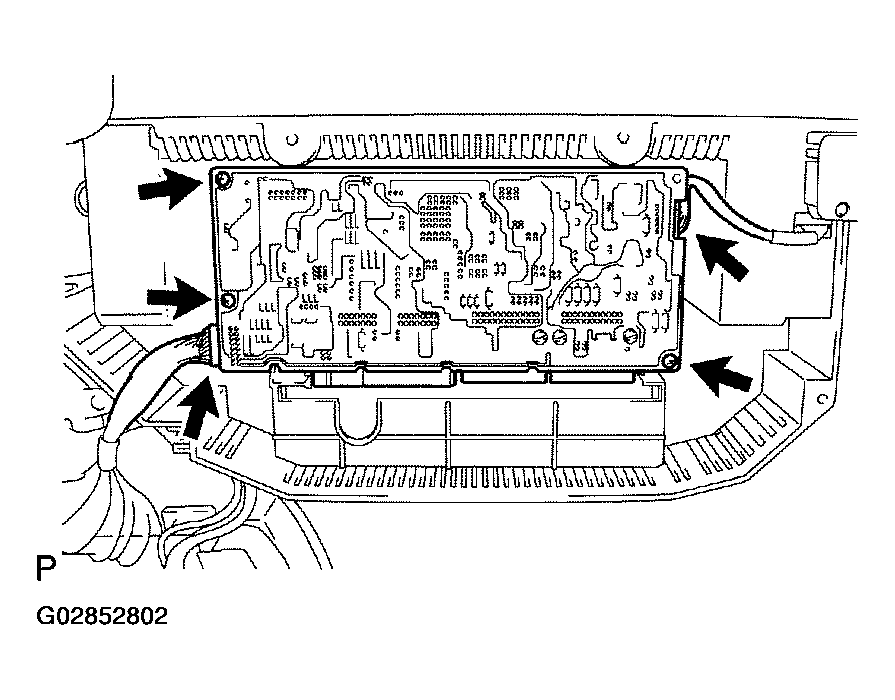

2. Disconnect the 2 connectors.
3. Remove the 3 screws and A/C amplifier.

  Fig 3: Disconnecting A/C Amplifier Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

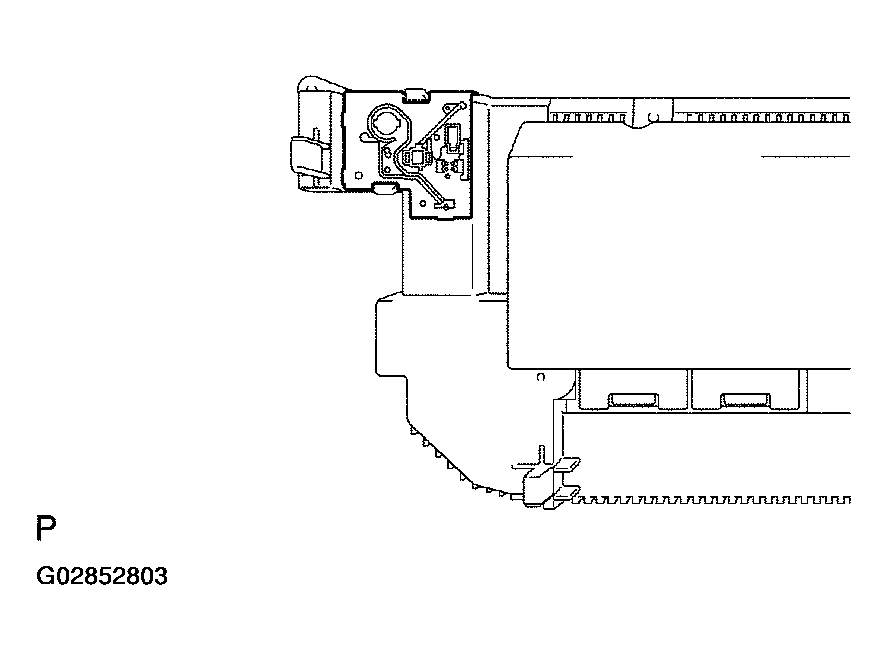

4. Remove the passenger seat belt indicator circuit.

  Fig 4: Removing Passenger Seat Belt Indicator Circuit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INTEGRATION CIRCUIT

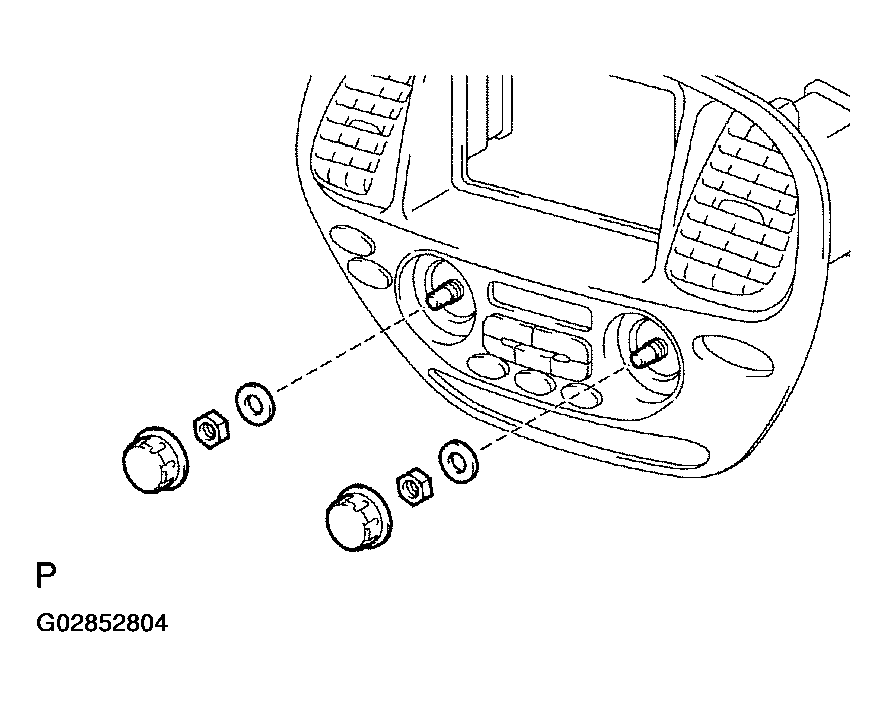

1. Remove the 2 knobs.
2. Remove the 2 nuts and 2 washers.

  Fig 5: Removing Knobs, Nuts & Washers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

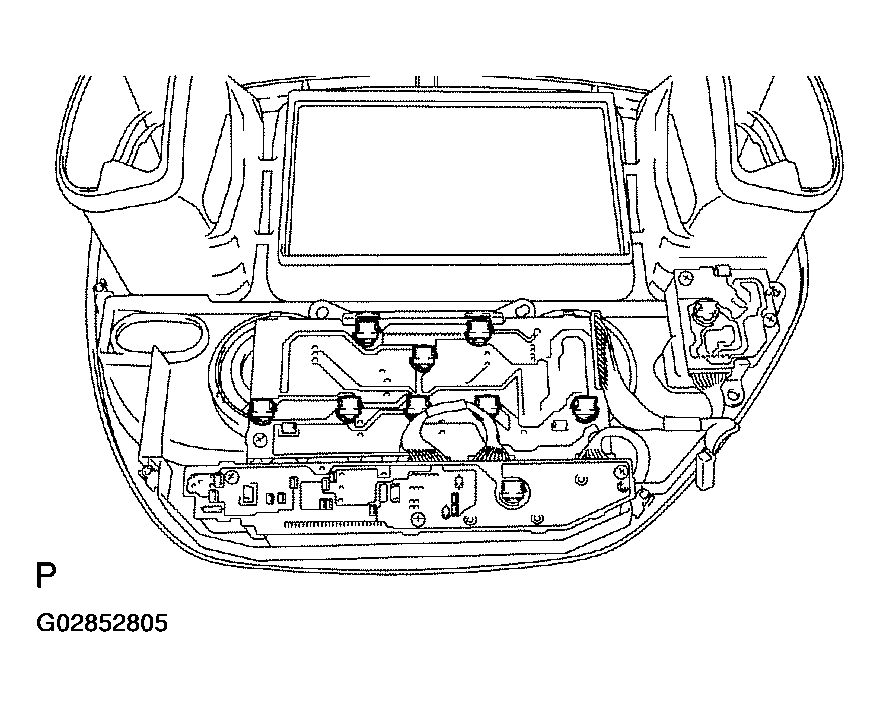

3. Remove the 8 bulbs.

  Fig 6: Removing Bulbs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

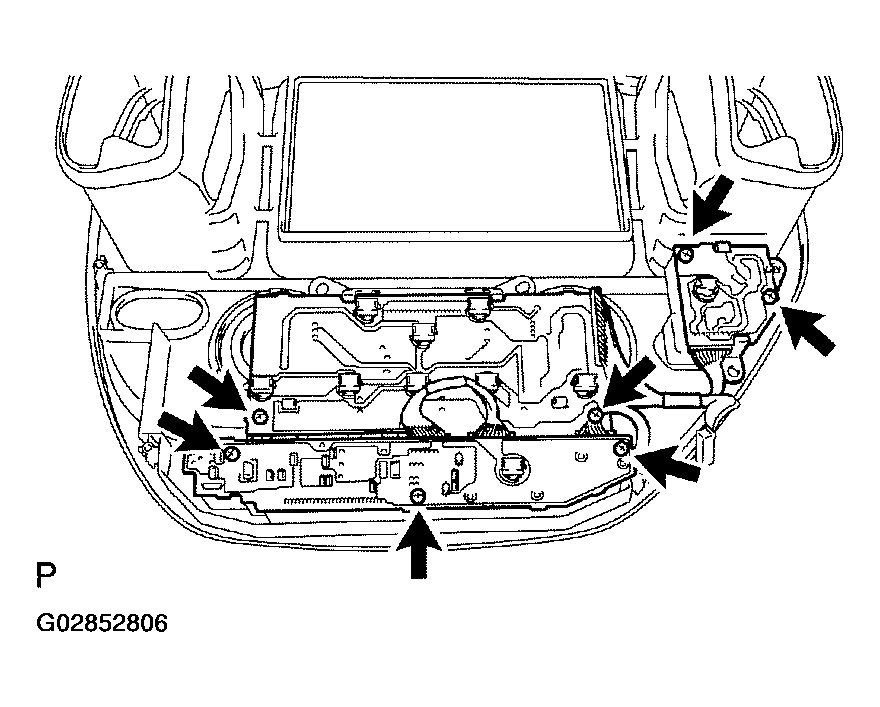

4. Remove the 7 screws and integration circuit.

  Fig 7: Removing Integration Circuit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
