Inspect Bulb

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Apply the tester as shown in the illustration to the test for continuity.

If continuity exists, replace the heater control.

If no continuity exists, replace the bulb.

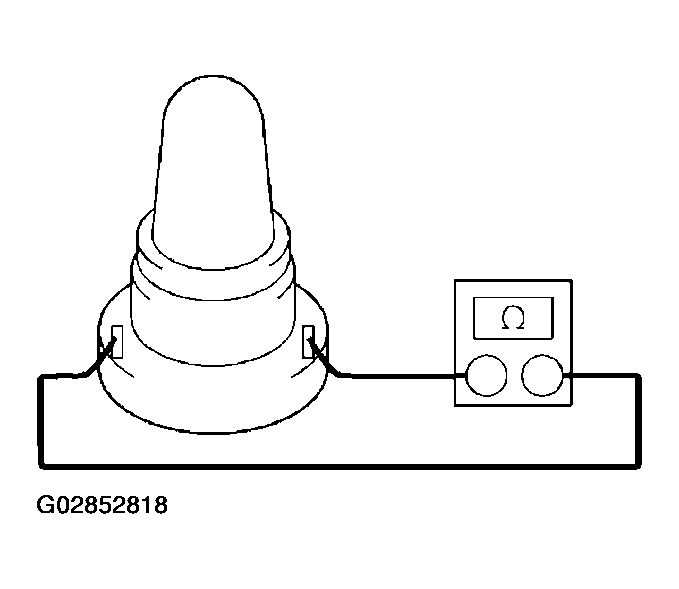

Fig 1: Inspecting Bulb
G02852818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
