Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

RADIO RECEIVER ASSY (SEPARATE TYPE AMPLIFIER)

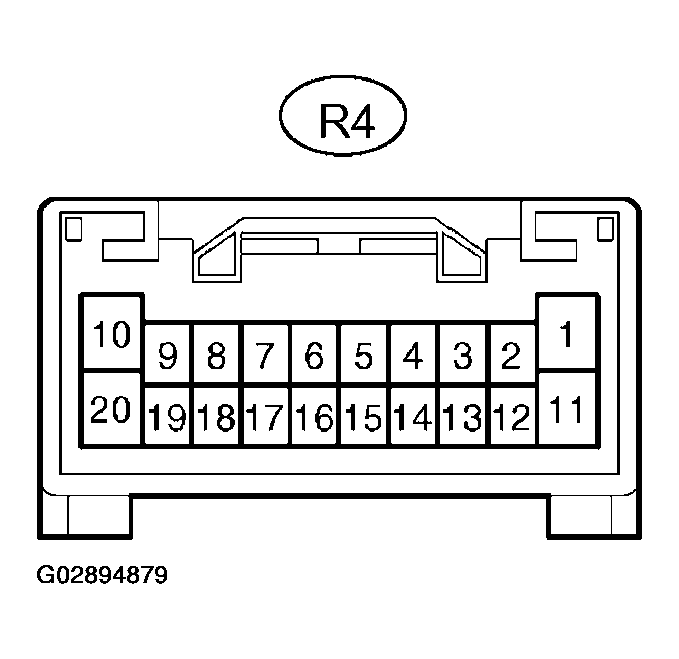

Fig 1: Identifying Radio Receiver Assy (Separate Type Amplifier) Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

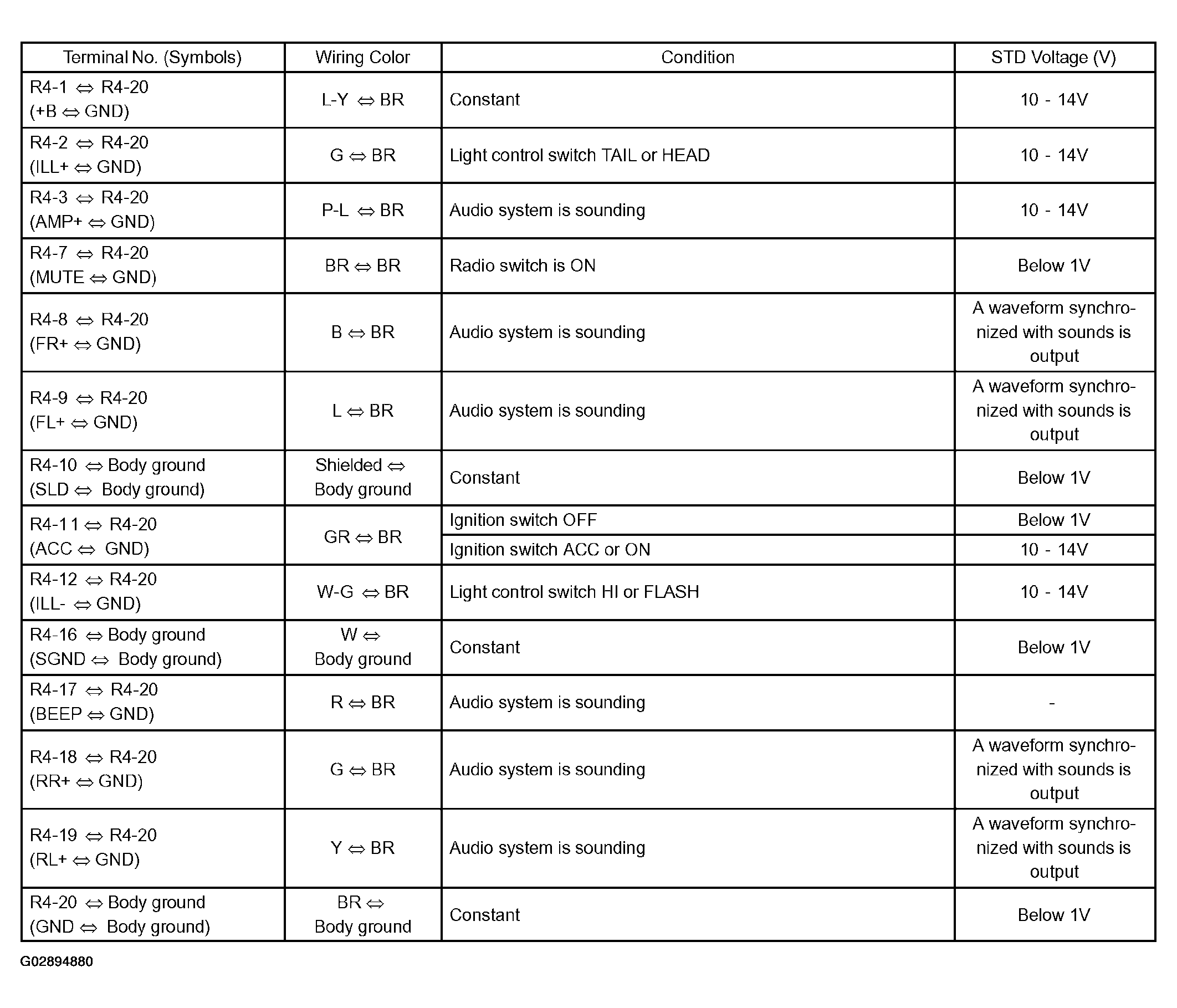

Fig 2: Terminals Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RADIO RECEIVER ASSY (BUILT-IN TYPE AMPLIFIER)

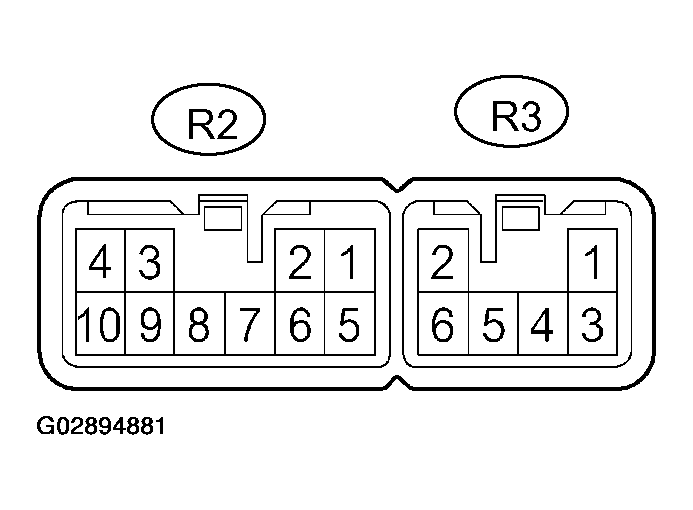

Fig 3: Identifying Radio Receiver Assy (Built-In Type Amplifier) Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

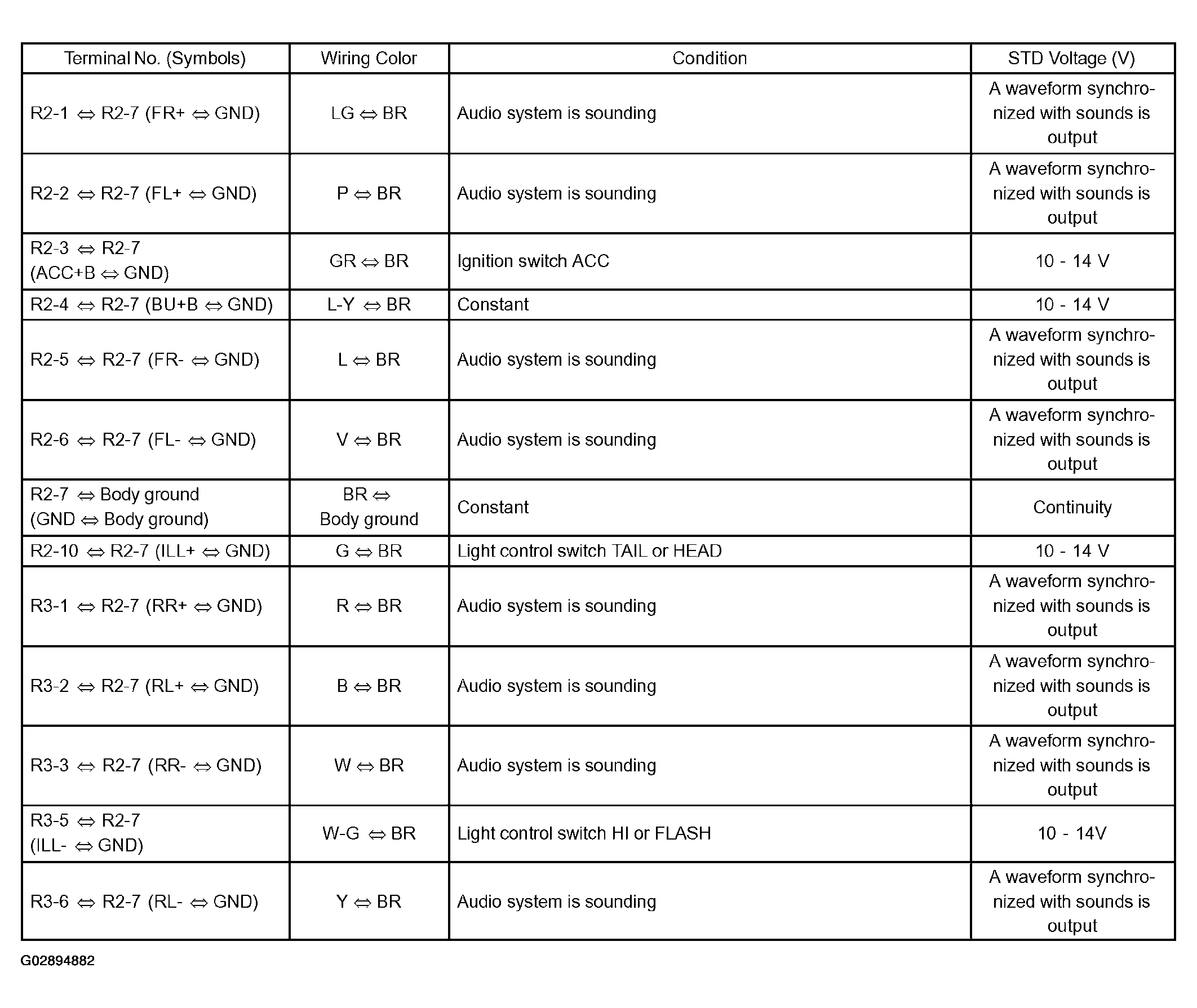

Fig 4: Terminals Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER

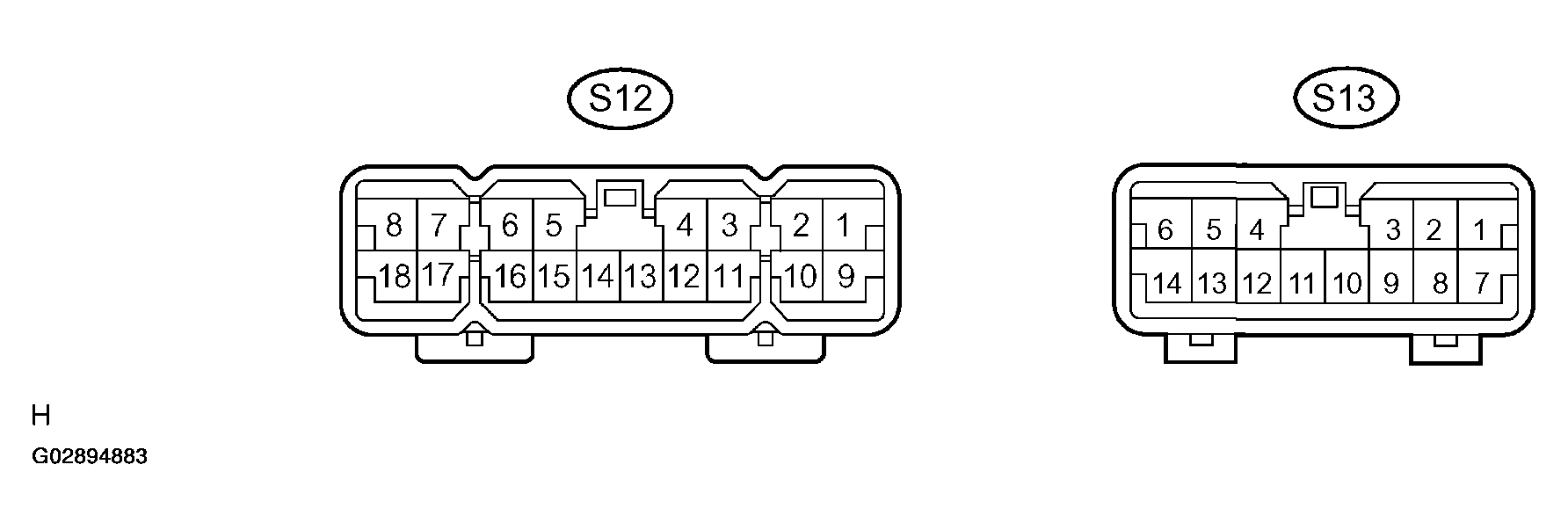

Fig 5: Identifying Stereo Component Amplifier Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

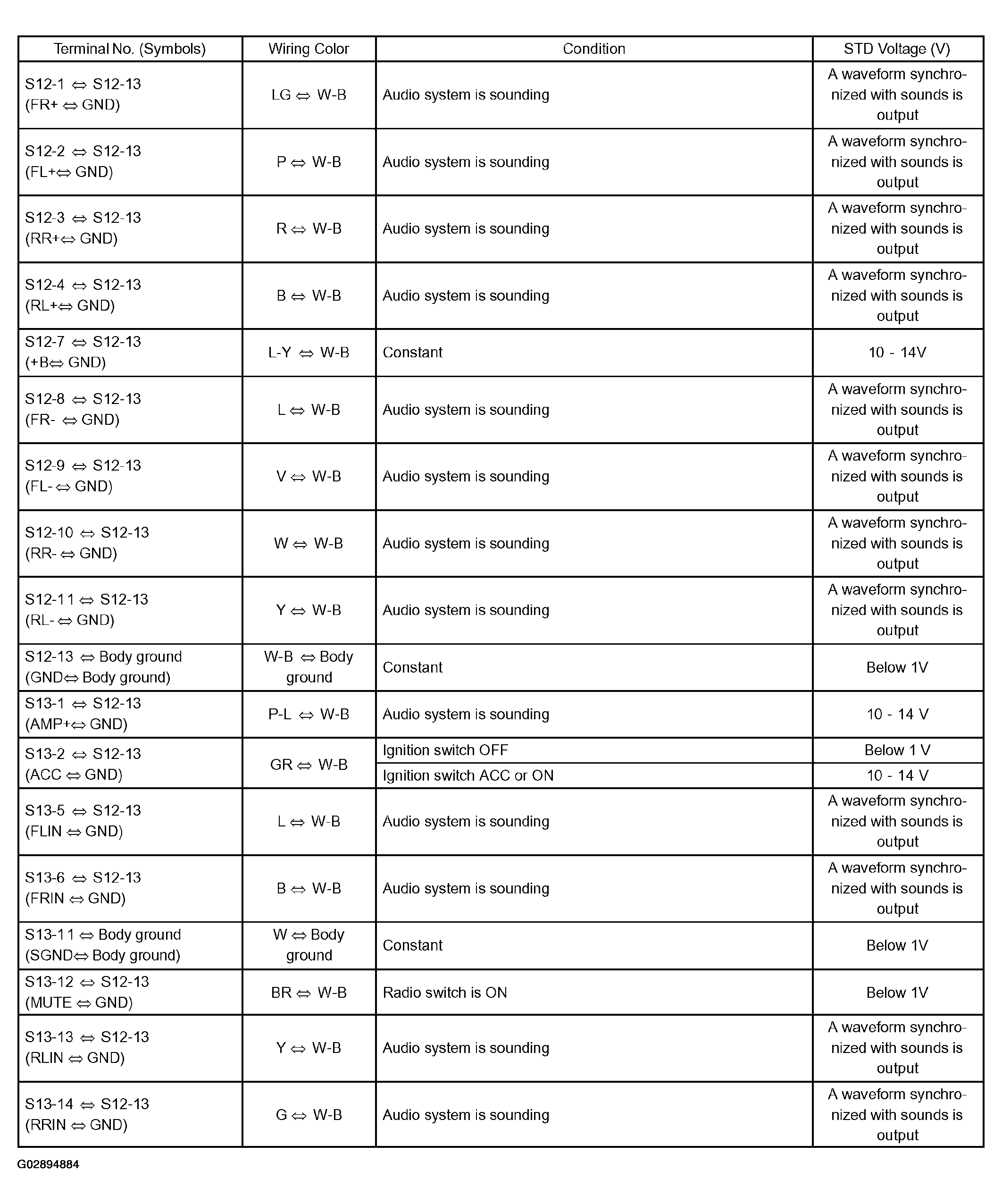

Fig 6: Terminals Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
