Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK RADIO AND NAVIGATION ASSY

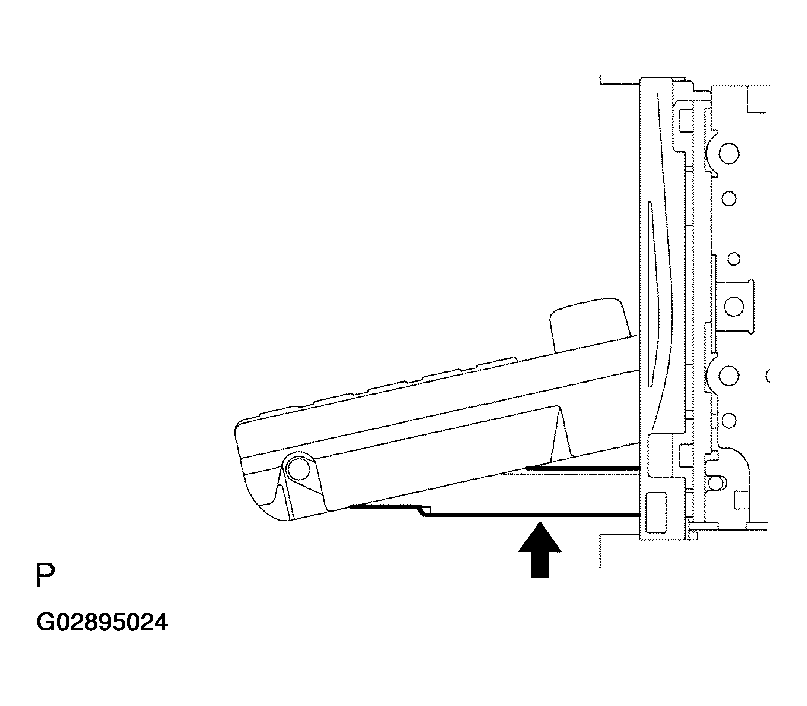

- Check for foreign matter or obstructions caught in the moving parts of the panel.
Standard: No obstruction or foreign matter found.
- NG: REMOVE ANY OBSTRUCTION OR FOREIGN MATTER FOUND
- OK: Go to next step.
- Check for foreign matter or obstructions caught in the moving parts of the panel.
- OPERATION CHECK
- Check if the navigation and audio system function properly.
Standard: Navigation and audio system function properly.
- OK: REPLACE RADIO AND NAVIGATION ASSY (SEE REPLACEMENT )
- NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (see PROBLEM SYMPTOMS TABLE )
- Check if the navigation and audio system function properly.
