Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT RADIO RECEIVER ASSY

Disconnect the radio receiver assy connector R12.

Measure the resistance according to the value (s) in the table below.

Standard:

TERMINALS RESISTANCE

Tester connection	Condition	Specified condition
REV - Body ground	Ignition switch to ON. Shift lever is moved to R position.	10 to 14 V
REV - Body ground	Ignition switch to ON. Shift lever is moved to except R position.	Below 1 V

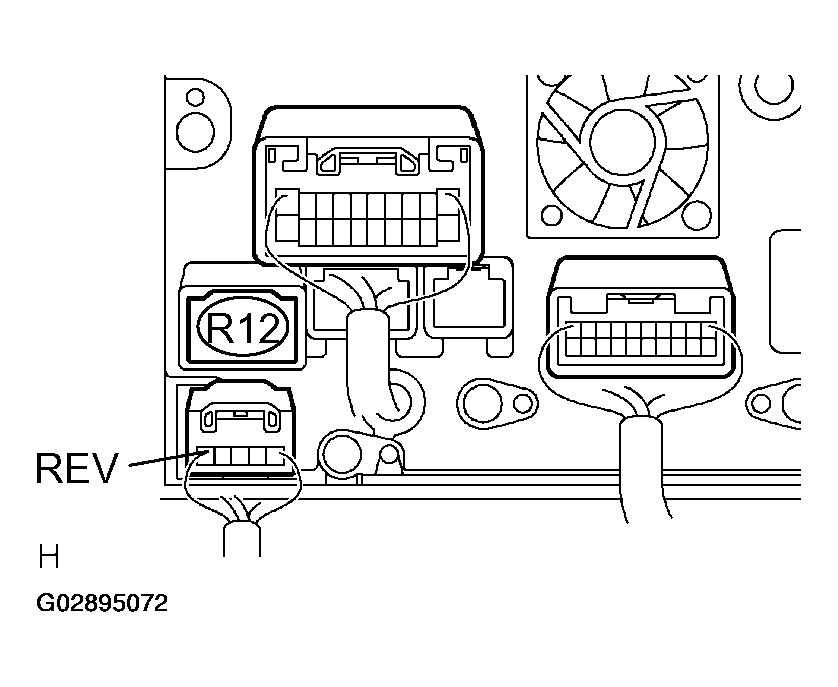

Fig 1: Disconnecting Radio Receiver Assy Connector R12

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE RADIO RECEIVER ASSY
NG: Go to next step.

CHECK HARNESS AND CONNECTOR (RADIO AND NAVIGATION ASSY - PARK/NEUTRAL POSITION SWITCH ASSY)

Disconnect the connector from the radio and navigation assy R12 and park/neutral position switch assy A4.

Measure the resistance according to the value (s) in the table below.

Standard:

TERMINALS RESISTANCE

Tester connection	Condition	Specified condition
REV - A4-1	Always	Below 1 Ω
REV - Body ground	Always	10 k Ω or higher

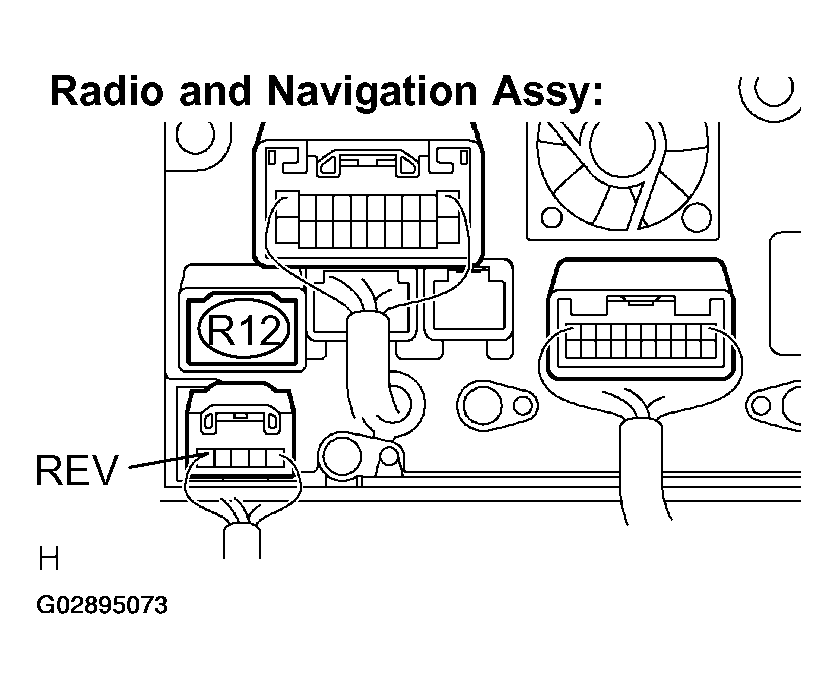

Fig 2: Disconnecting Connector From Radio And Navigation Assy R12

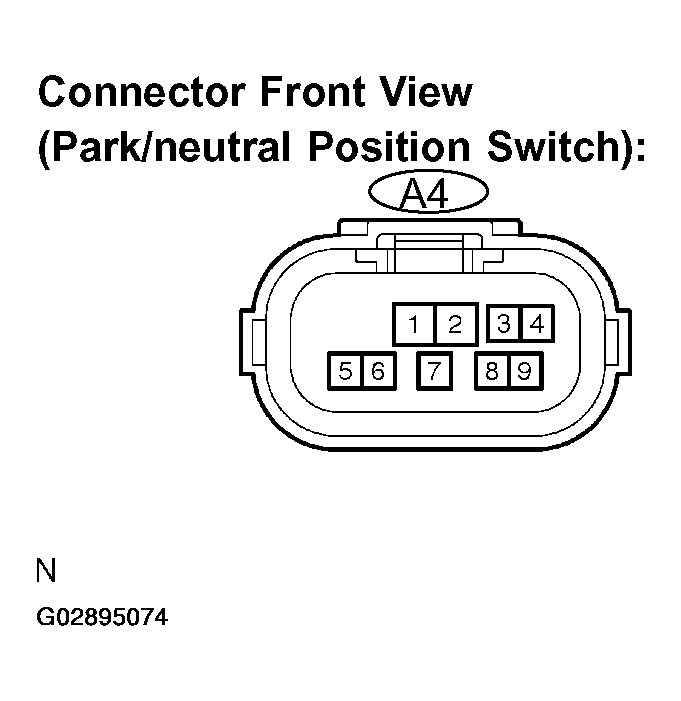

Fig 3: Disconnecting Connector From Park/Neutral Position Switch Assy A4

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE RADIO AND NAVIGATION ASSY (SEE REPLACEMENT )
