Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

RADIO AND NAVIGATION ASSY

Fig 1: Identifying Radio And Navigation Assy Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

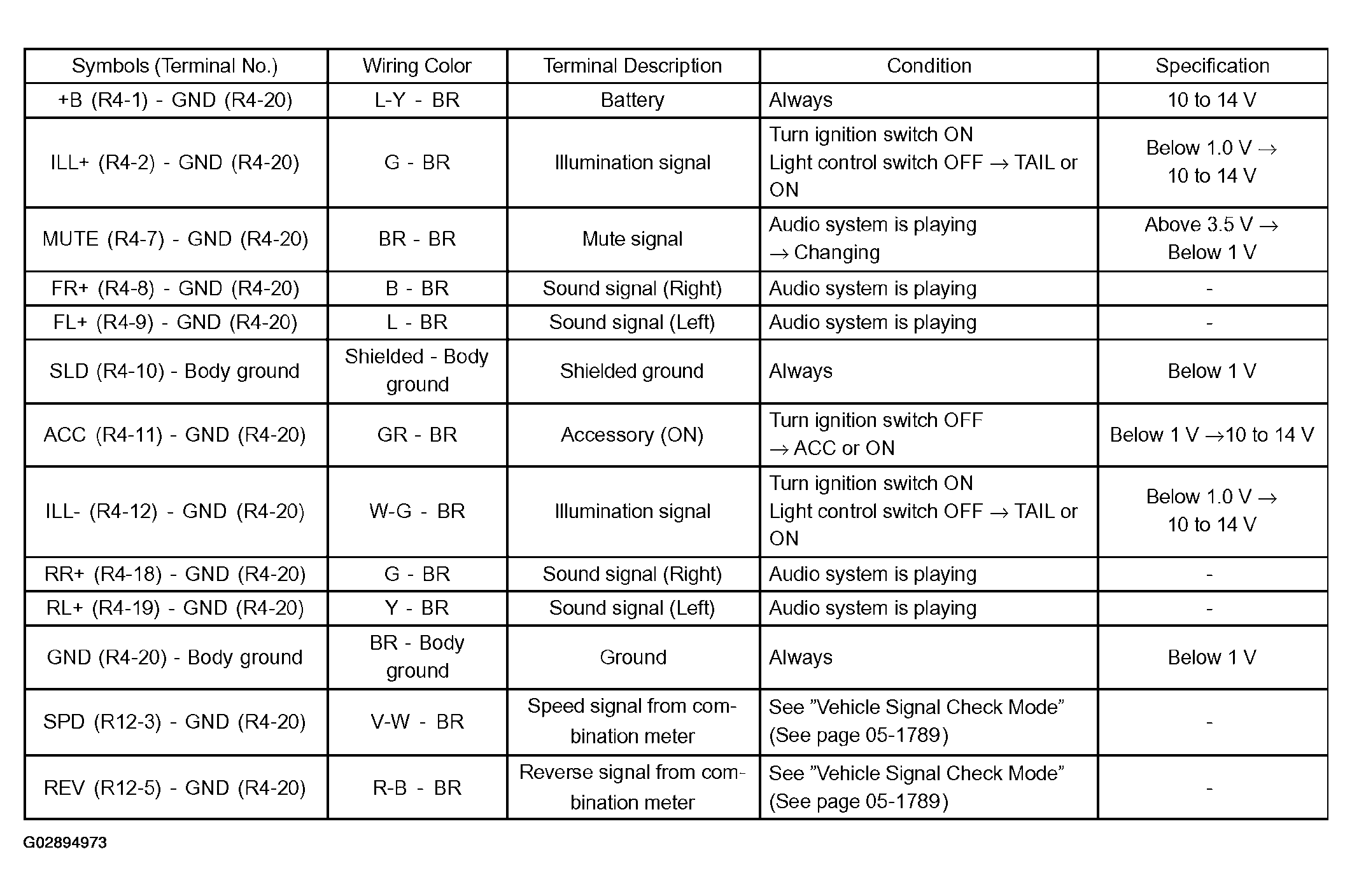

Fig 2: Terminals Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY

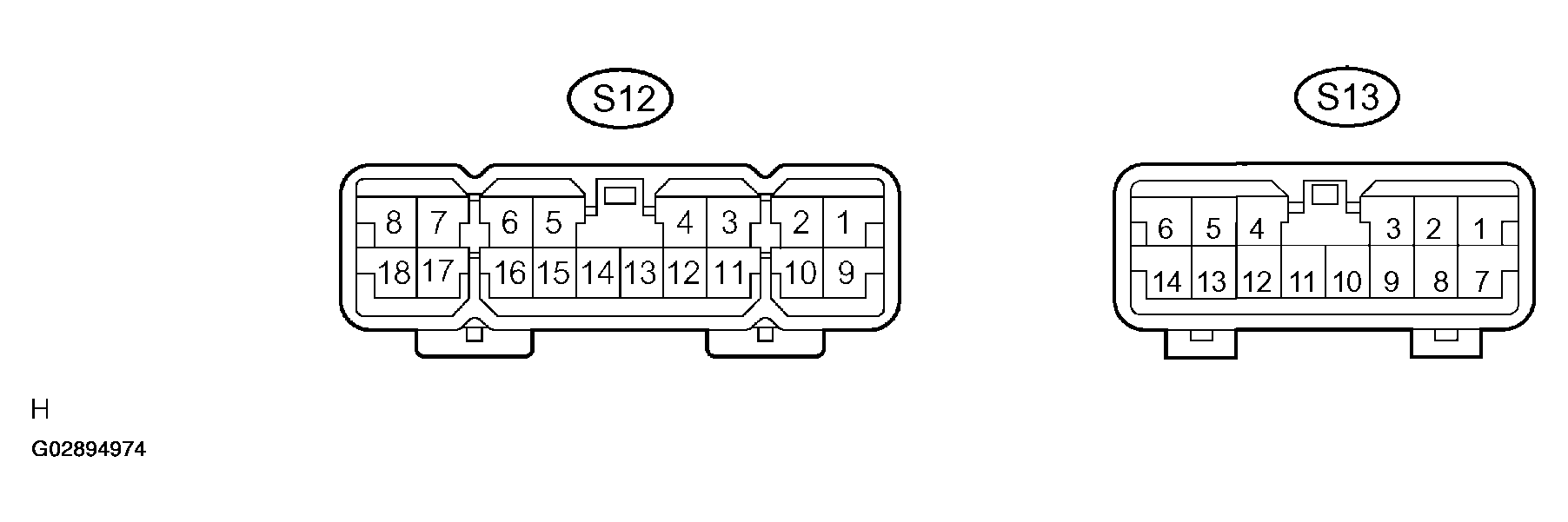

Fig 3: Identifying Stereo Component Amplifier Assy Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

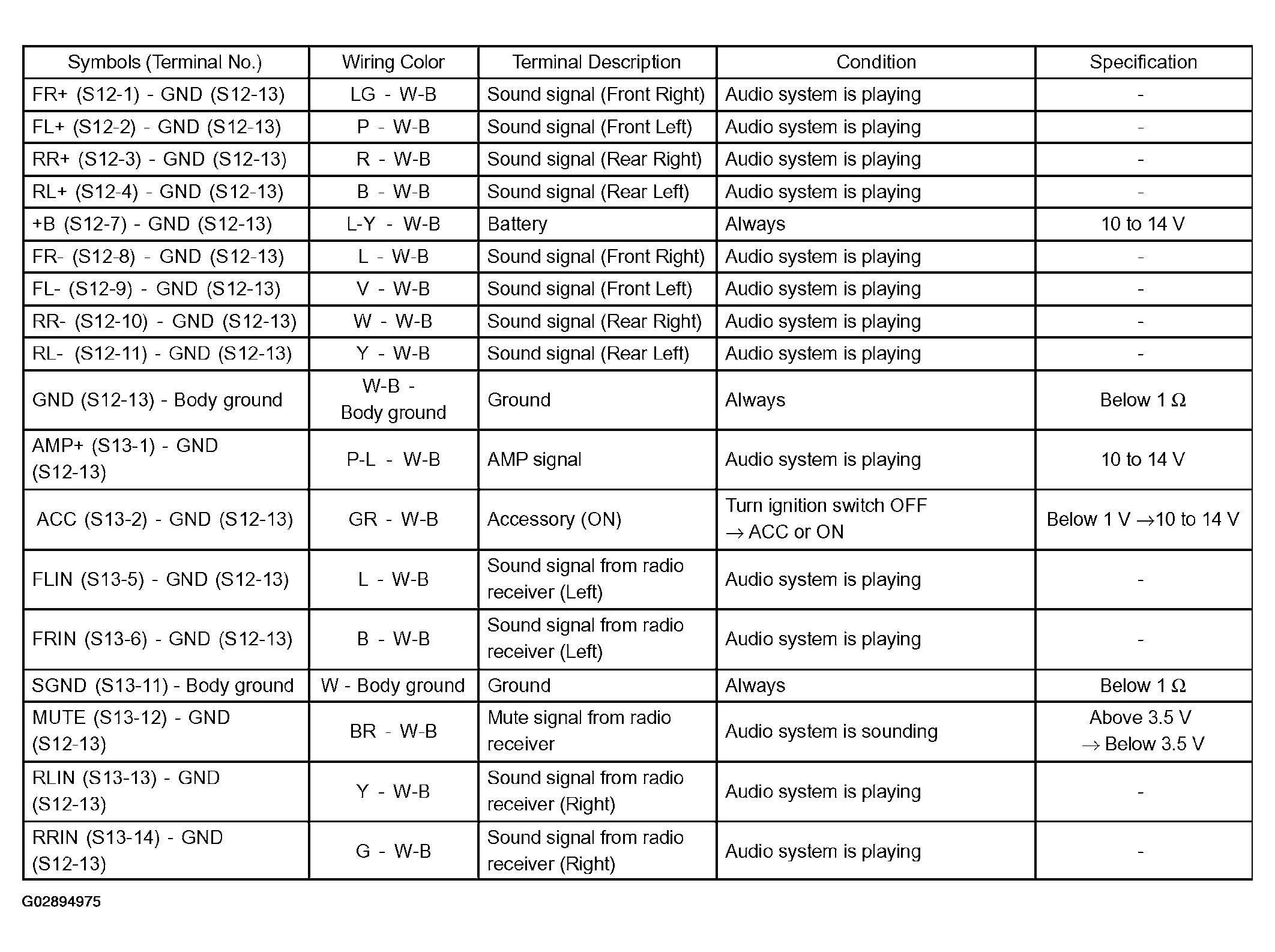

Fig 4: Terminals Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
