Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

CHECK THE MAP DISC
1. Check that the map disc is not deformed or cracked.
  Standard: No deformations or cracks appear on the map disc.

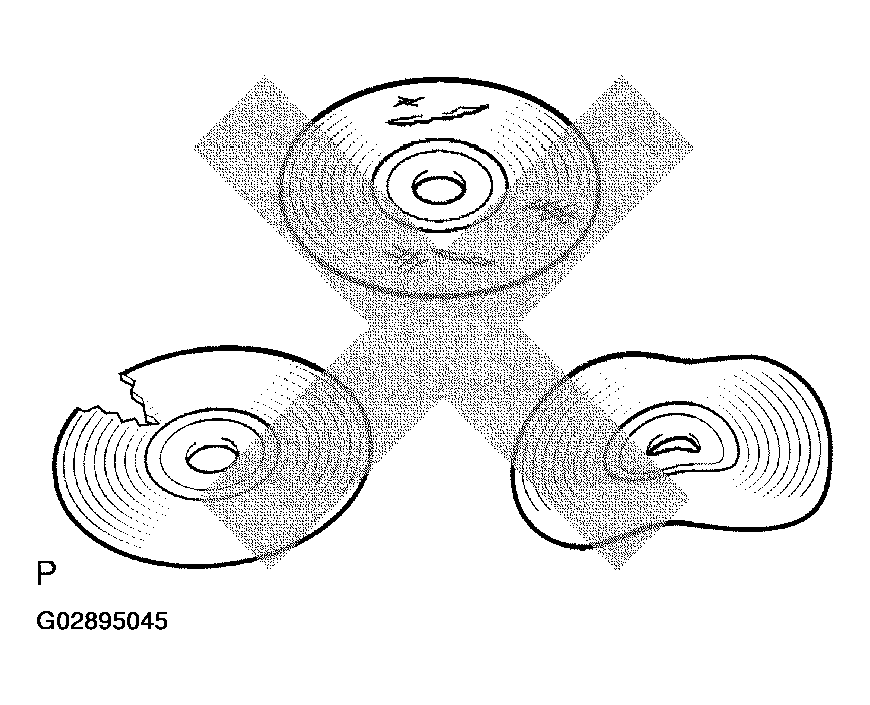

  Fig 1: Identifying MAP DISC Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE THE MAP DISC
2. OK: Go to next step.
CHECK THE MAP DISPLAY
1. Check if a touch scroll can be performed on the map display.
  Standard: Touch scroll can be performed.
1. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (see PROBLEM SYMPTOMS TABLE )
2. OK: Go to next step.
NAVIGATION CHECK MODE (VEHICLE SENSORS CHECK)
1. Enter the "Navigation Check" mode (Vehicle Sensors) (see NAVIGATION CHECK MODE (VEHICLE SENSORS) ).
2. While driving, compare the "SPD" indicator to the reading on the speedometer. Check if these readings are almost the same.
  Standard: The readings are almost the same.

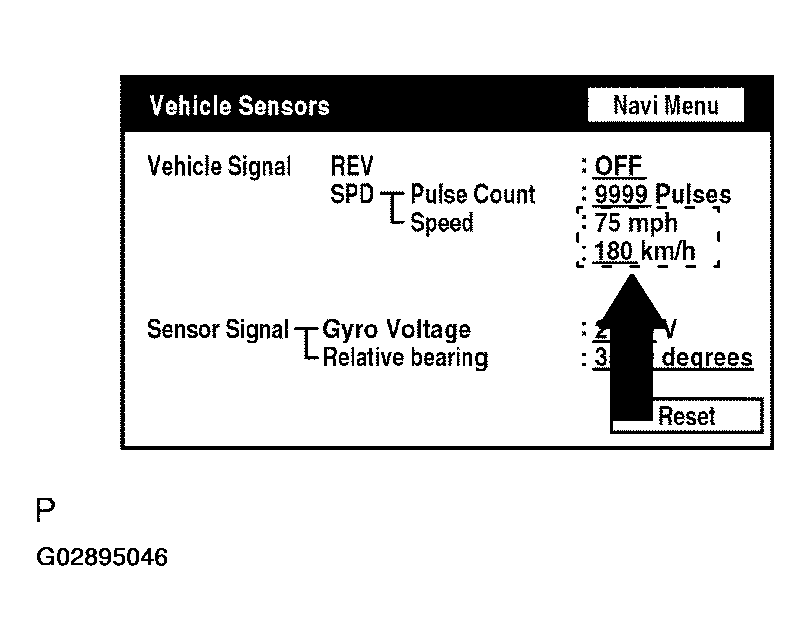

  Fig 2: Navigation Check Mode - Vehicle Sensors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: GO TO "SPEED SIGNAL CIRCUIT" IN THE FLOW CHART (SEE SPEED SIGNAL CIRCUIT )
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (see PROBLEM SYMPTOMS TABLE )
