Check Can Bus Line (Can-L) For Short To B+: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

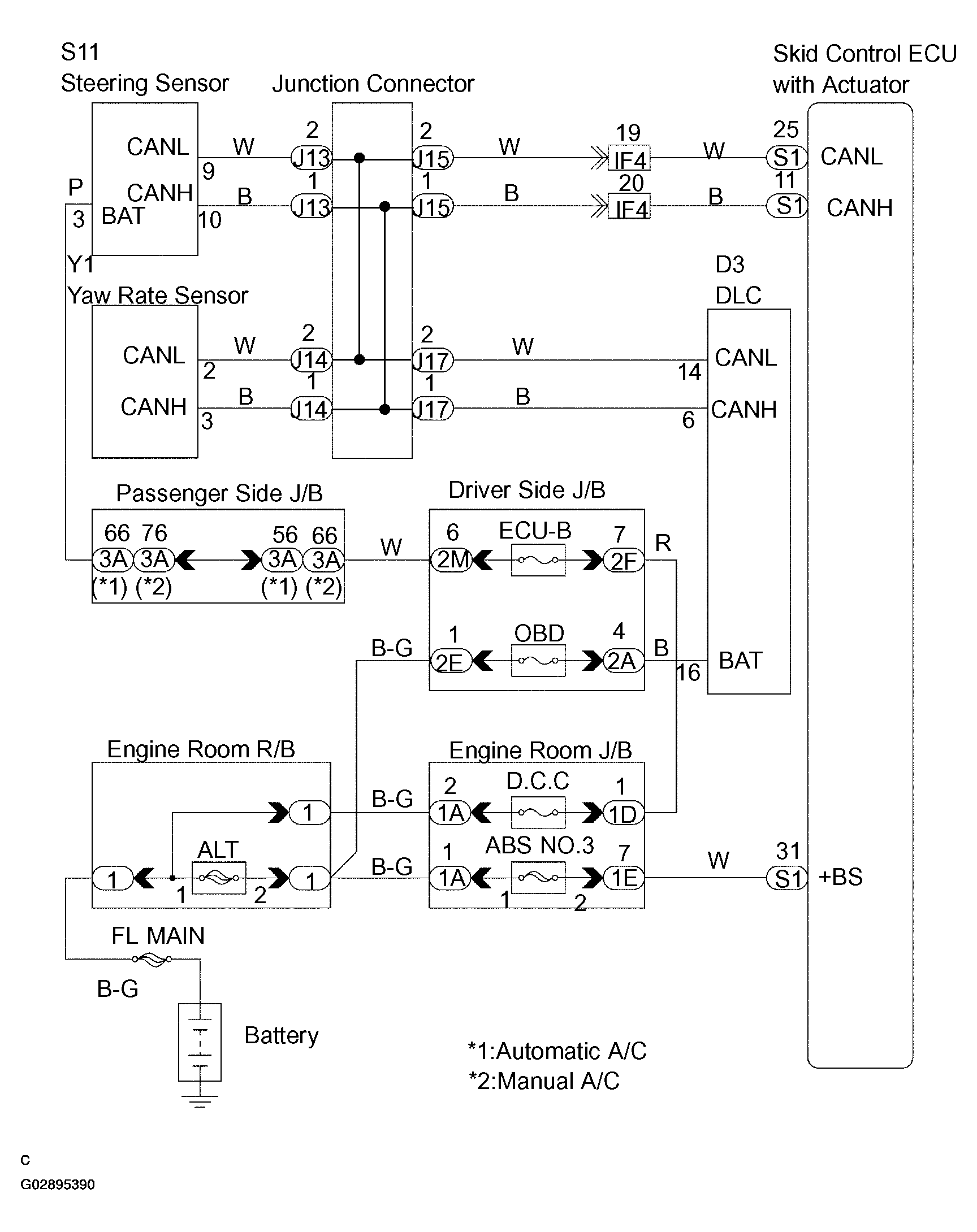

Fig 1: Wiring Diagram - Can Line (CAN-L)
G02895390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
