Circuit Description
WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

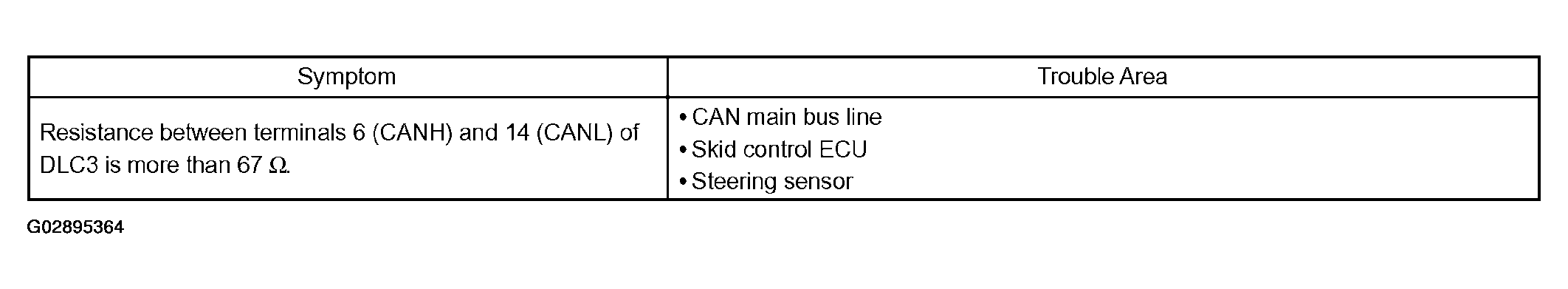

The CAN main bus line and DLC3 sub bus line may have a disconnection when the resistance between terminals (CANH) and 14 (CANL) of the DLC3 is more than 67 Ω.
