Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

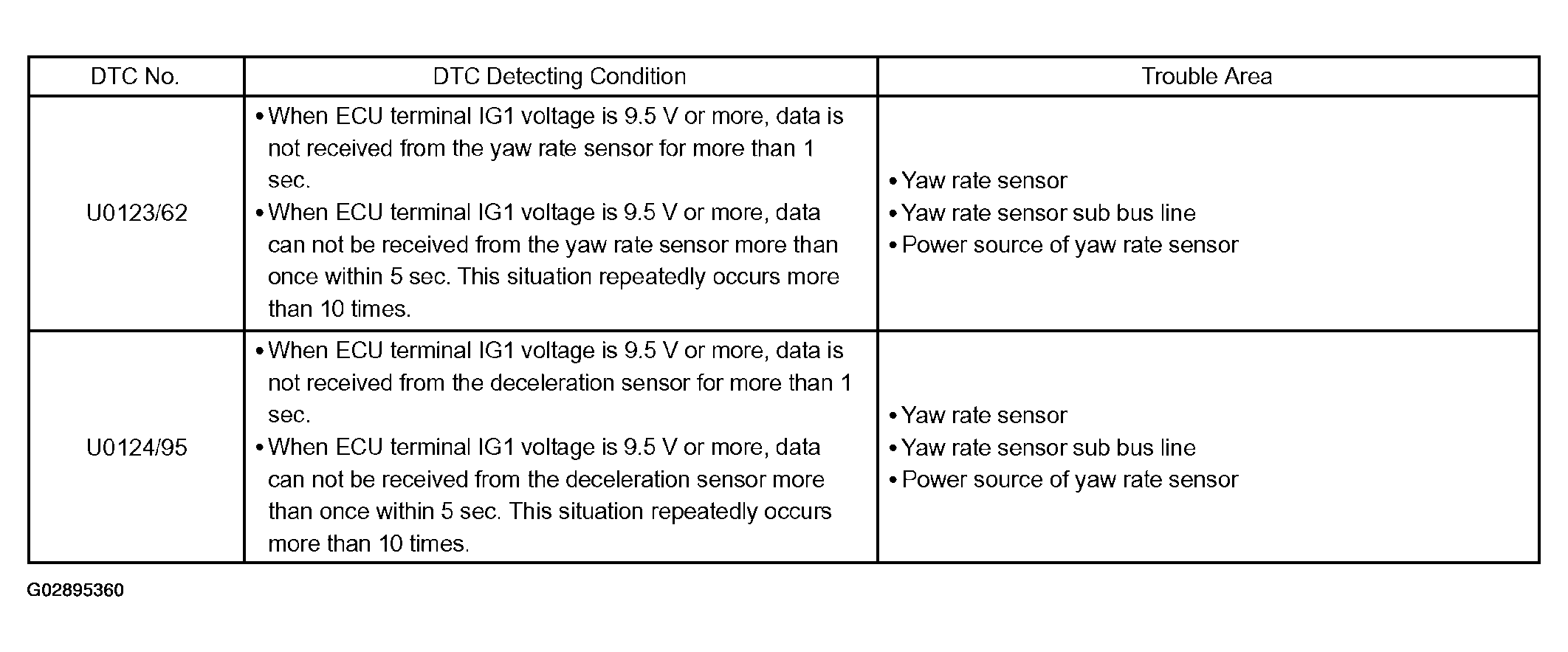

Fig 1: Description - Yaw Rate Sensor Communication
G02895360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
