Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK WIRE HARNESS (IG, ESS)
    1. Measure the resistance according to the value (s) in the table below.

      Standard:

      SPECIFICATION TESTER CONNECTION

      Tester connection Condition Specified value
      S11-2 (ESS) - Body ground Always Below 1 Ω
      NOTE: Perform the measurement from the back of the connector with the connector connected.
    2. Measure the voltage according to the value (s) in the table below.

      Standard:

      SPECIFICATION TESTER CONNECTION

      Tester connection Condition Specified value
      S11-1 (IG1) - Body ground Ignition SW ON 10 to 14 V

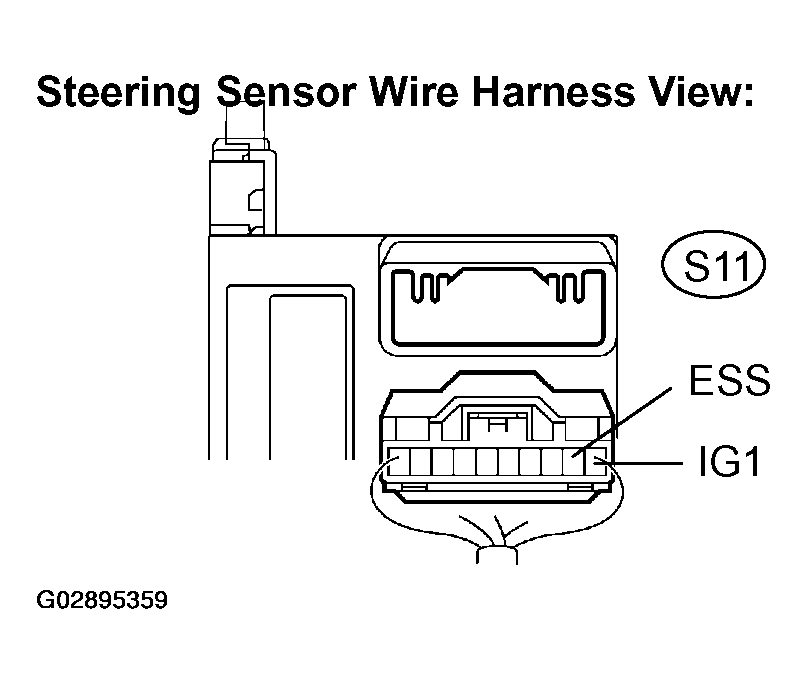

      Fig 1: Checking Wire Harness (IG, ESS)
      G02895359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Perform the measurement from the back of the connector with the connector connected.
    1. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
    2. OK: REPLACE STEERING SENSOR (See  STEERING SENSOR  )
