System Diagram

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

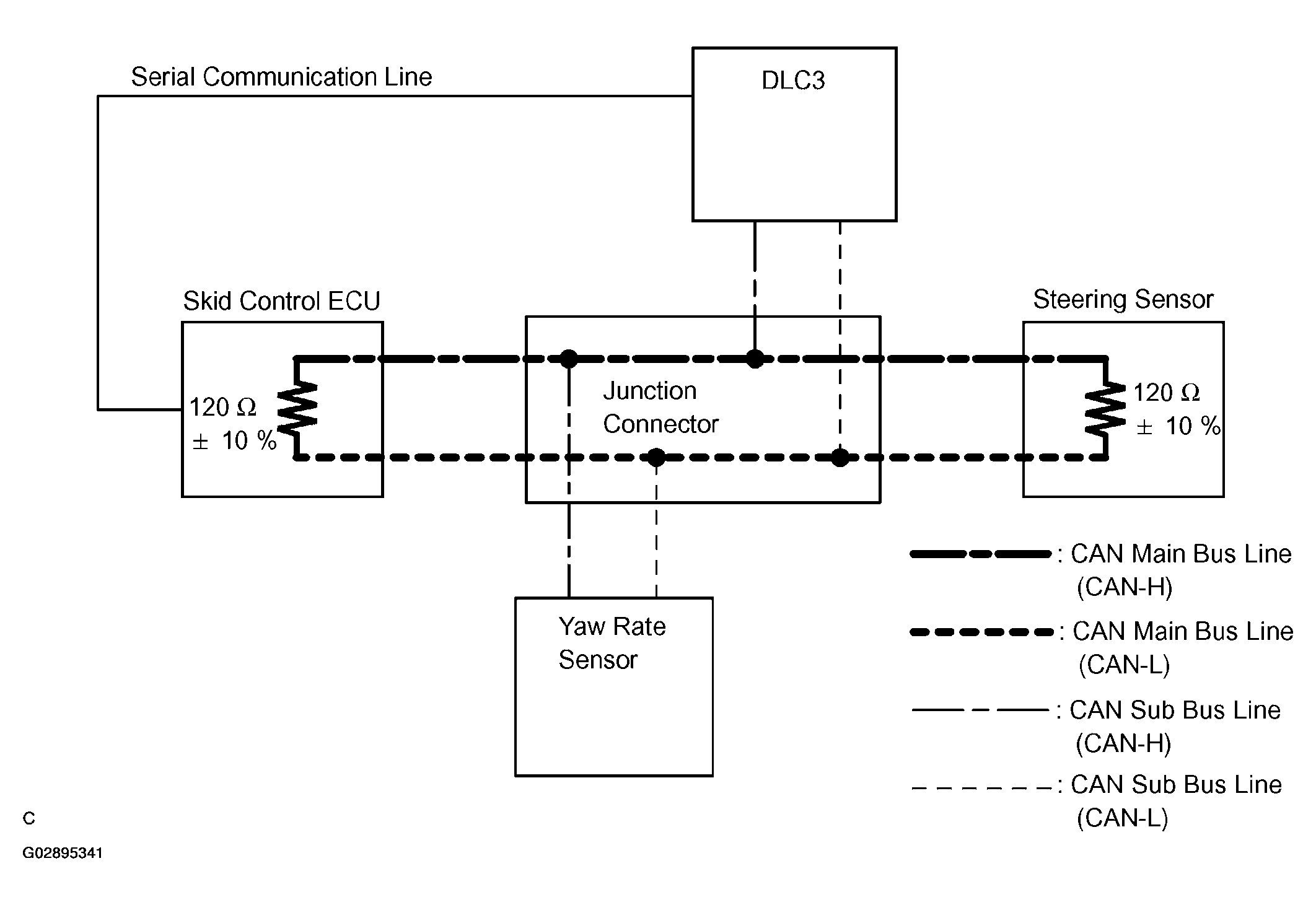

Fig 1: Identifying CAN Communication System Diagram
G02895341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The Skid Control ECU stores DTCs and performs DTC communication by receiving information from the Steering Sensor and Yaw Rate Sensor. These sensors cannot store DTCs or perform DTC communication.
