Steering Pad Switch: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT BATTERY NEGATIVE TERMINAL (see AIR BAG RESTRAINT SYSTEMS )
REMOVE STEERING WHEEL COVER LOWER NO. 2

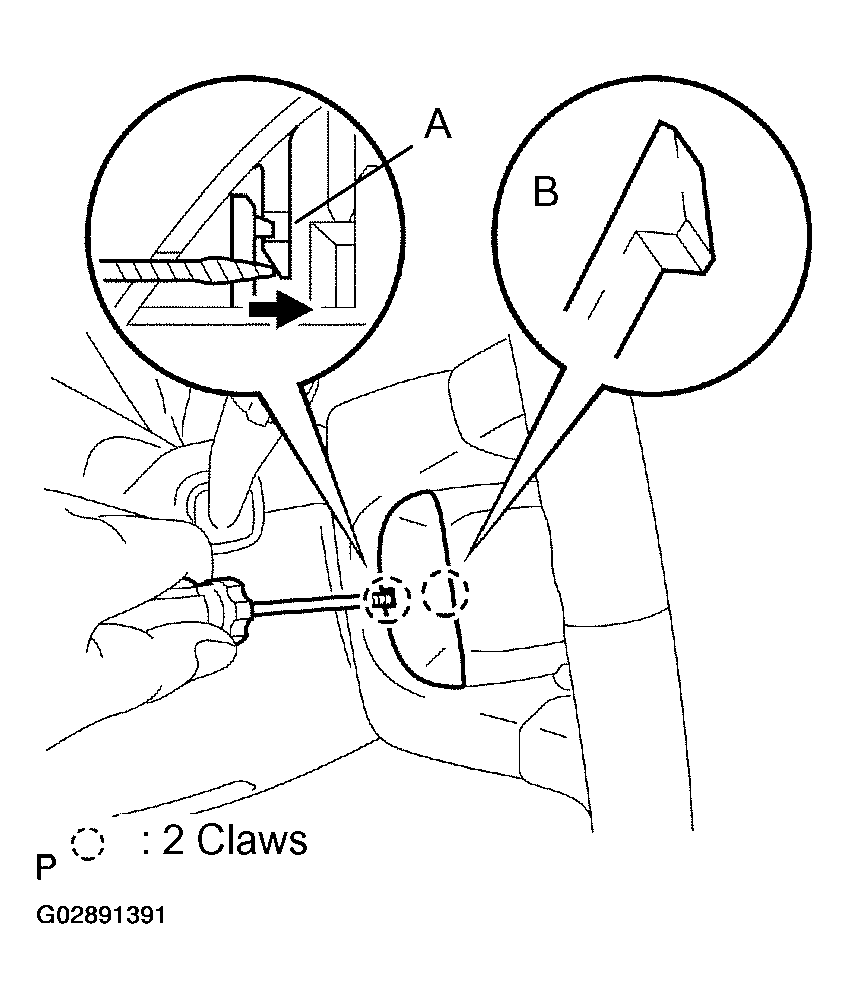

REMOVE CONNECTOR COVER
1. Using a screwdriver, disengage the claw (A).
  HINT:

  Tape the screwdriver tip, before use.
2. Disengage the claw (B) and remove the connector cover.

  Fig 1: Disengaging Claw Using A Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HORN BUTTON ASSY (see DUAL-STAGE DRIVER-SIDE AIR BAG MODULE )

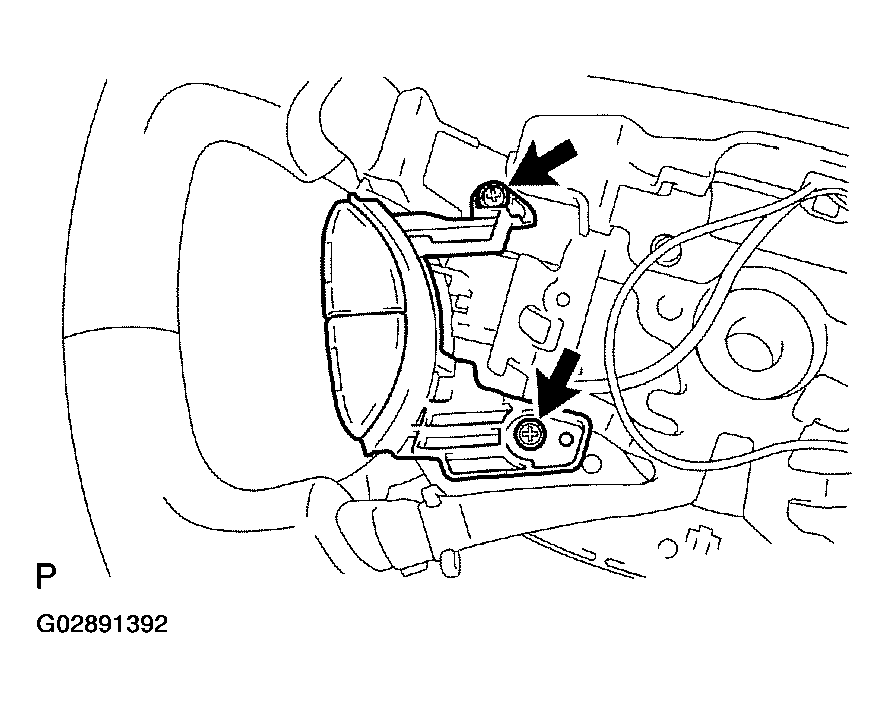

REMOVE STEERING PAD SWITCH
1. Disconnect the connector.
2. Remove the 2 screws and steering pad switch.

  Fig 2: Removing Screws And Steering Pad Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

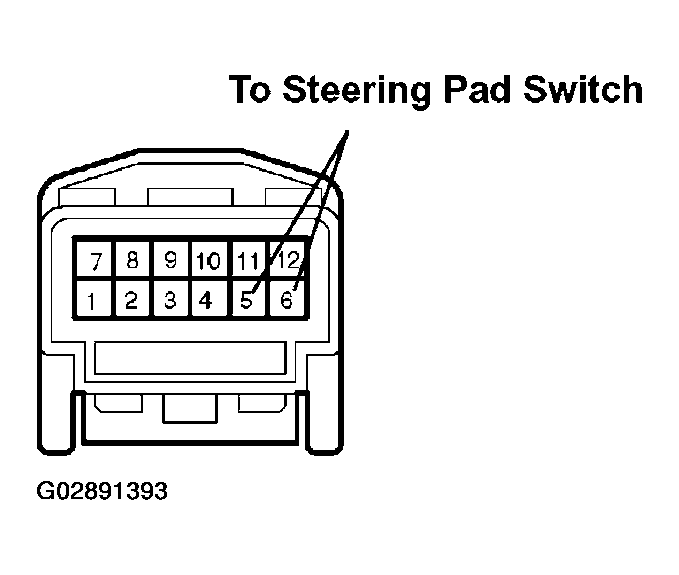

3. Disengage the wiring 2 pins from the connector, and pull them out.

  Fig 3: Disengaging Wiring Pins From Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HORN BUTTON ASSY (see DUAL-STAGE DRIVER-SIDE AIR BAG MODULE )
INSPECT HORN BUTTON ASSY (If the horn button contact plate of the horn button assembly is deformed, replace the horn button assembly with a new one)(For Horn operation, see HORN SYSTEM ).
INSPECT SRS WARNING LIGHT (See AIR BAG RESTRAINT SYSTEMS )
