Windshield Wiper Switch ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE STEERING COLUMN COVER (See OVERHAUL (TMC) or OVERHAUL (TMMK) )
REMOVE WINDSHIELD WIPER SWITCH ASSY
1. Disconnect the connector.
2. Using a screwdriver, release the claw and pull out the windshield wiper switch assy.
NOTE: Pressing the claw hard breaks the claw.

HINT:

Tape the screwdriver tip before use.

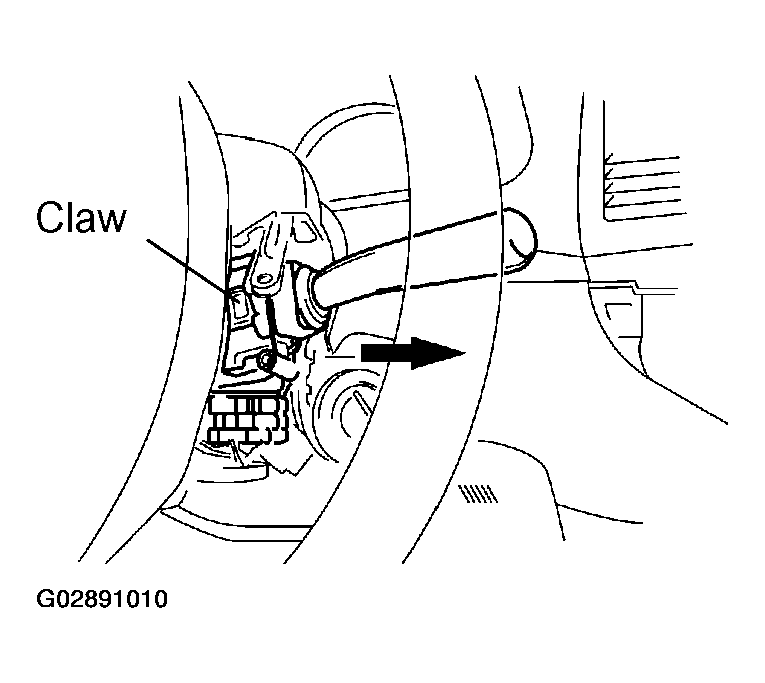

Fig 1: Removing Windshield Wiper Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
