Power Point Socket ASSY RR: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE) (See REPLACEMENT )
REMOVE CONSOLE PANEL UPPER REAR (See REPLACEMENT )
REMOVE CONSOLE BOX CARPET (See REPLACEMENT )
REMOVE RR CONSOLE BOX (See REPLACEMENT )
REMOVE POWER POINT SOCKET ASSY RR
1. Remove the clamp.

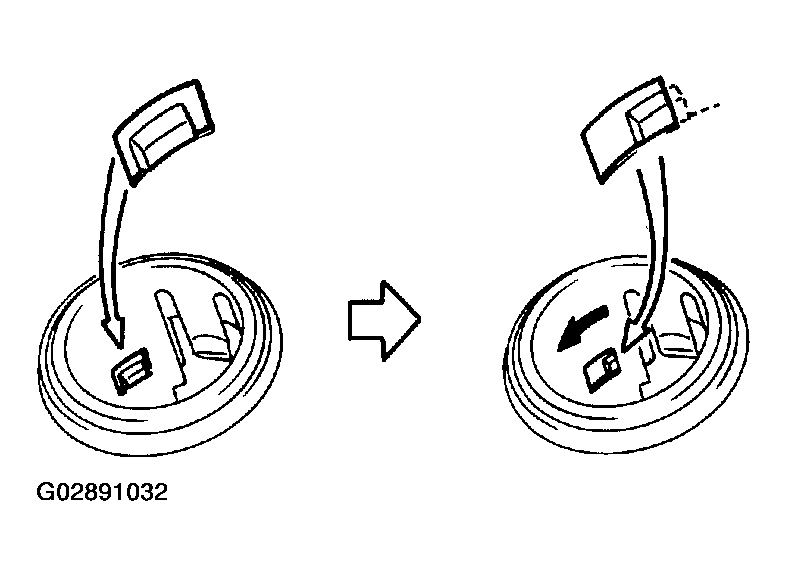

2. Turn the socket in the circumference direction as shown in the illustration, disengage the claw between the socket and the power outlet socket cover RR, and push out the socket to the room side.

  Fig 1: Turning Socket In Circumference Direction (Socket Assy RR)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

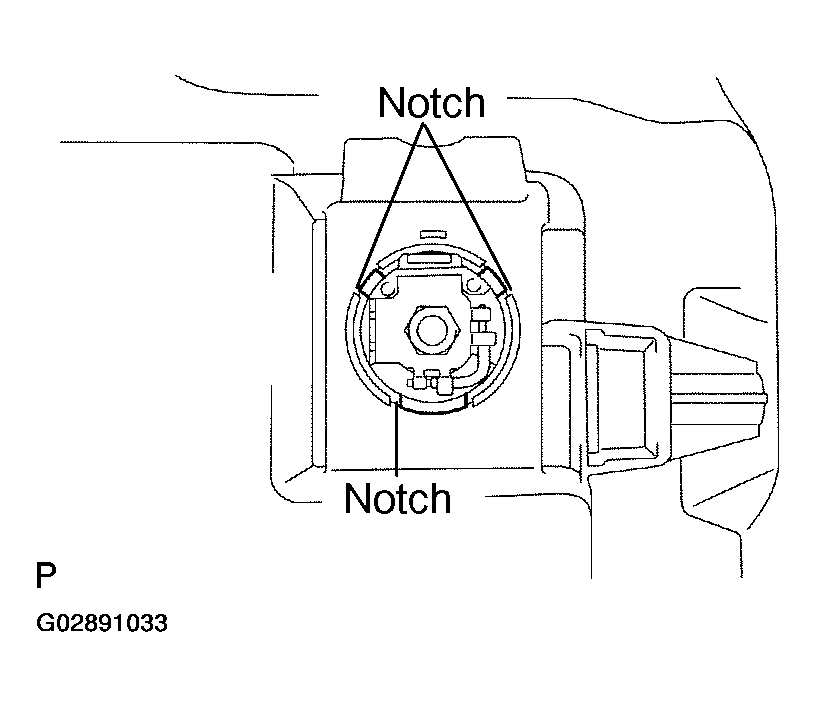

3. Align the socket with the notch on the power outlet socket cover RR, remove the power point socket assy RR to the room side.

  Fig 2: Aligning Socket With Notch (Socket Assy RR)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER POINT SOCKET ASSY RR
1. Align the socket with the notch on the power outlet socket cover RR, push the power point socket assy RR into as hard as possible and install it.
