Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CD
1. Check for dirt on the CD surface.
  OK: The CD is clean.
HINT:

If dirt is on the CD surface, wipe it with a soft cloth from inside to outside in a radial direction.

NOTE: Do not use a conventional record cleaner or anti-static preservative.

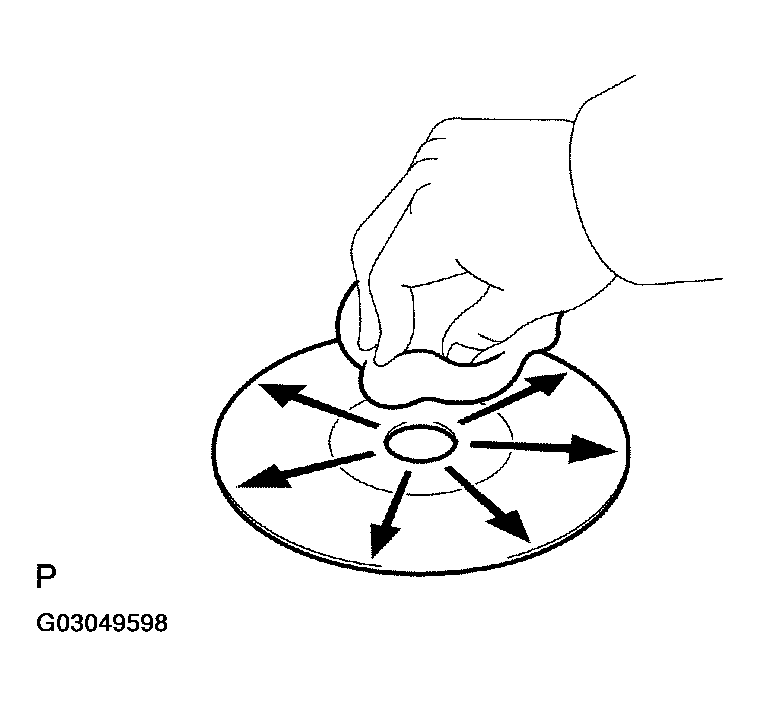

Fig 1: Checking For Dirt On CD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: CLEAN CD
2. OK: Go to Next Step.
CHECK CD
1. Check that the CD is not deformed or cracked.
  OK: No deformations or cracks appear on the CD.

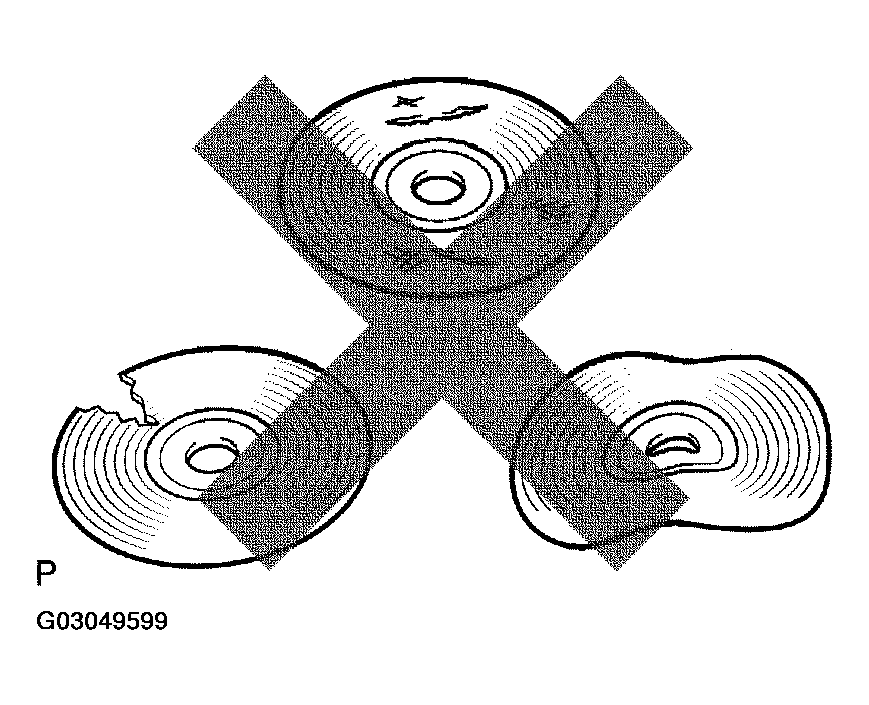

  Fig 2: Checking CD Is Not Deformed Or Cracked
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE CD
2. OK: Go to Next Step.
CHECK USING ANOTHER CD
1. Check using another CD.
  1. Check if the problem recurs using another CD.
  OK: The problem does not recur.
1. OK: REPLACE CD
2. NG: Go to Next Step.
CHECK RADIO AND NAVIGATION ASSY
1. Check the radio and navigation assy installation condition.
  1. Check that the radio and navigation assy is properly installed (see REPLACEMENT ).
  OK : Radio and navigation assy is properly installed.
1. NG: REINSTALL RADIO AND NAVIGATION ASSY PROPERLY
2. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
