Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK CONDITION
- Check with the customer if the vehicle has been turned by a turntable at parking.
OK: The vehicle has not been turned by a turntable.
HINT:

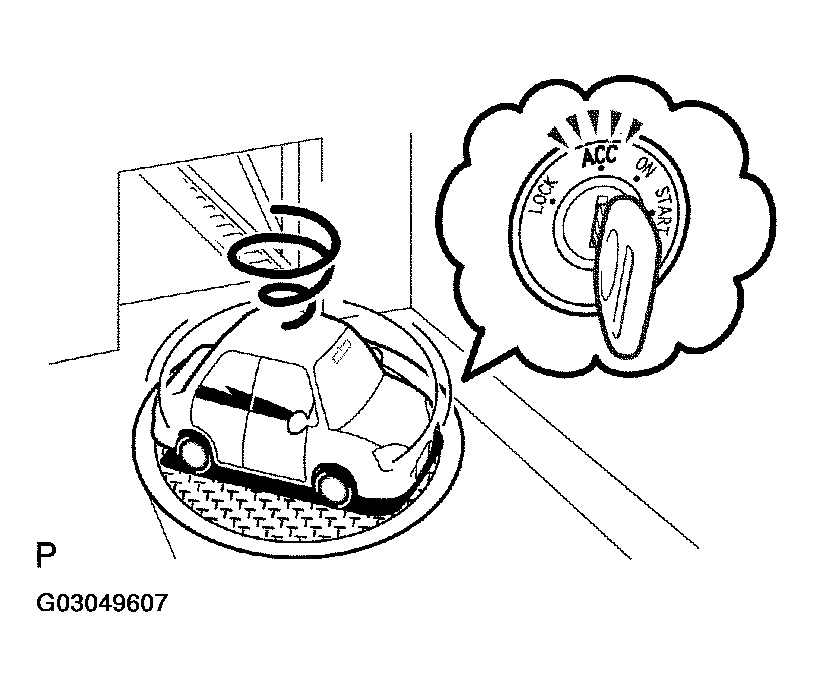

If the ignition switch is turned to the ACC or ON position while the vehicle is being turned by a turntable, the system may store the angular velocity at this time. For this reason, the vehicle position cursor could deviate.
- NG: TURN IGNITION SWITCH TO ON POSITION WHEN VEHICLE IS COMPLETELY STOPPED
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
- Check with the customer if the vehicle has been turned by a turntable at parking.
