Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK IMAGE QUALITY SETTING
1. Enter the display adjustment screen by pressing the "DISPLAY" switch.
2. Turn the light control switch to the TAIL position.
3. Check if "DAY MODE" on the display adjustment is ON.
  OK: "DAY MODE" is ON.

  Fig 1: Identifying Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: TURN FORCED "DAY MODE" SETTING OFF
2. NG: Go to Next Step.

DISPLAY CHECK MODE (VEHICLE SIGNAL CHECK MODE)

Enter the "Display Check" mode (Vehicle Signal Check Mode) (see DISPLAY CHECK MODE (VEHICLE SIGNAL CHECK) ).

Turn the light control switch to the TAIL, HEAD or OFF position.

Standard:

LIGHT CONTROL SWITCH SPECIFICATION

Light Control Switch	Display
TAIL or HEAD	ON
OFF	OFF

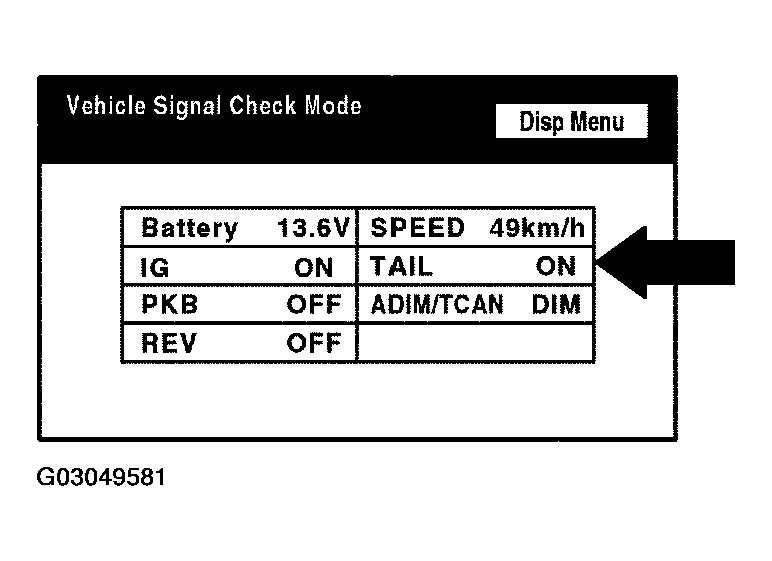

Fig 2: Identifying Display Check Mode

HINT:

The display is updated once per second. As a result, it is normal for the display to lag behind the actual change in the switch.

OK: REPLACE RADIO AND NAVIGATION ASSY (SEE REPLACEMENT )
NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
