Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FUSE (P/W)
1. Remove the P/W fuse from the instrument panel J/B.
2. Measure the resistance of the fuse.
  Standard: Below 1 Ω
1. NG: REPLACE FUSE
2. OK: Go to Next Step.
CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSY - BATTERY AND BODY GROUND)
1. Disconnect the D8 master switch connector.
2. Measure the voltage and resistance of the wire harness side connector.
Standard:

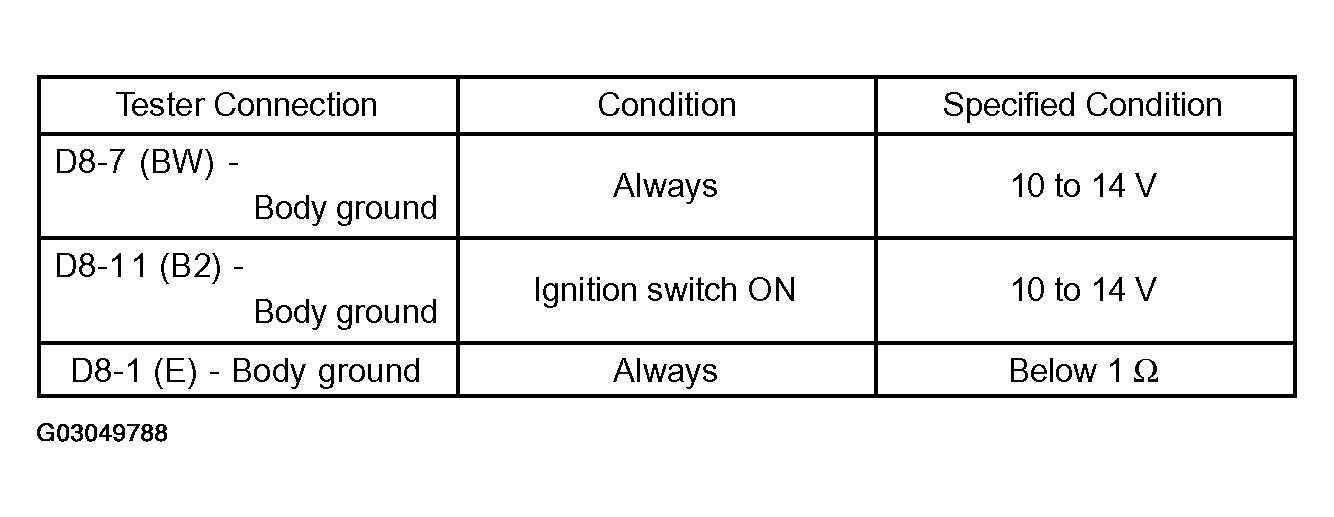

Fig 1: Power Window Regulator Master Switch Connector - Body Ground Resistance Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

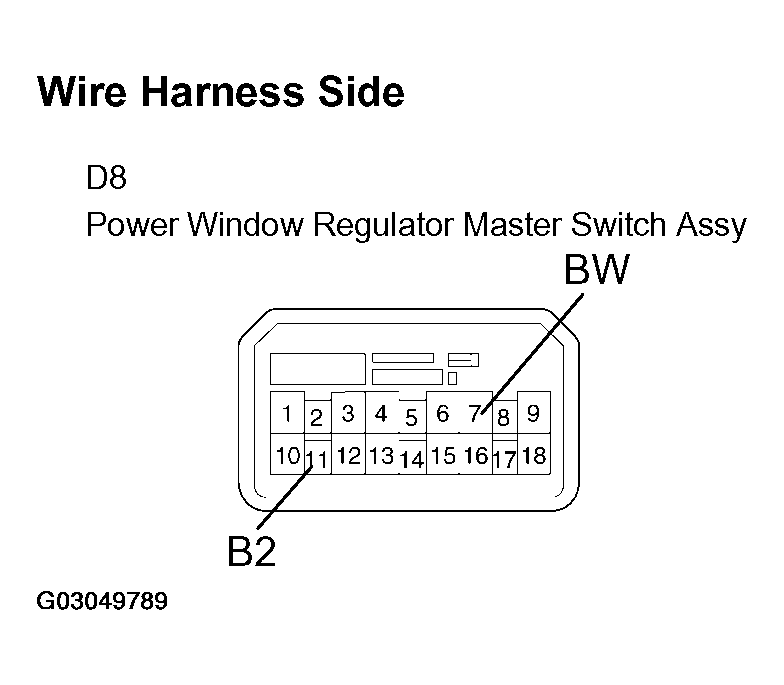

Fig 2: Identifying D8 Master Switch Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to Next Step.
CHECK POWER WINDOW REGULATOR MOTOR ASSY LH
1. Disconnect the D8 master switch connector.
2. Check operation of the power window regulator motor.
  OK:

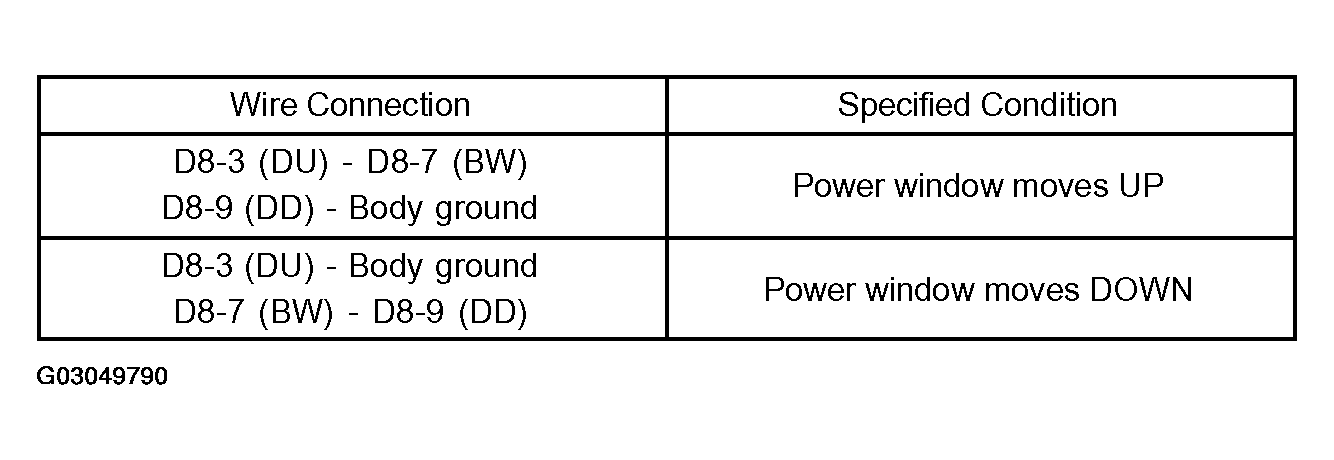

Fig 3: Power Window Regulator Motor Operation Condition Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

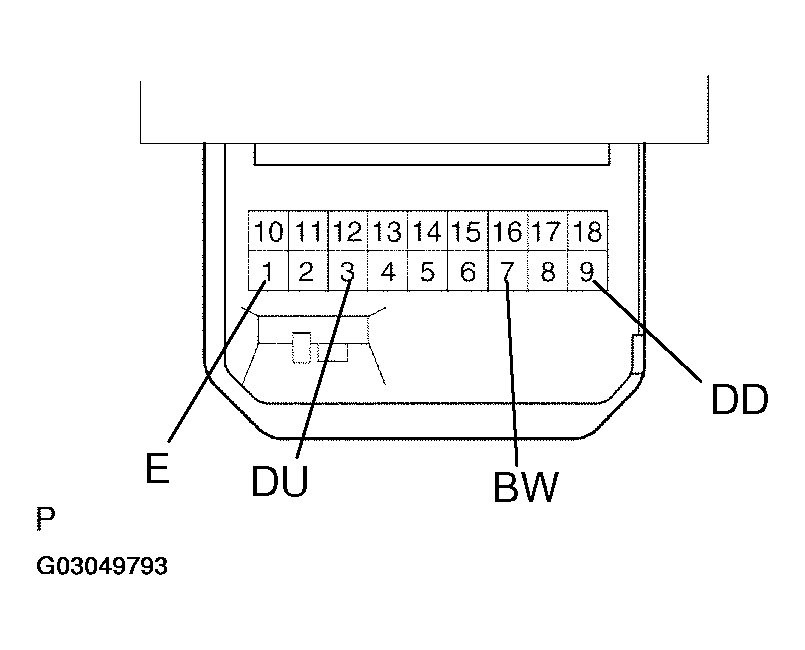

Fig 4: Identifying Power Window Regulator Master Switch Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: Go to step 4
2. OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY (SWITCH OPERATION)
1. Disconnect the D8 master switch connector.
2. Measure the resistance of the switch when the switch is operated.
  Standard:

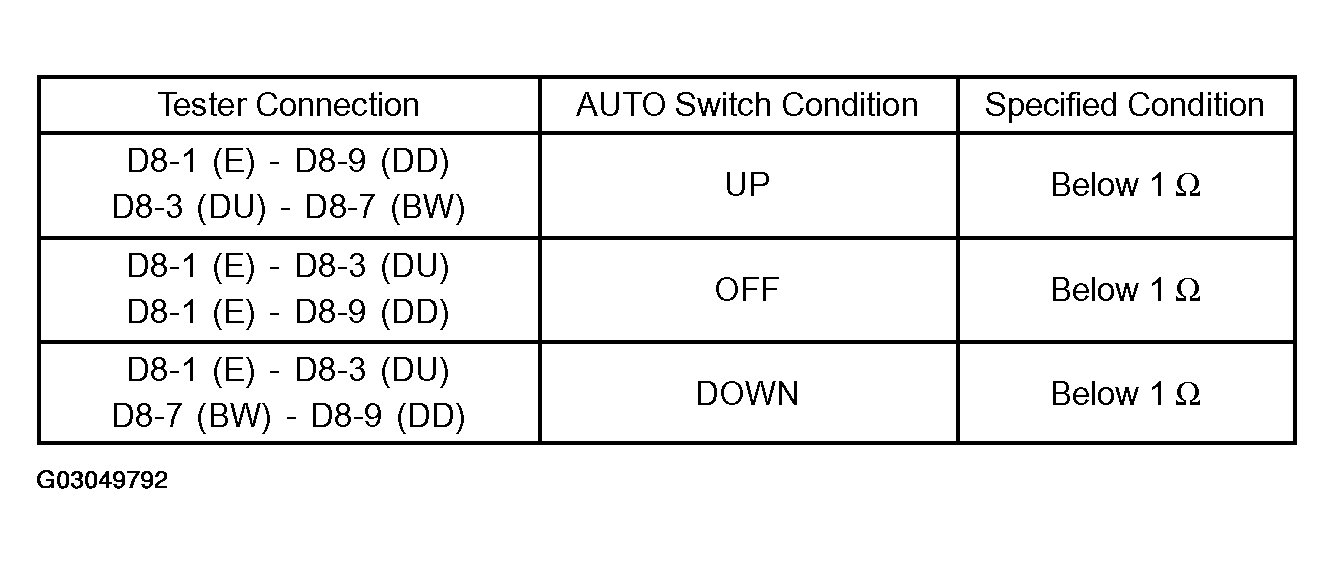

Fig 5: Power Window Regulator Master Switch Resistance Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

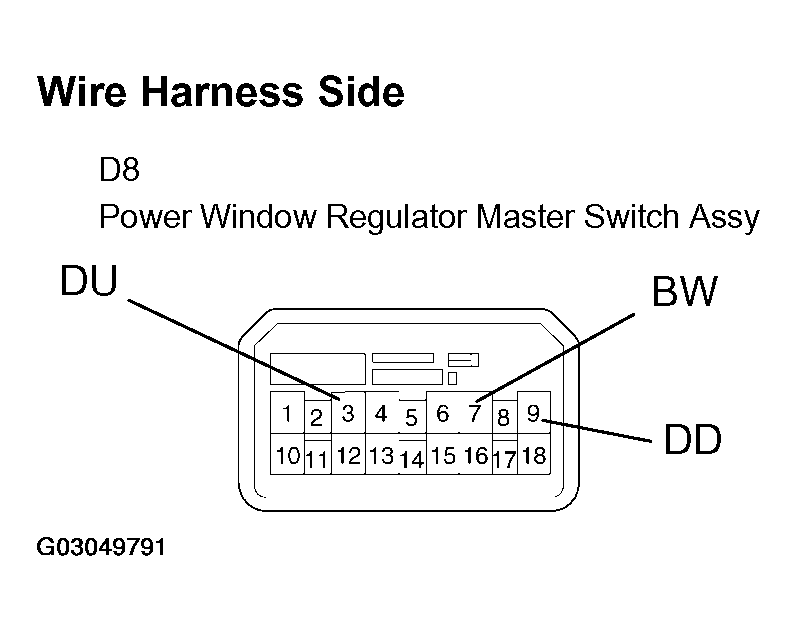

Fig 6: Identifying Power Window Regulator Master Switch Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
2. OK: Go to Next Step.

CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSY - POWER WINDOW REGULATOR MOTOR ASSY LH)

Disconnect the D8 master switch connector.
Disconnect the P7 motor connector.
Measure the resistance of the wire harness side connectors.
Standard:

POWER WINDOW REGULATOR MASTER SWITCH - MOTOR RESISTANCE SPECIFICATION

Tester Connection	Specified Condition
D8-9 (DD) - P7-2 (D)	Below 1 Ω
D8-3 (DU) - P7-1 (U)	Below 1 Ω
D8-9 (DD) - Body ground	10 kΩ or higher
D8-3 (DU) - Body ground	10 kΩ or higher

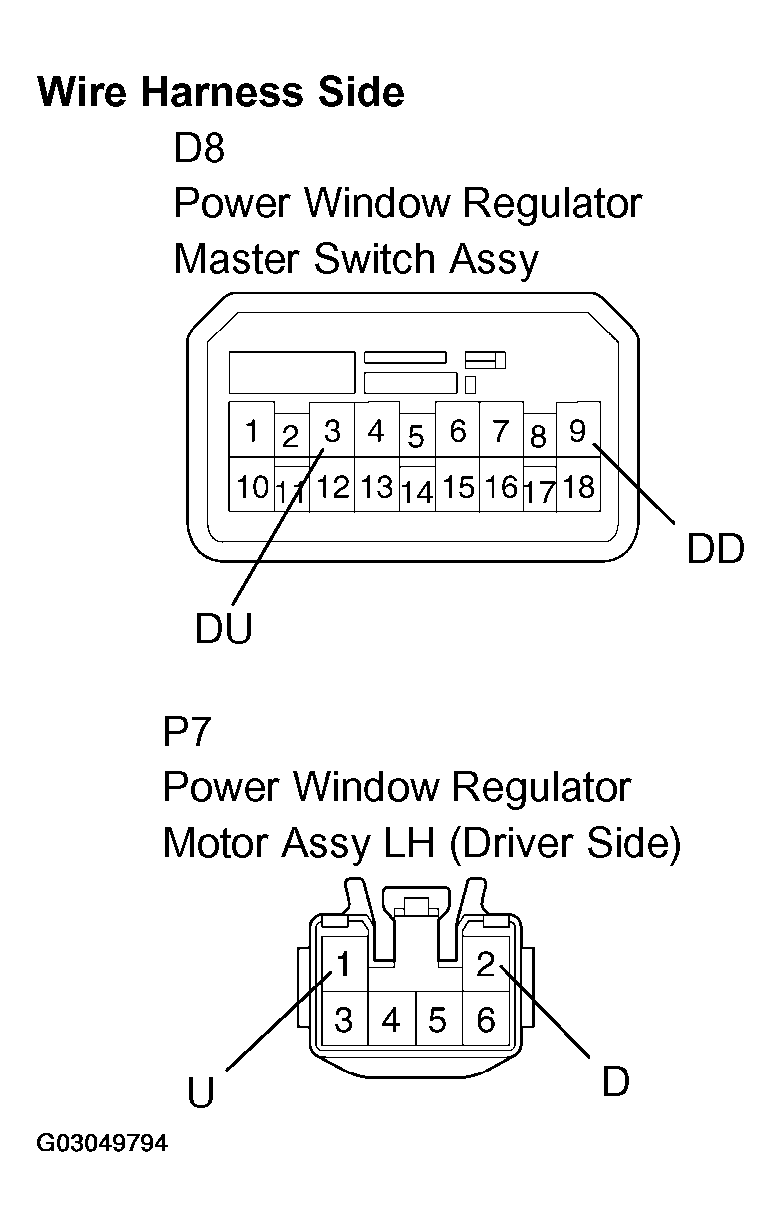

Fig 7: Identifying Power Window Regulator Master Switch & Motor Connectors

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH
