Diagnosis System

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. DESCRIPTION
    1. Wireless door lock control system data and the DTCs can be read in the DLC3 of the vehicle. When the system seems to be malfunctioning, use the hand-held tester to check for malfunctions and perform repairs.
  2. CHECK DLC3

    HINT:

    The vehicle uses ISO 9141-2 communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 9141-2 format.

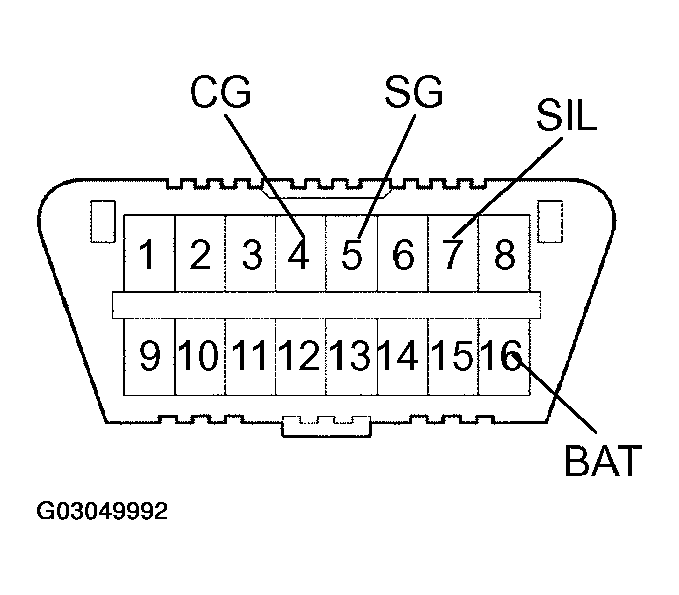

    Fig 1: Identifying DLC3 Terminal
    G03049992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CONNECTOR TERMINAL DESCRIPTION

    Symbols (Terminals No.) Terminal Description Condition Specified Condition
    SIL (7) - SG (5) Bus "+" line During transmission Pulse generation
    CG (4) - Body ground Chassis ground Always Below 1 Ω
    SG (5) - Body ground Signal ground Always Below 1 Ω
    BAT (16) - Body ground Battery positive Always 11 to 14 V

    If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

    HINT:

    Connect the cable of the hand-held tester to the DLC3, turn the ignition switch ON and attempt to use the hand-held tester. If the screen displays the message UNABLE TO CONNECT TO VEHICLE, there is a problem either with the vehicle or with the tester.

    • If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
    • If communication is still impossible when the tester is connected to another vehicle, the problem is probably in the tester itself. Consult the Service Department listed in the tester's instruction manual.
  3. INSPECT BATTERY VOLTAGE

    Standard: 11 to 14 V

    If the voltage is below 11 V, replace the battery before proceeding.
