Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

The CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ω

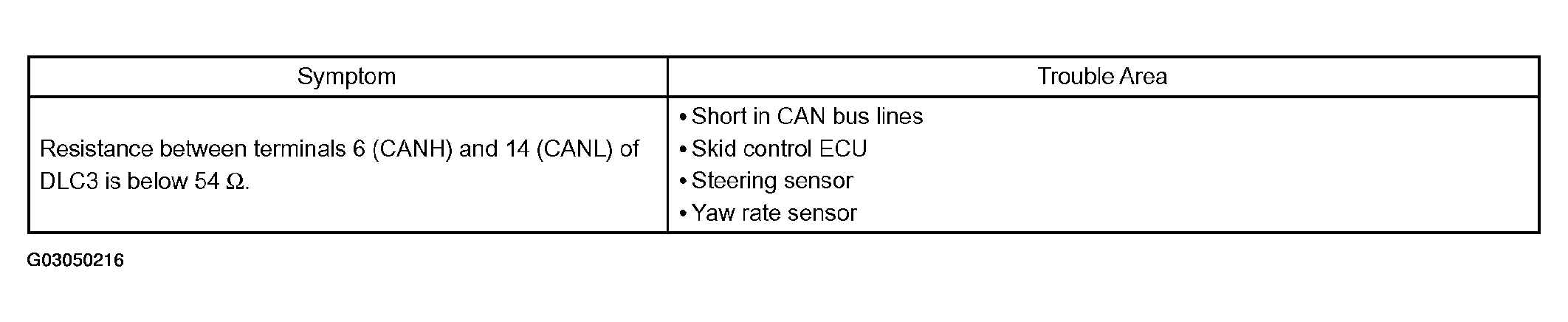

Fig 1: CAN Bus Lines For Short Circuit Diagram
G03050216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
