Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

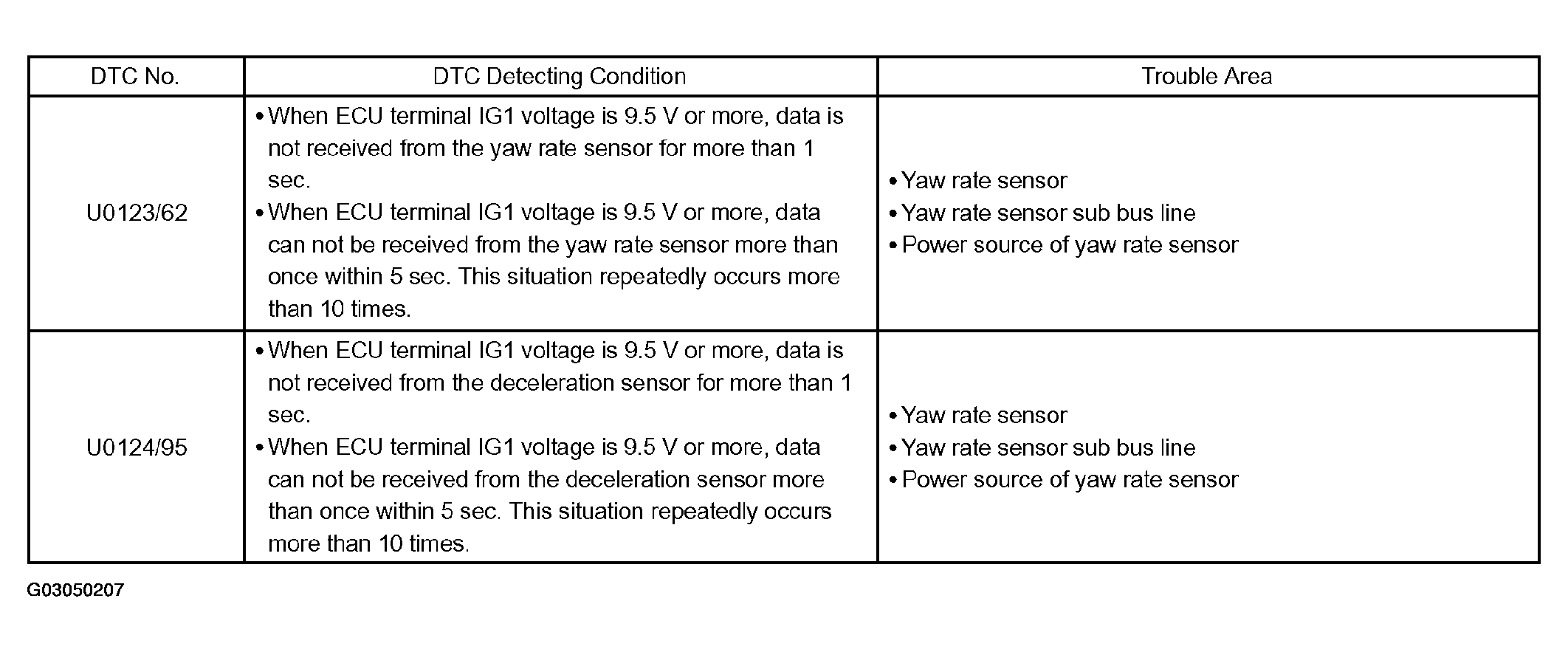

Fig 1: DTC - U0123/62 & U0124/95 Trouble Detection Table
G03050207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
