Yaw Rate Sensor Communication Stop Mode: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

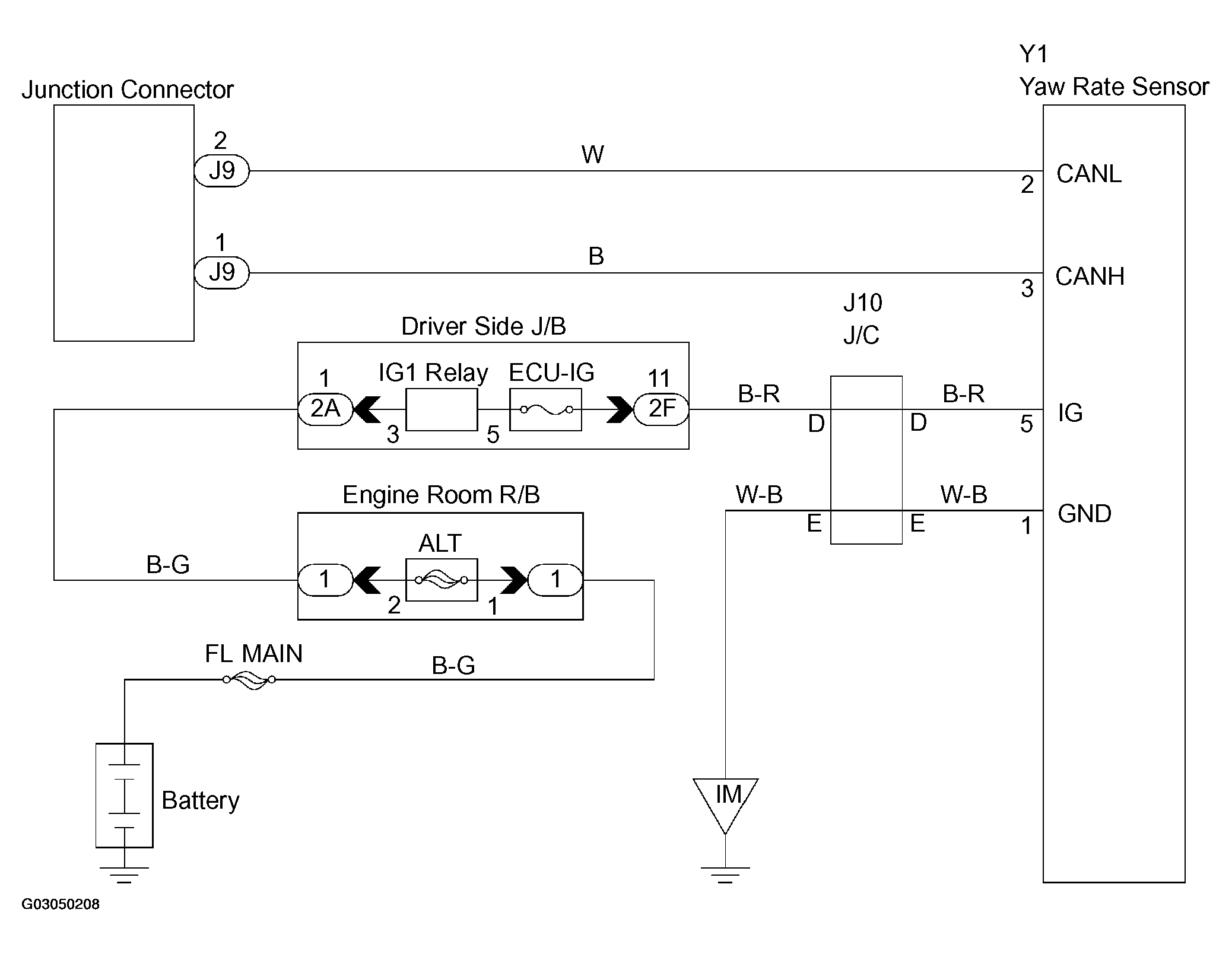

Fig 1: Wiring Diagram - Yaw Rate Sensor Communication Stop Mode
G03050208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
