Problem Symptoms Table

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. HEADLIGHT AND TAILLIGHT

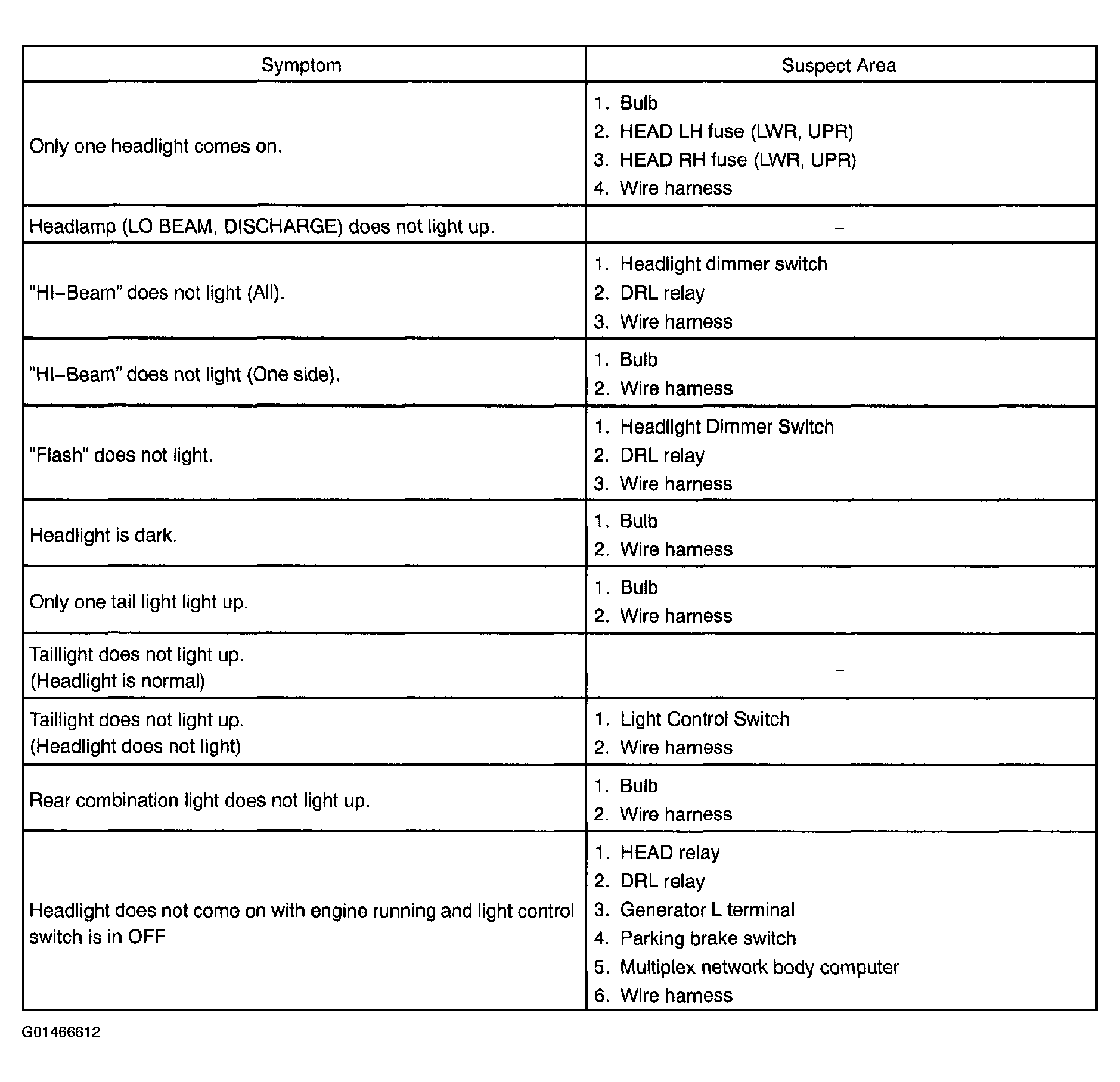

    Fig 1: Headlight & Taillight Symptoms Chart
    G01466612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. AUTOMATIC LIGHT CONTROL SYSTEM

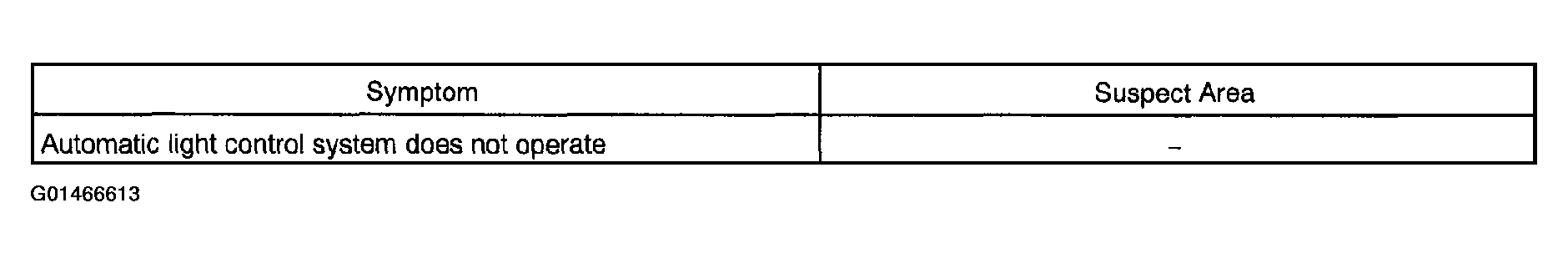

    Fig 2: Automatic Light Control System Symptom Chart
    G01466613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. LIGHT AUTO CUT SYSTEM

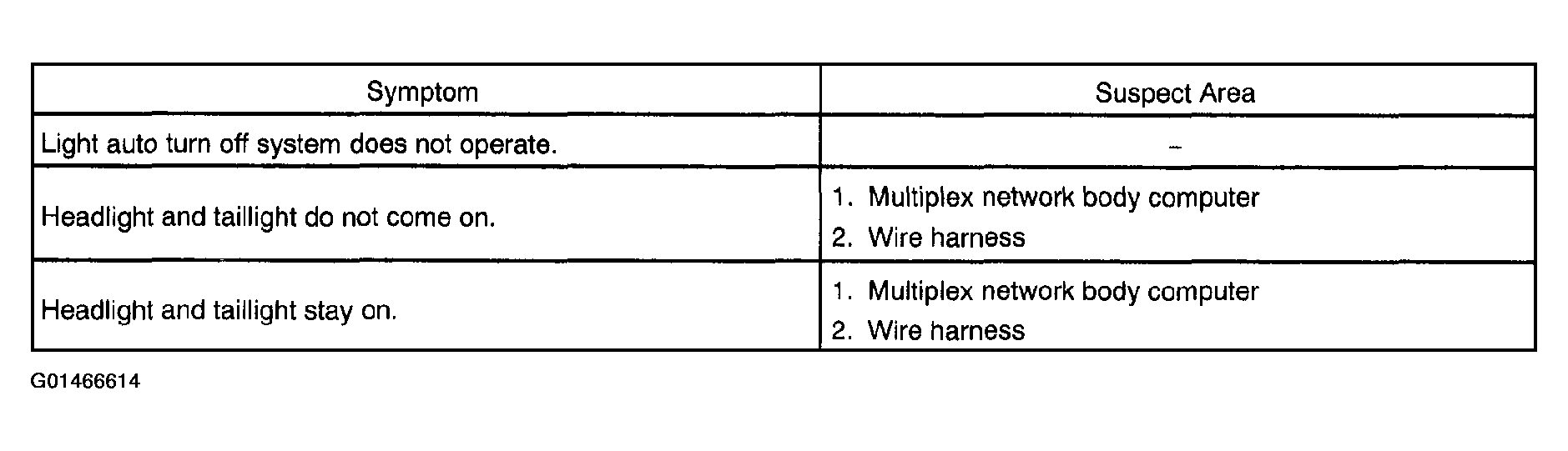

    Fig 3: Light Auto Cut System Symptoms Chart
    G01466614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. FOG LIGHT SYSTEM

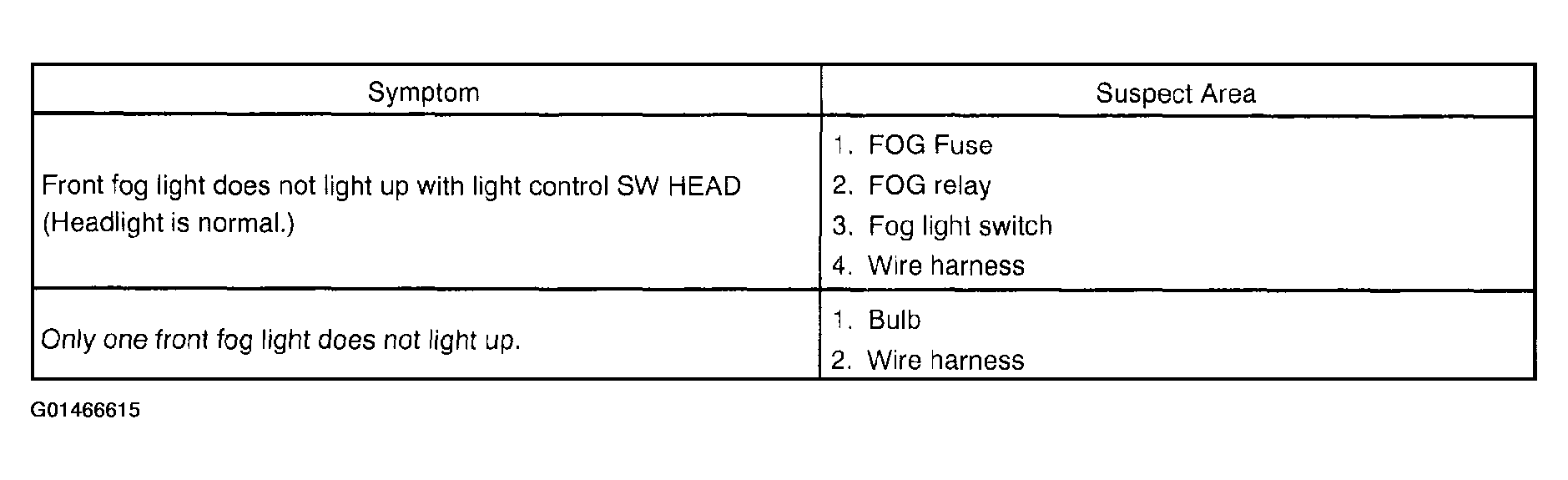

    Fig 4: Fog Light System Symptoms Chart
    G01466615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. TURN SIGNAL AND HAZARD WARNING SYSTEM

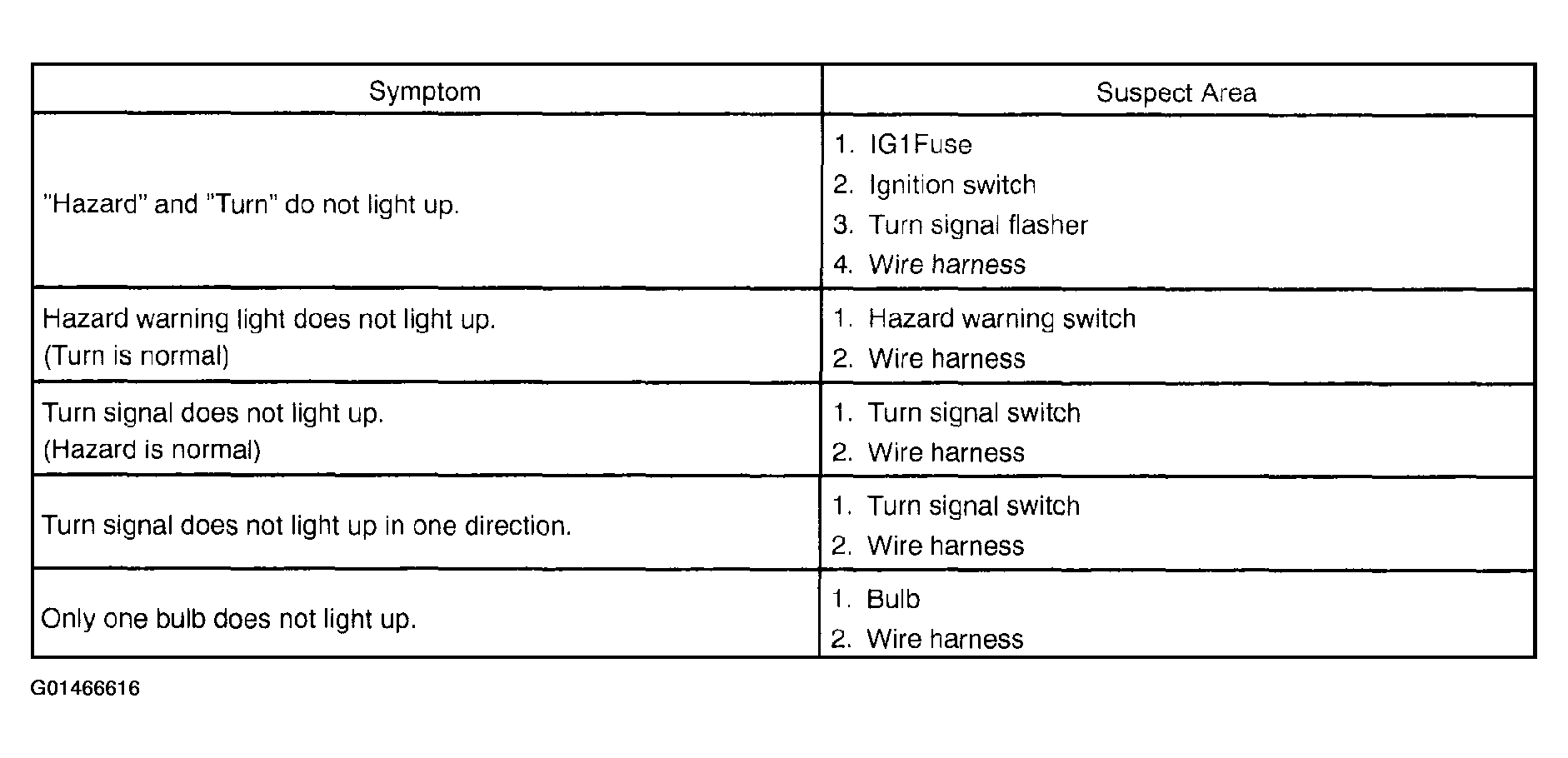

    Fig 5: Turn Signal And Hazard Warning System Symptoms Chart
    G01466616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. ILLUMINATED ENTRY SYSTEM

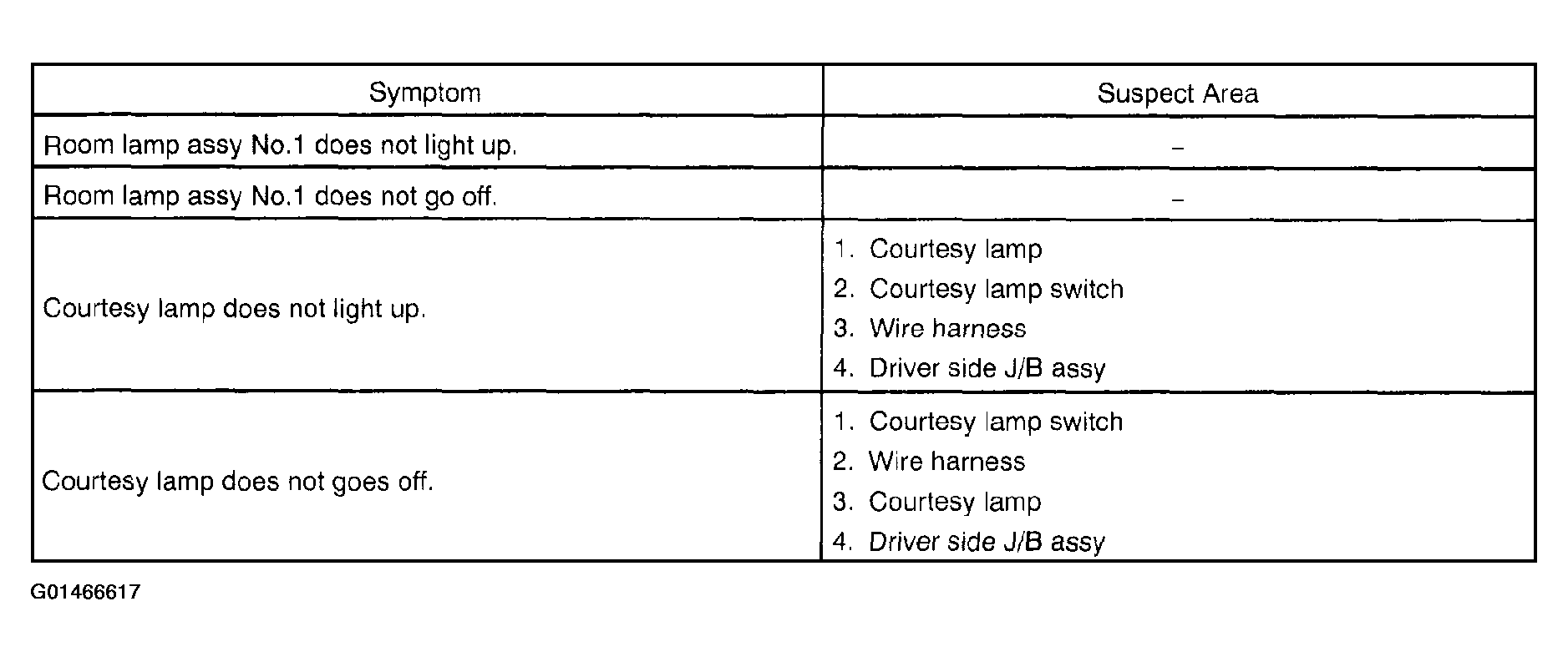

    Fig 6: Illuminated Entry System Symptoms Chart
    G01466617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. HEADLAMP BEAM LEVEL CONTROL SYSTEM

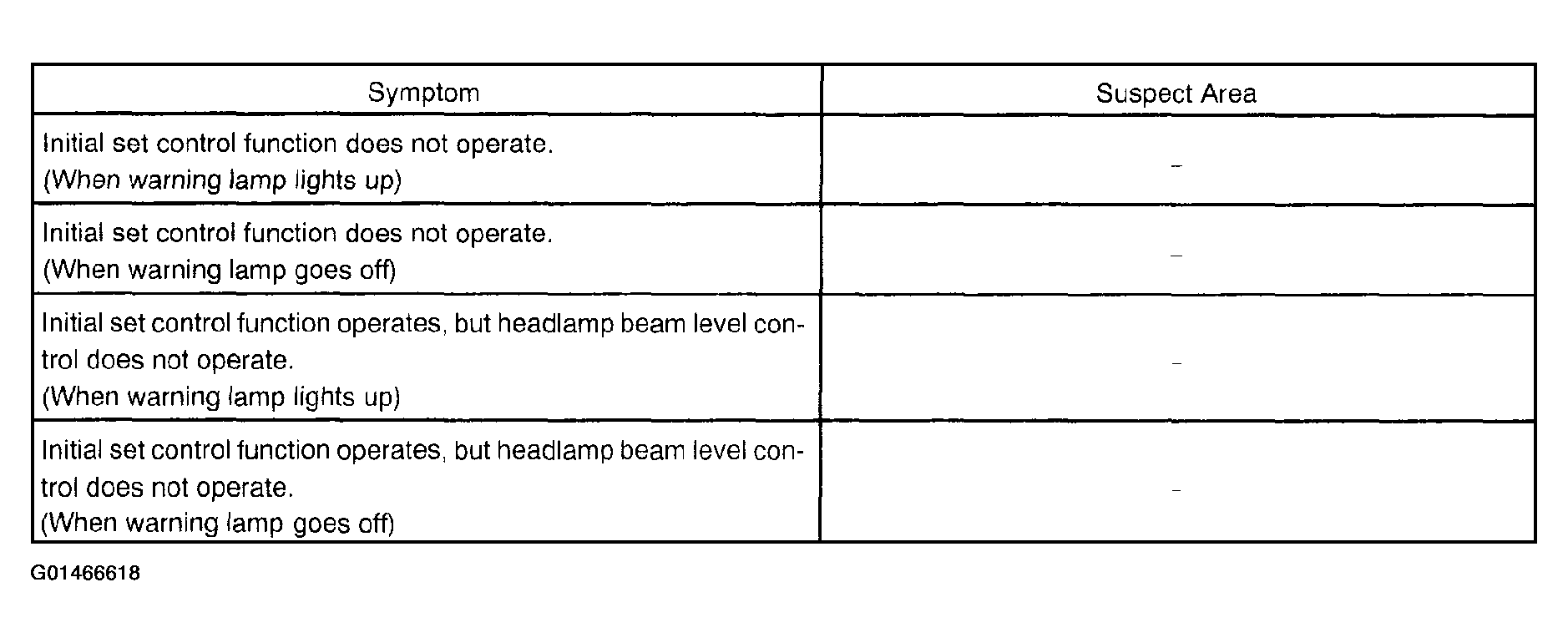

Fig 7: Headlamp Beam Level Control System Symptoms Chart
G01466618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
