Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY
1. Remove the courtesy switch assy.
2. Measure the switch resistance.

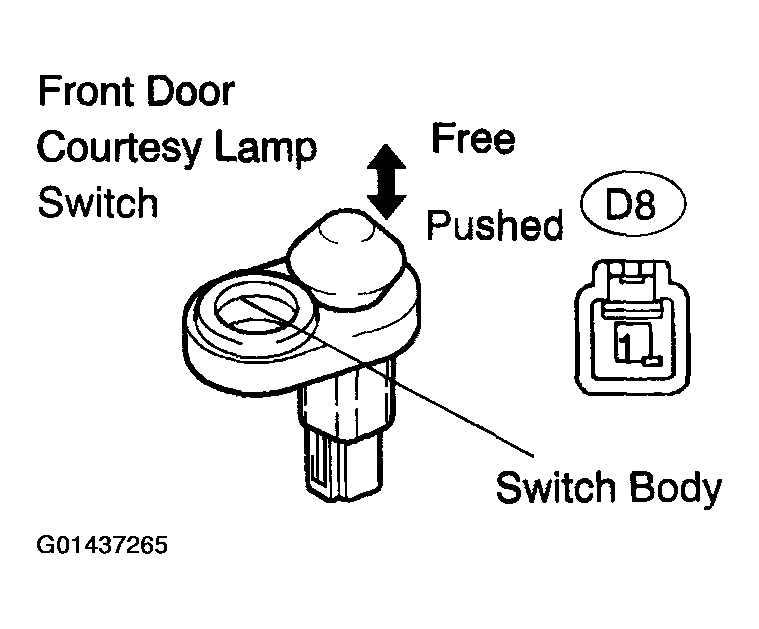

  Fig 1: Inspecting Front Door Lamp Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

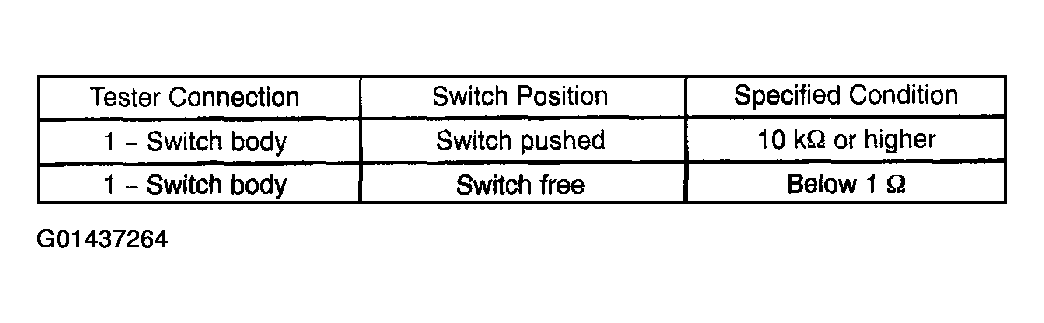

  Fig 2: Front Door Circuit Courtesy Lamp Switch Assy. Resistance Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY

  OK: Go to next step.
CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU & SWITCH ASSY - FRONT DOOR COURTESY SWITCH ASSY)
1. Disconnect M6 ECU connector.
2. Reconnect the courtesy switch assy.

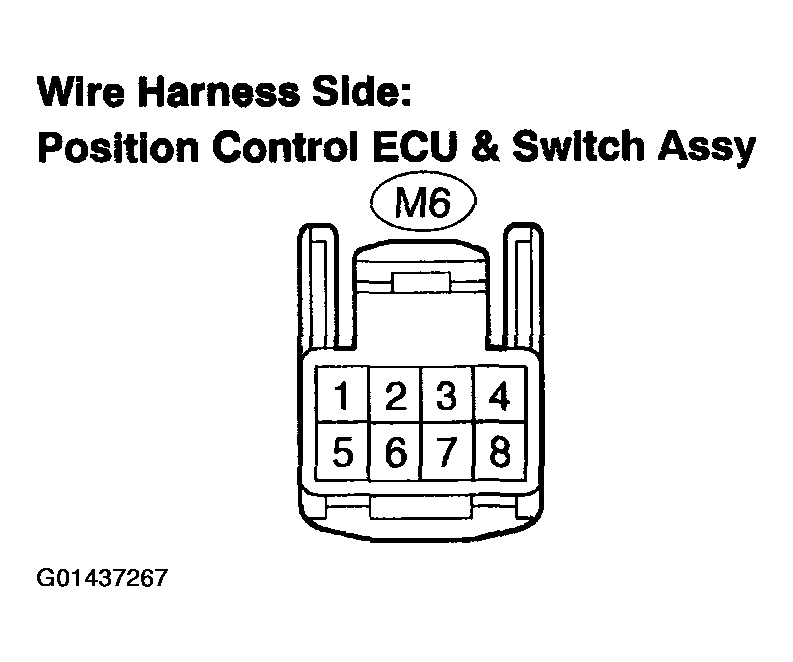

3. Measure the resistance of the wire harness side connectors.
  Standard:

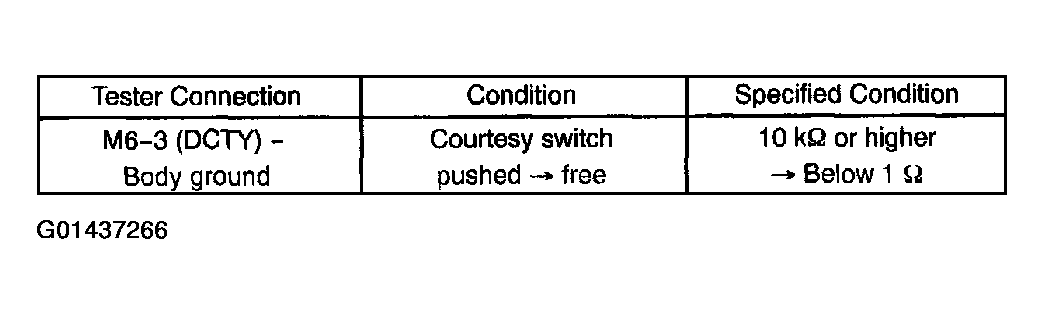

  Fig 4: Harness and Connector (Position Control ECU & Switch Assy. - Front Door Courtesy Switch Assy.) Resistance Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

  OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
