CHECK POSITION CONTROL ECU & SWITCH ASSY

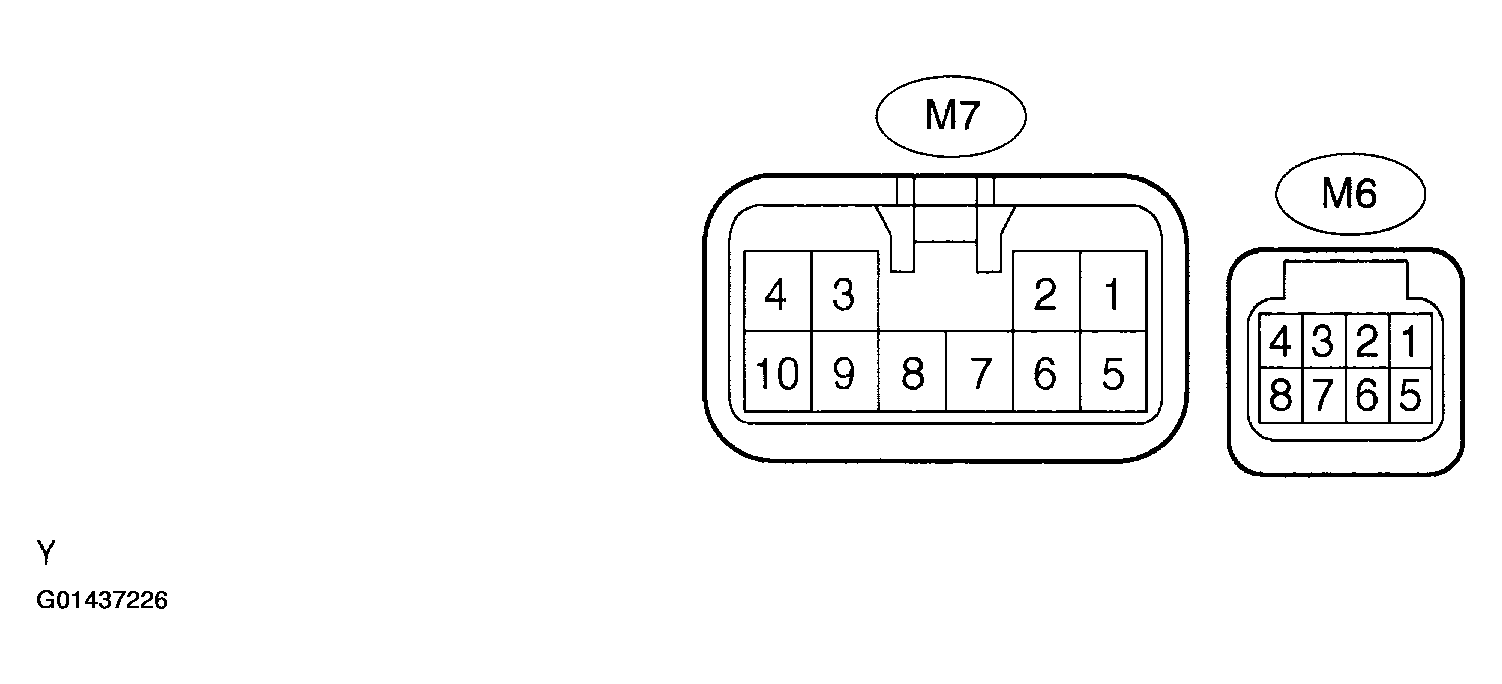

1. Disconnect M6 and M7 ECU & switch connectors.
2. Check the voltage of each terminal of the wire harness side connectors.
  Standard:

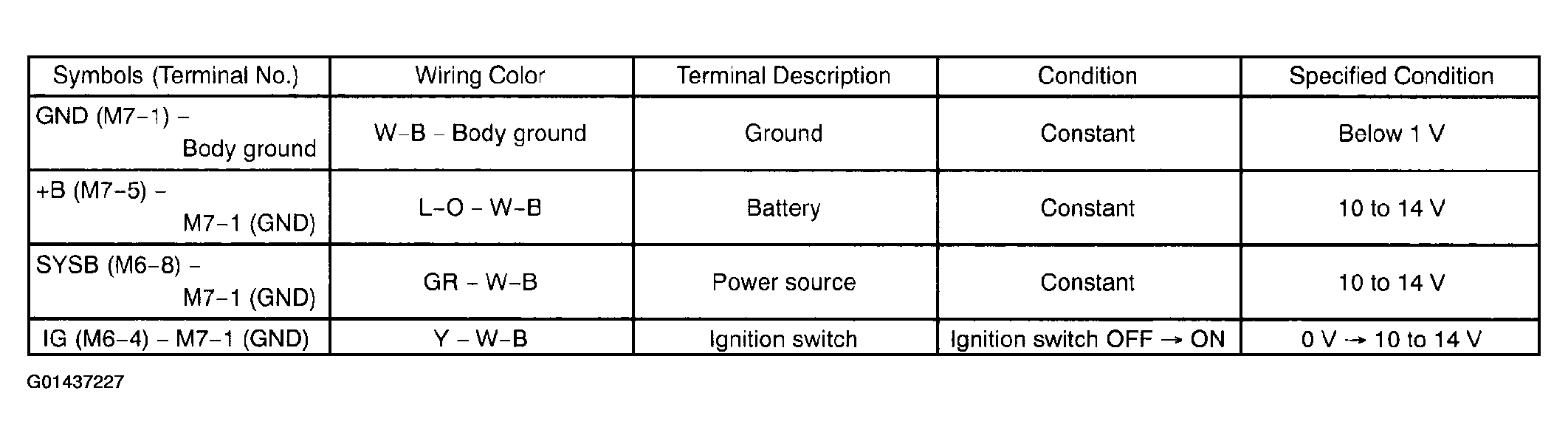

  Fig 2: Position Control ECU & Switch Assy Terminal Voltage Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, there may be a malfunction on the wire harness side.
3. Reconnect M6 and M7 ECU & switch connectors.
4. Check the voltage of each terminal of the connectors.
Standard:

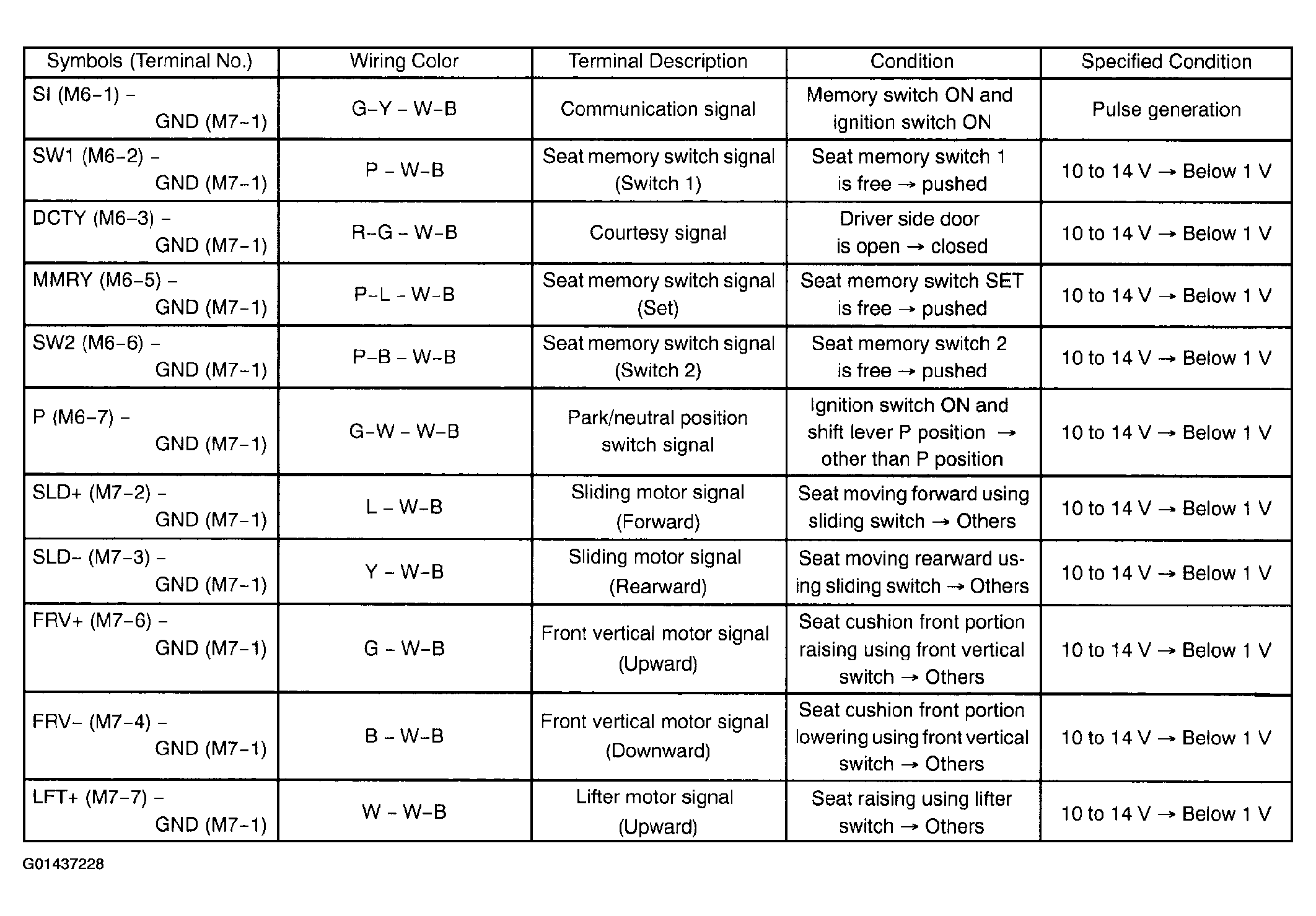

Fig 3: Position Control ECU & Switch Assy Terminal Voltage Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

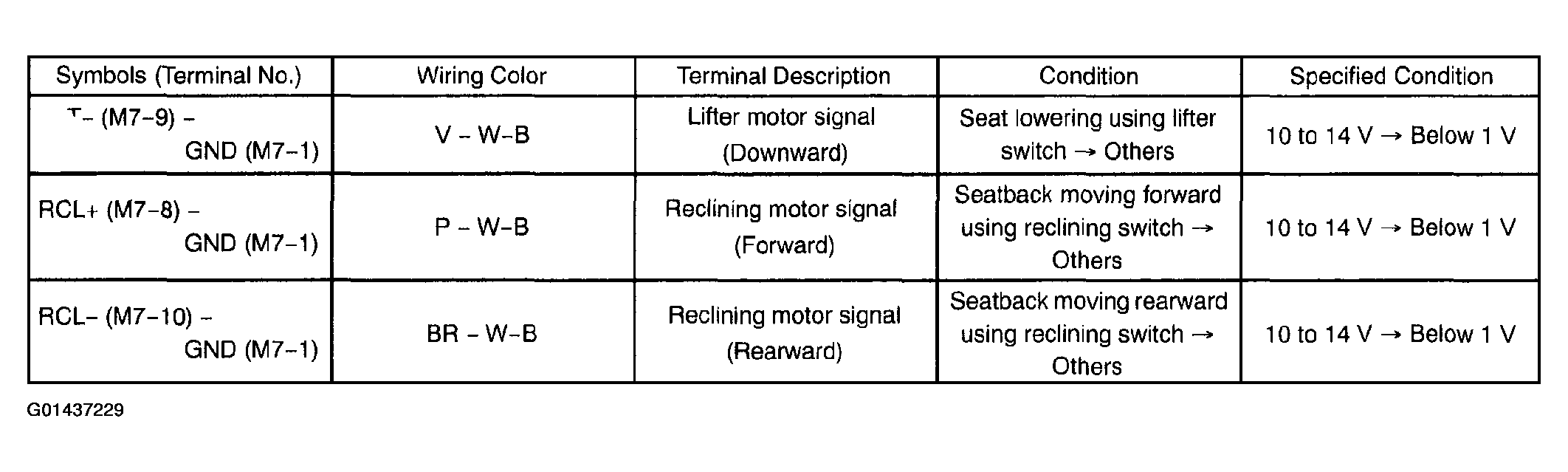

Fig 4: Position Control ECU & Switch Assy Terminal Voltage Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, the position control ECU & switch may be malfunctioning.
