Removal & Installation (Toyota Celica)

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. To access the shift interlock ECU, see SHIFT INTERLOCK CABLE . Remove the 4 bolts and remove the floor shift assembly. See Fig 1. Remove the O/D main switch connector from the gearshift lever plate. Disengage the secondary locking device. Release the locking tab of the terminals No. 5 and 6, and pull the terminals out from the rear. See Fig 2. Remove the 2 screws and shift lever knob assembly. See Fig 3.
  2. Remove the O/D main switch. Remove the No. 2 slide cover. Remove the shift lever stop pin, shift lever knob button, shift lever knob button guide and compression spring. Remove the upper position indicator housing. Remove the control position indicator plate and remove the 4 slide covers from the lower position indicator housing. See Fig 3.
  3. Remove the indicator lamp wire assembly. Remove the 4 screws and lower position indicator housing. Remove the screw and indicator lamp wire sub-assembly. Remove the shift interlock release button and spring. Remove the 2 screws and shift interlock ECU. See Fig 3.
  4. To assemble, install the shift interlock ECU with the 2 screws. Apply grease on the shift interlock release button spring. Install the spring and shift interlock release button. Install the indicator lamp wire sub-assembly with the screw. Install the lower position indicator housing with the 4 screws.
  5. Install the indicator lamp wire sub-assembly. Install upper position indicator housing Install the 4 slide covers to the lower position indicator housing. See Fig 3. Install the control position indicator plate. Install the upper position indicator housing. Apply grease on the compression spring. Install the compression spring, shift lever knob button guide, shift lever knob button and shift lever stop pin.
  6. Install the No. 2 slide cover. Install the O/D main switch. Install the gearshift lever knob sub-assembly with the 2 screws. Coat the threads of screws with sealant. Toyota Part No. 03333-00030, Three Bond 1344, Loctite 242 or equivalent. Connect the 2 O/D main switch terminals to the connector. Connect the connector to the shift lever plate.
  7. Pull in the cable while pressing the clip of the transaxle control cable to the floor shift assembly. Install the cable end from the rod of the floor shift assembly. Install the floor shift assembly with the 4 bolts. Connect the 2 wire harness clamps from the floor shift assembly. Connect the 2 connectors. To reassemble trim, see SHIFT INTERLOCK CABLE .

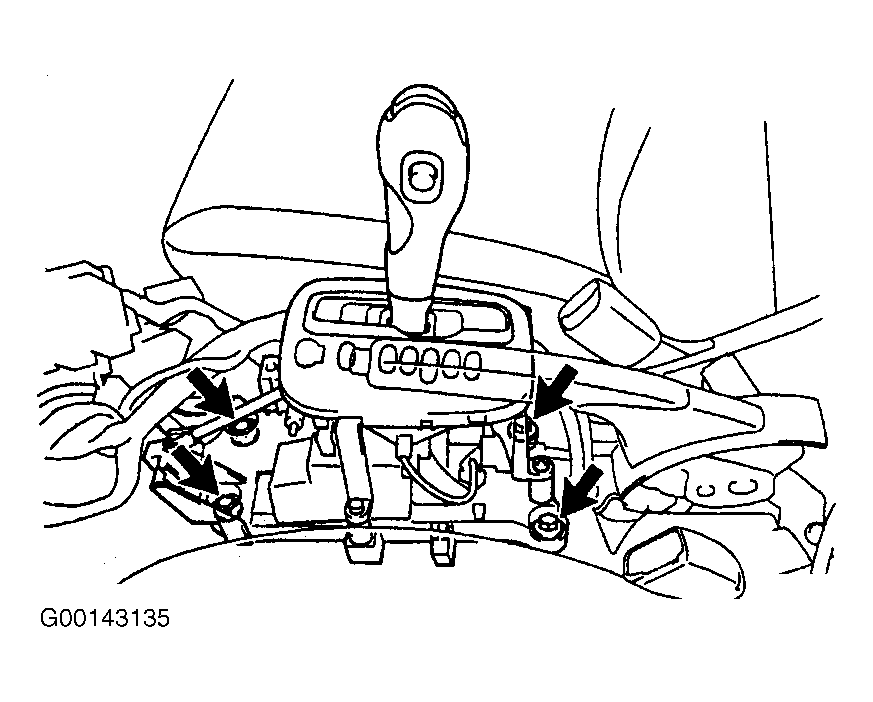

Fig 1: Removing & Installing Floor Shift Assembly (Toyota Celica)
G00143135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

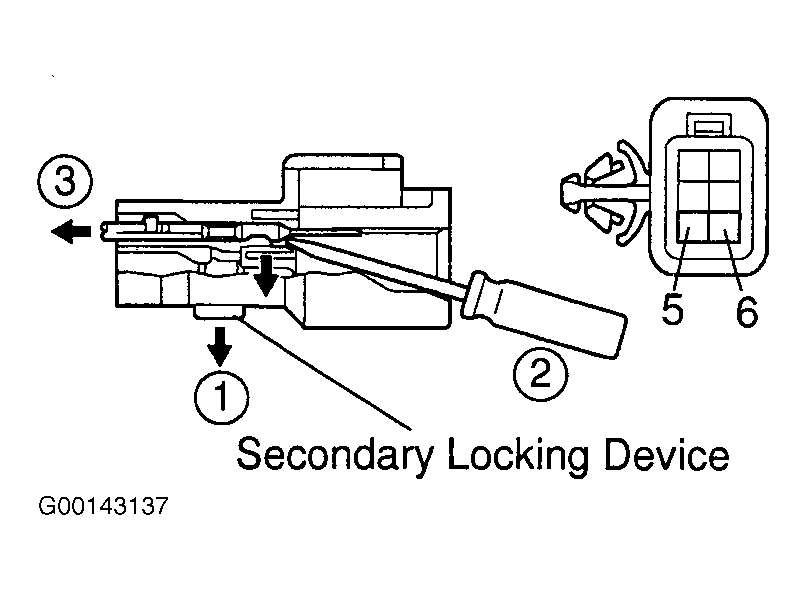

Fig 2: Removing Overdrive Terminals From Connector (Toyota Celica)
G00143137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

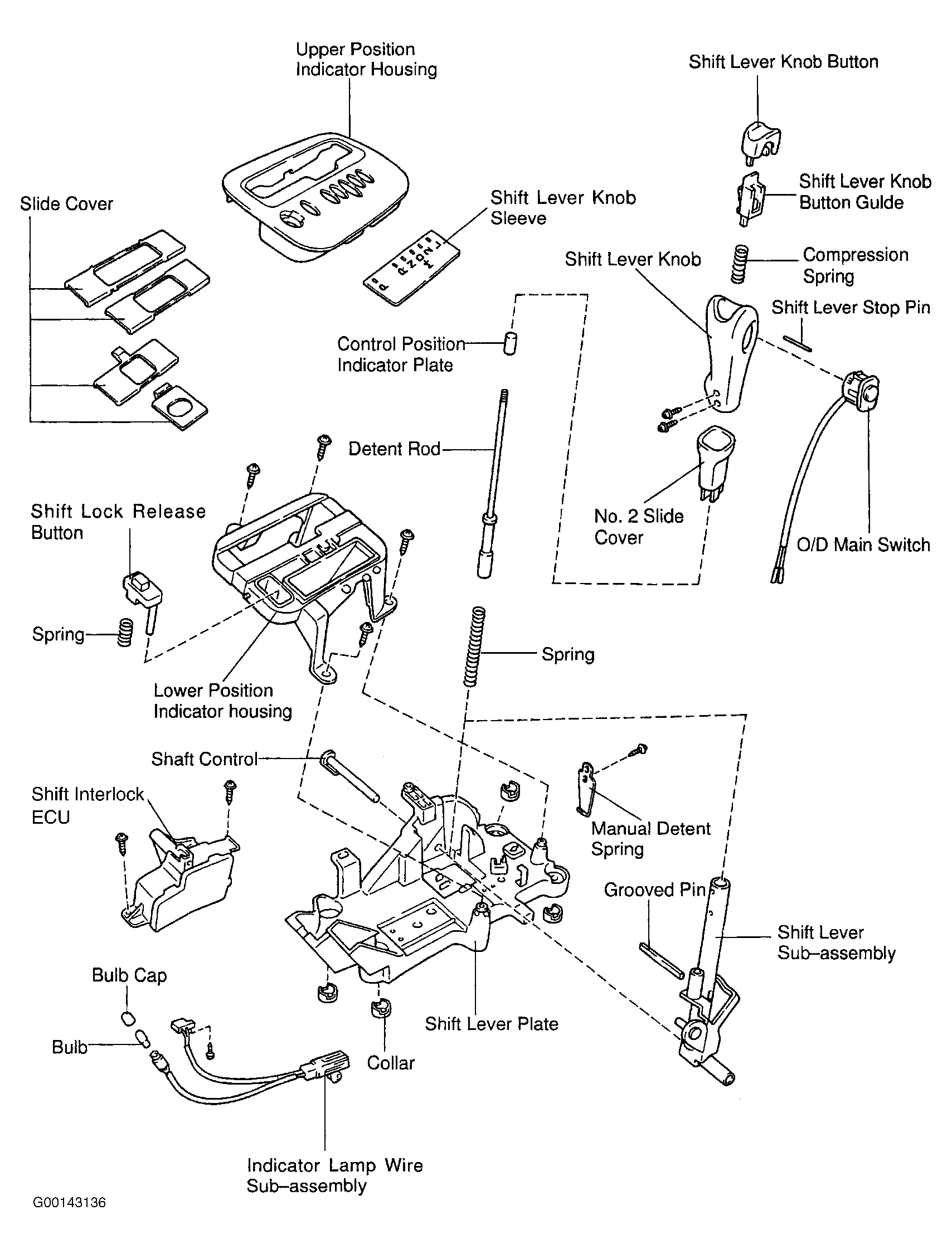

Fig 3: Exploded View Of Floor Shift Assembly (Toyota Celica)
G00143136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
