Removal & Installation (Toyota ECHO)
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

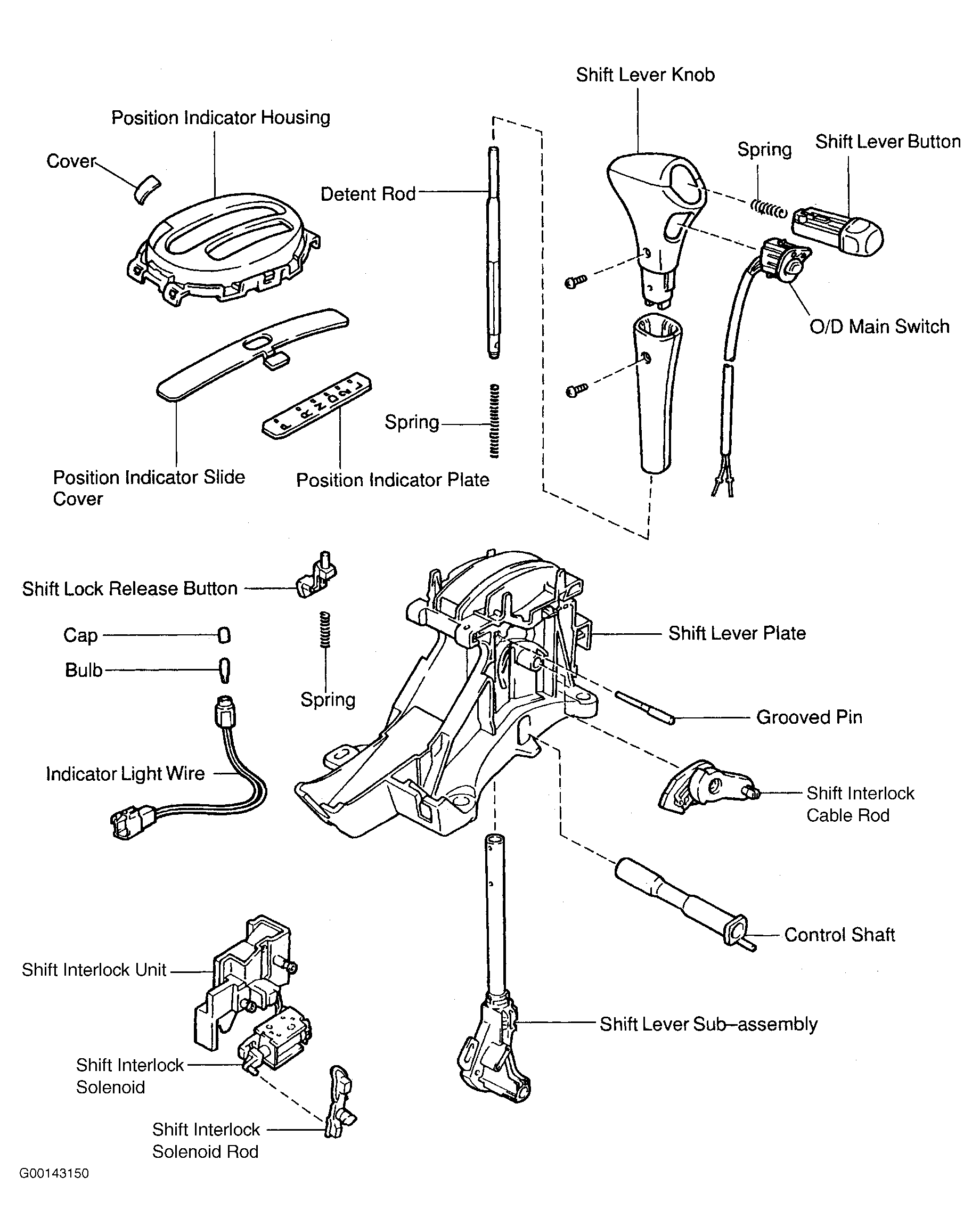

Remove floor shift assembly. See SHIFT INTERLOCK CABLE . Disassemble floor shift assembly See Fig 1. Remove the shift interlock ECU assembly and remove the shift interlock solenoid.
To assemble, install the shift interlock solenoid to the shift interlock ECU assembly. Attach the shift interlock ECU assembly to the floor shift assembly, see Fig 1. Install the floor shift assembly. See SHIFT INTERLOCK CABLE .
