Circuit Description
The Electric Throttle Control System (ETCS) is composed of the throttle motor to operate the throttle valve, the throttle position sensor to detect the opening angle of the throttle valve, the accelerator pedal position sensor to detect the accelerator pedal position, the ECM to control the ETCS, and the one valve type throttle body
The ECM controls the throttle motor to make the throttle valve opening angle properly in response to the driving condition
The throttle position sensor which is mounted on the throttle body detects the opening angle of the throttle valve, and it provides feed back to the ECM to control the throttle motor.

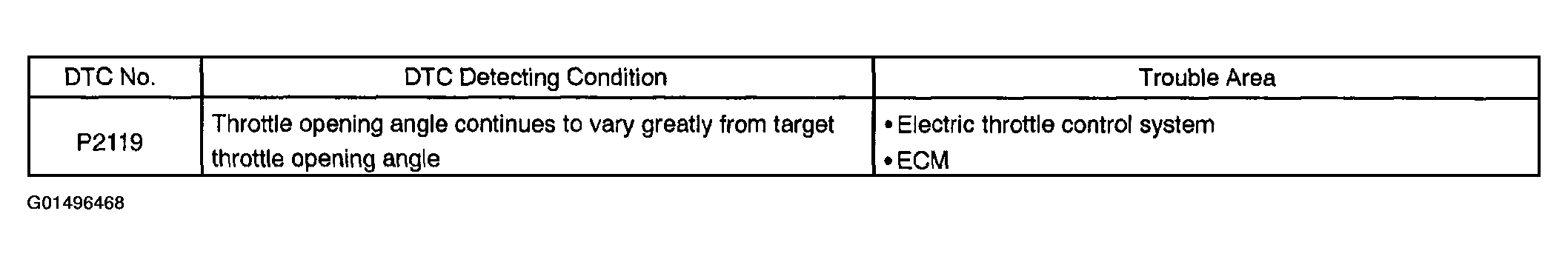

If the ETCS has a malfunction, the throttle valve is locket at a certain opening angle. Also, the whole electronically controlled throttle operation is cancelled until the system returns to normal and the ignition switch is turned OFF.
