Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

MULTI DISPLAY

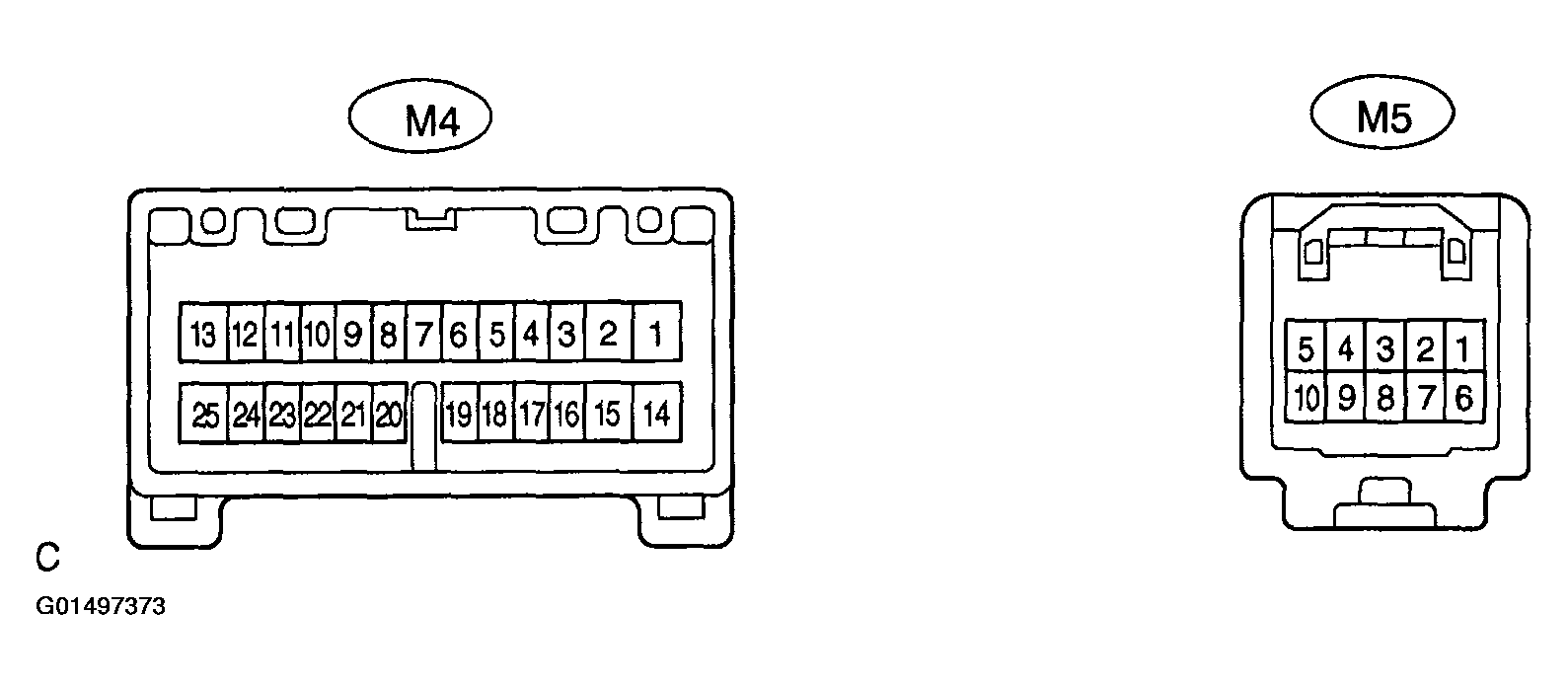

Fig 1: Identifying Terminals Of ECU Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

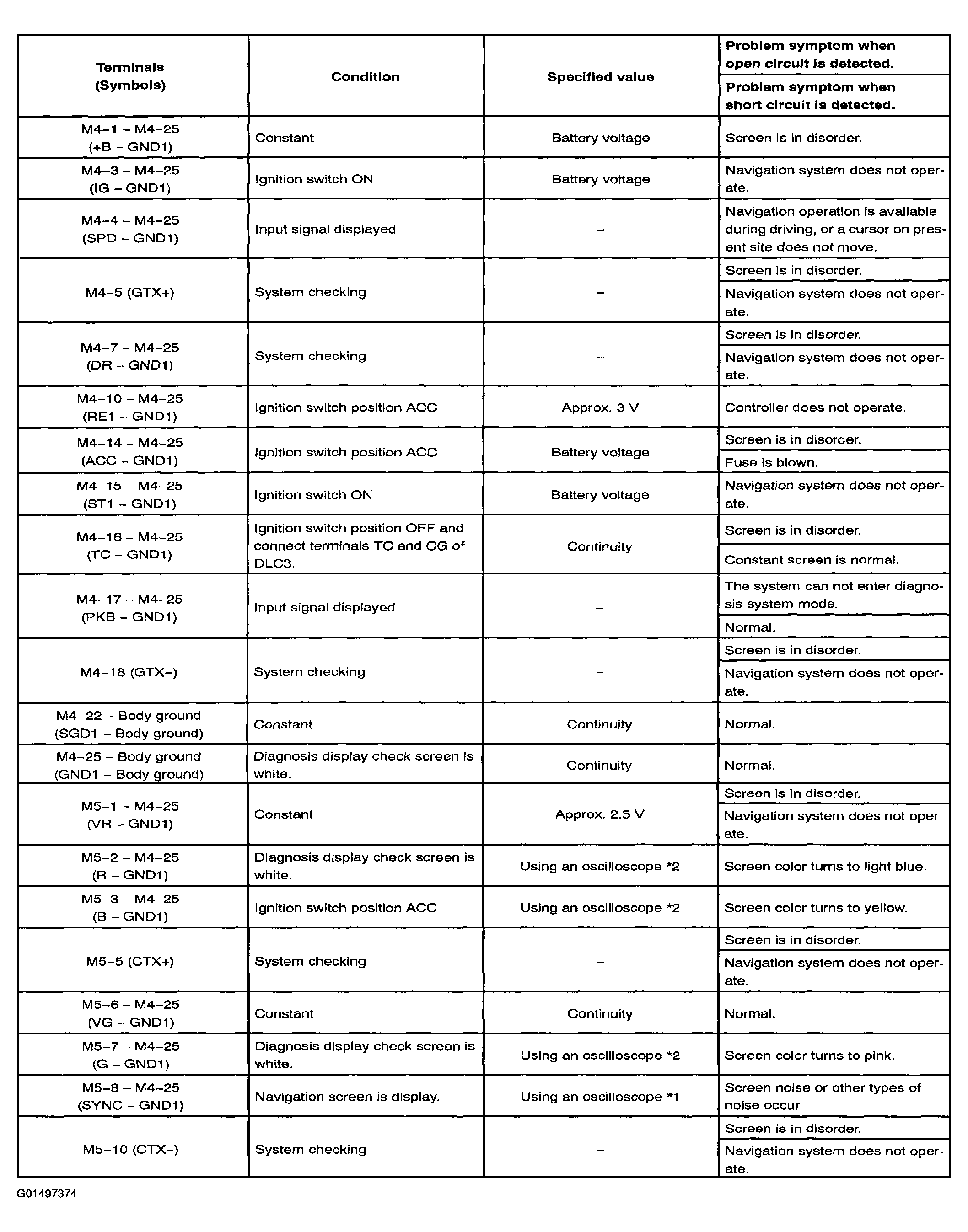

Fig 2: Terminals Of ECU Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NAVIGATION ECU

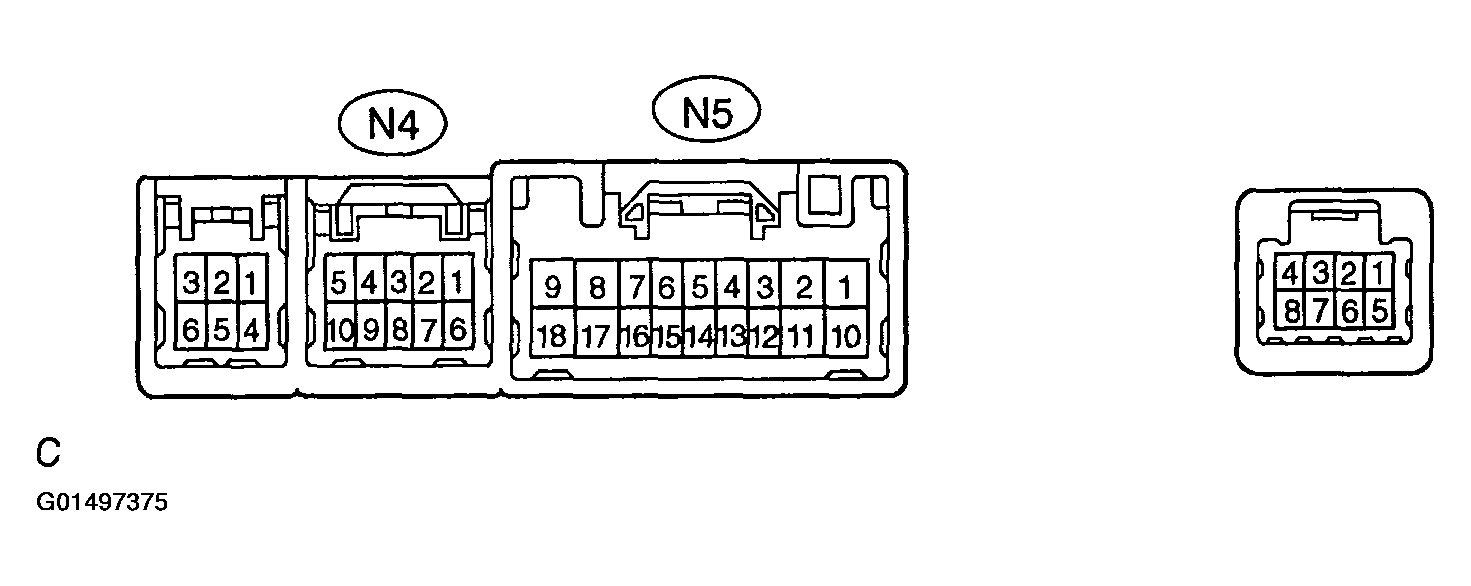

Fig 3: Identifying Navigation ECU Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

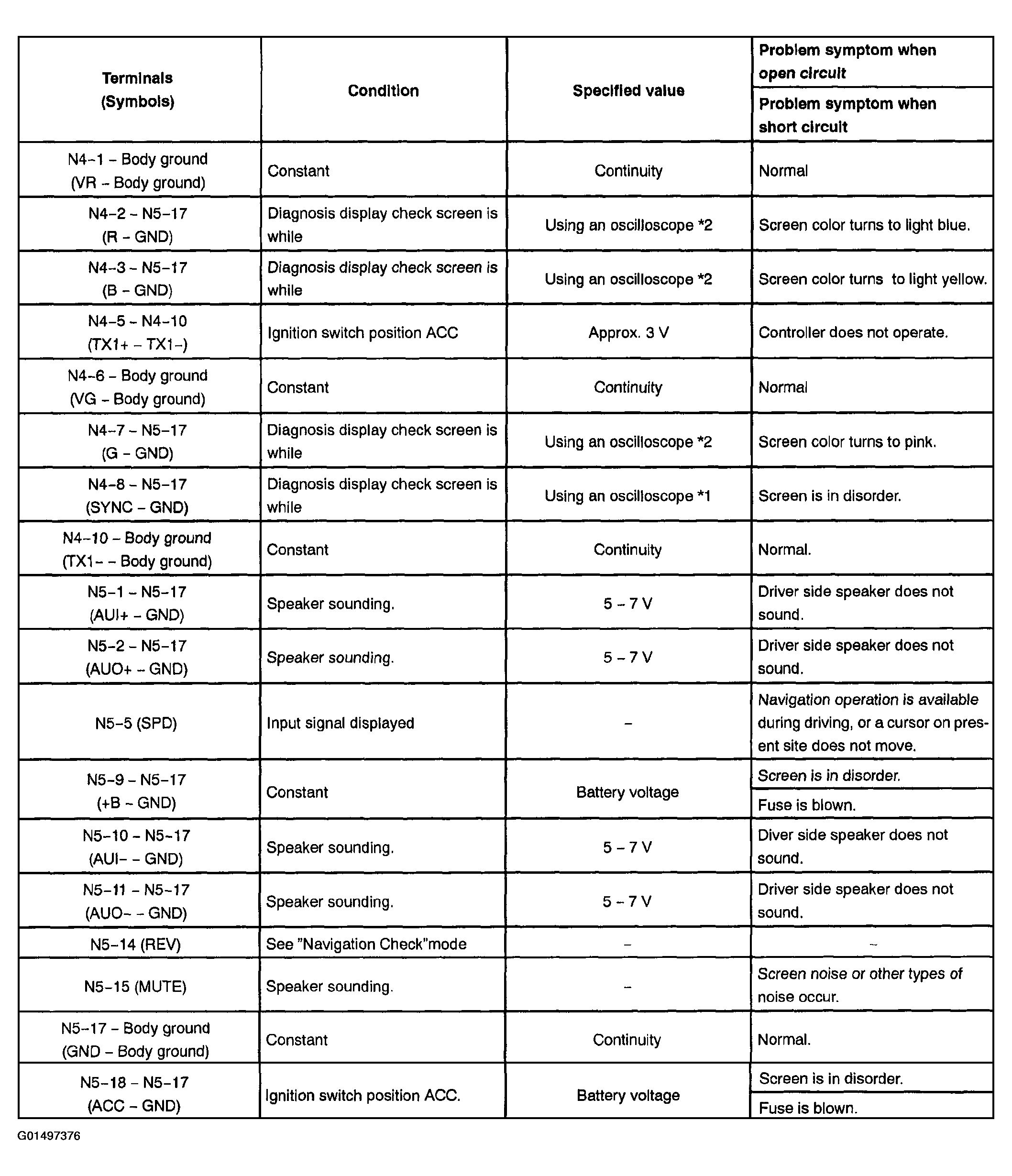

Fig 4: Navigation ECU Connector Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Oscilloscope

Wave*1

HINT:
- Terminal SYNC, EXSYNG-GND1
- Gauge set 500 mV/DIV 10 us/DIV
- Condition: Screen is display

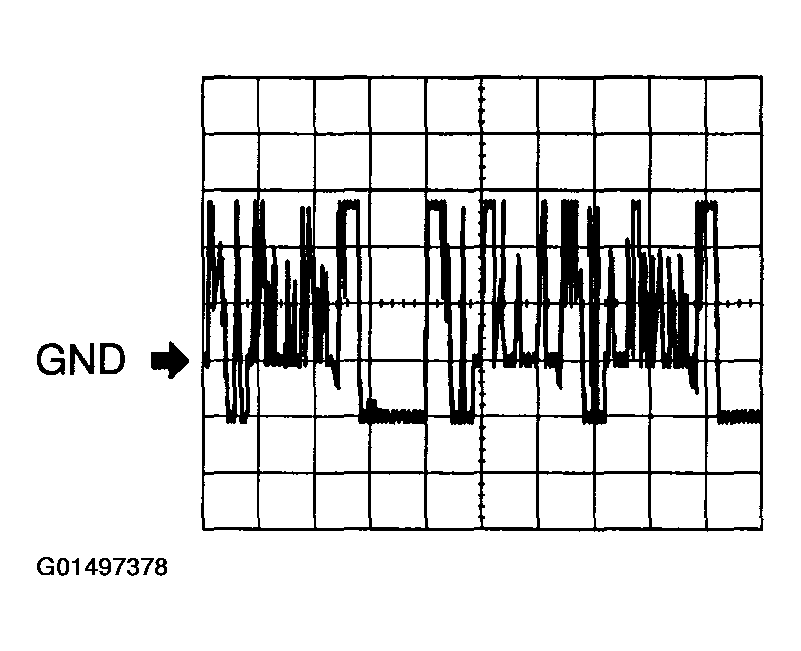

  Fig 5: Oscilloscope Graph (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Wave*2

HINT:
- Terminal R, G, B, E, <-> G, EX-B- GND1
- Gauge set 200 mV/DIV 10 us/DIV
- Condition: Screen changing

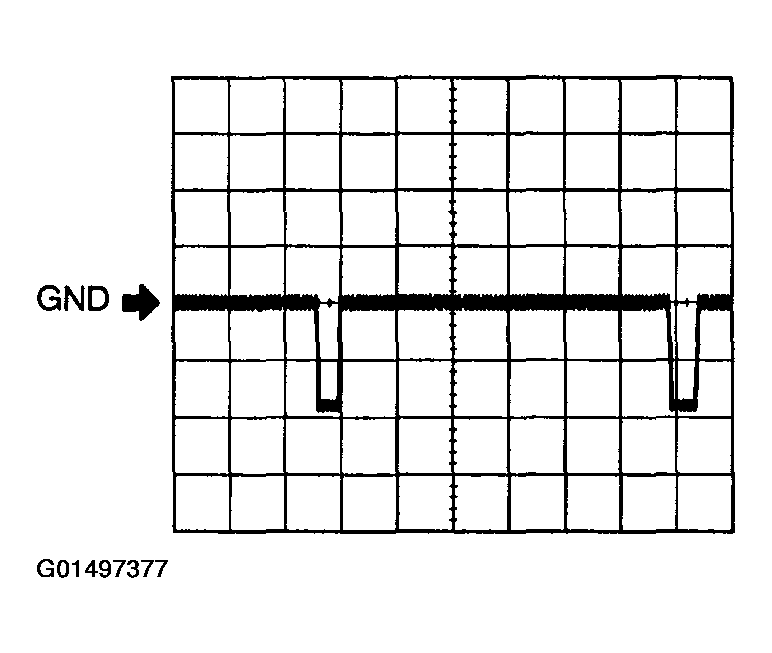

  Fig 6: Oscilloscope Graph (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
