Diagnosis & Repair

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect Toyota hand-held tester or scan tool to Data Link Connector (DLC) No. 3 at driver's side of instrument panel. See Figure. Disconnect EB1 electrical connector. See Figure. EB1 electrical connector is an in-line Dark Gray 4-pin electrical connector located near driver's side of cylinder head.
  2. Note wire terminal identification in male side of EB1 electrical connector. See Fig 2. Remove wires from terminals No. 1 and 2 in male side of EB1 electrical connector. Reverse wire location for terminals No. 1 and 2 and reinstall wires in male side of EB1 electrical connector. Reconnect EB1 electrical connector.
  3. Turn ignition on and then turn hand-held tester or scan tool on. Using Toyota hand-held tester or scan tool, clear DTCs from ECM. Start engine and warm engine to normal operating temperature. Suddenly accelerate engine to 4000 RPM 3 consecutive times. Recheck for DTCs. If DTC P0325 still exists and DTC did not change from original DTC of P0325, go to next step. If DTC changes from original DTC of P0325 to P0330, go to step  5.
  4. Check for open and short in wiring harness and electrical connectors between EB1 electrical connector and ECM for knock sensor No. 1. See WIRING DIAGRAMS article. If wiring harness or electrical connector is defective, repair as necessary. If wiring harness and electrical connectors are okay, replace ECM.
  5. Check for open and short in wiring harness and electrical connectors between EB1 electrical connector and knock sensor No. 1. See WIRING DIAGRAMS article. Knock sensor No. 1 is located on cylinder block, just below cylinder head. See Fig 3. If wiring harness or electrical connector is defective, repair as necessary. If wiring harness and electrical connectors are okay, replace knock sensor No. 1. See KNOCK SENSOR under ENGINE SENSORS & SWITCHES in REMOVAL, OVERHAUL & INSTALLATION - V6 & V8 article.

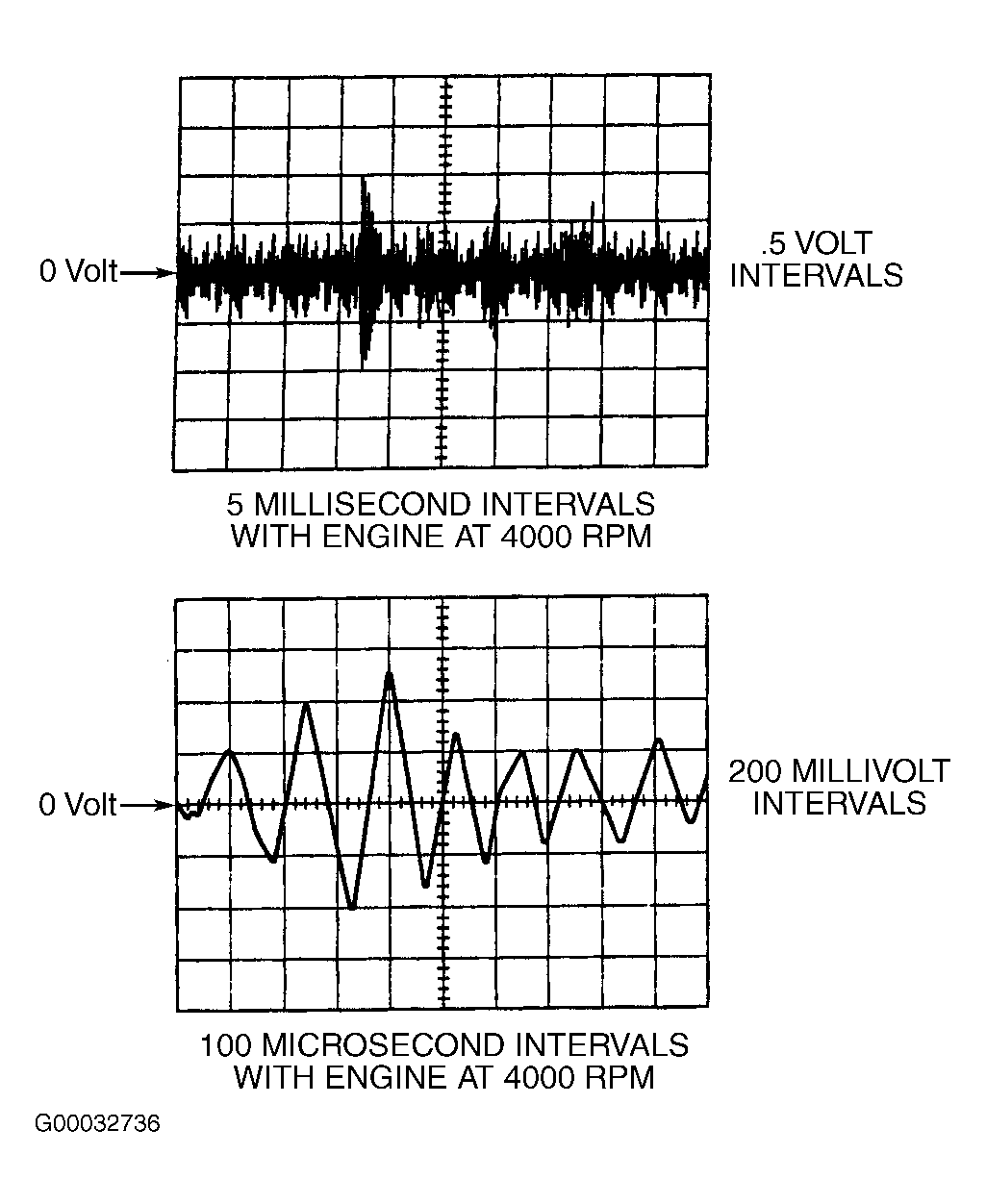

    Fig 1: Identifying Knock Sensor Waveform Patterns
    G00032736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Identifying EB1 Electrical Connector Terminals
    G95C31379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Locating Knock Sensors
    G97H06883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
