Power Point Socket ASSY RR: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS
Installation is in the reverse order of removal.

REMOVE SHIFT LEVER KNOB SUB-ASSY (See COMPONENTS
REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (See COMPONENTS )
REMOVE CONSOLE BOX SUB-ASSY REAR W/CONSOLE DOOR (See COMPONENTS )
REMOVE POWER POINT SOCKET ASSY RR

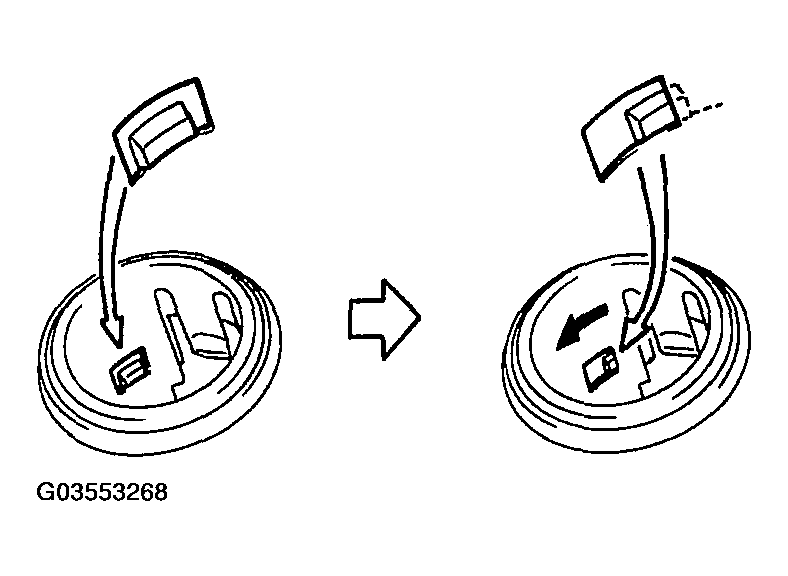

1. Turn the socket in the circumference direction as shown in Fig 1 , disengage the claw between the socket and the power point socket cover, and push out the socket to the room side.

  Fig 1: Removing Power Point Socket Assy RR
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER POINT SOCKET ASSY RR
1. Align the socket with the notch on the power point socket cover RR and install the power socket assy RR by pushing it in as hard as possible.
