Airbag Squib-Driver 2 - Yellow/Tan 2 Way Connector End View

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

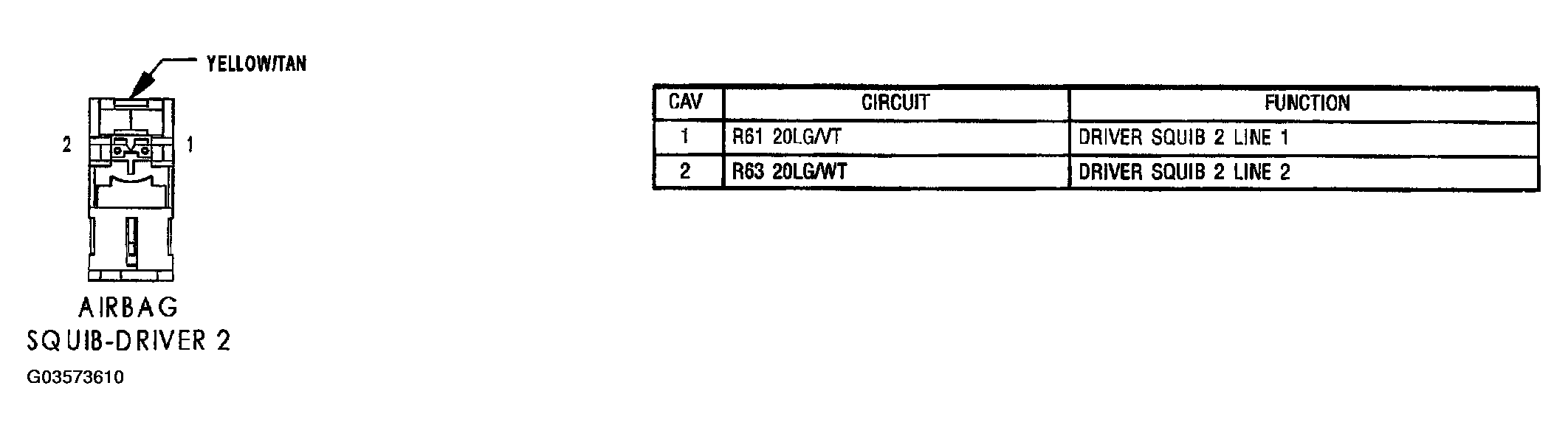

Fig 1: Driver Airbag Squib 2 Connector End View
G03573610Courtesy of DAIMLERCHRYSLER CORP.
