Transmission Solenoid/Pressure Switch Assembly - Black 8 Way Connector End View
WARNING:
This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

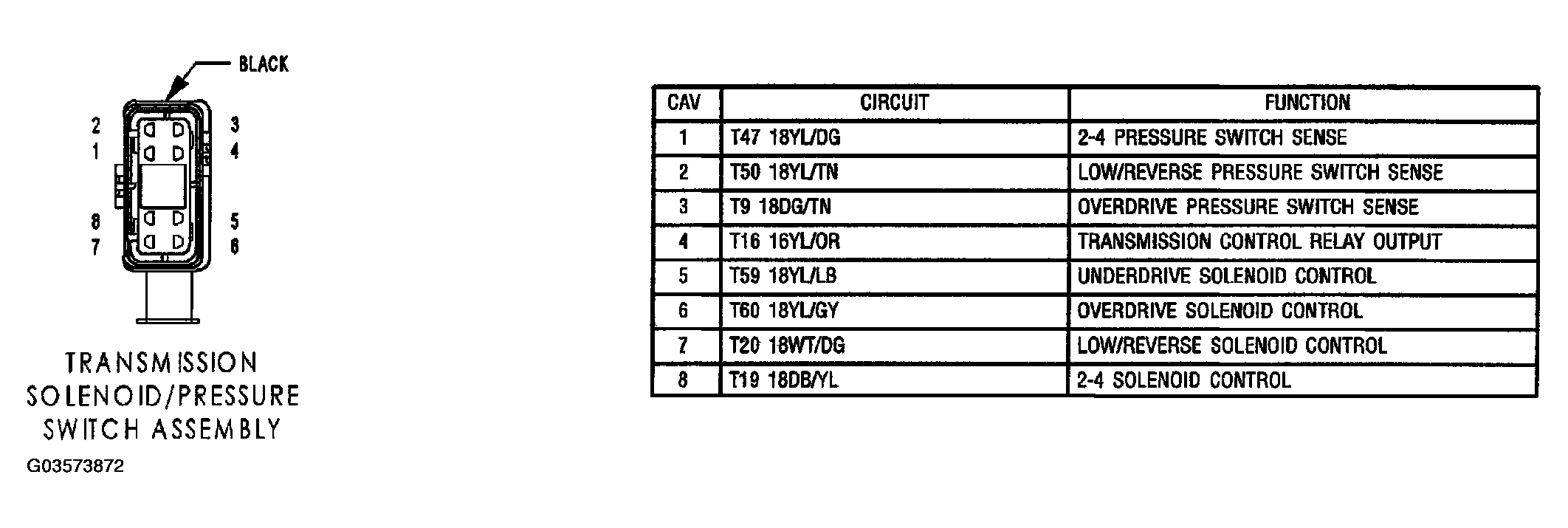

Fig 1: Transmission Solenoid / Pressure Switch Assembly Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
