Rear Wheel Alignment (4WD): Adjustment

WARNING: This page is about a different variant/trim than selected.

INSPECT TIRE (See INSPECTION )
MEASURE VEHICLE HEIGHT (See FRONT WHEEL ALIGNMENT (MAY, 2003) )
NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
INSPECT TOE-IN

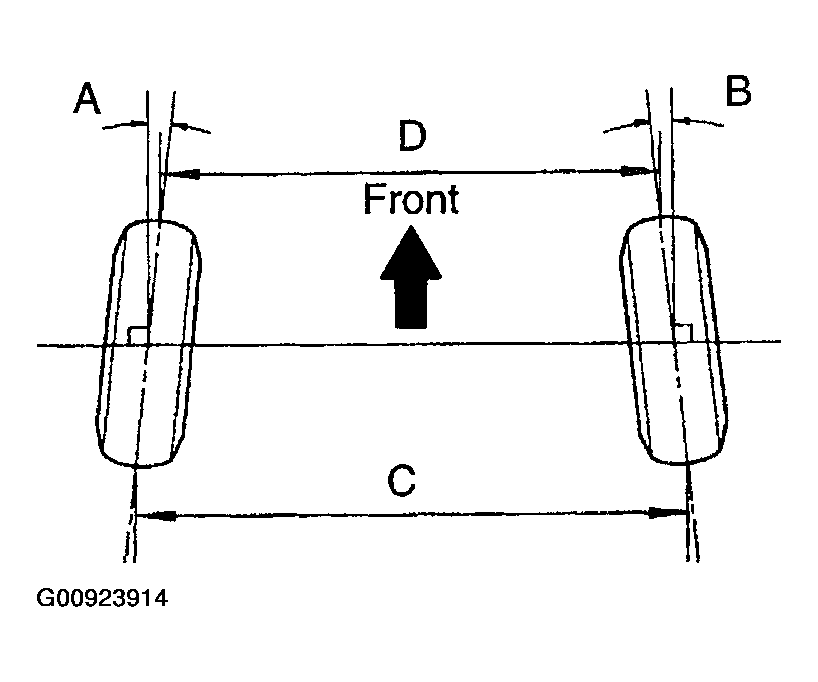

Fig 1: Inspecting Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specified value, inspect and replace the suspension parts as necessary.

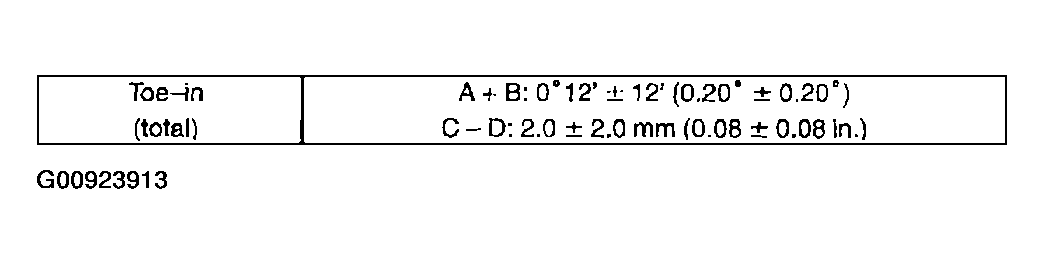

Fig 2: Toe-In Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CAMBER
1. Install the camber-caster-kingpin gauge or position vehicle on wheel alignment tester.
2. Inspect the camber.
Camber:

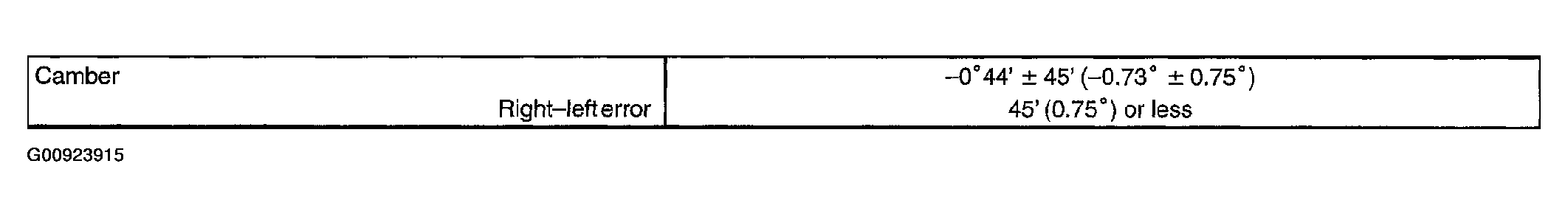

Fig 3: Camber Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear and replace them if necessary because camber is not adjustable.
ADJUST CAMBER AND TOE-IN
1. Measure the distance from the LH lower suspension arm bracket set bolt to the RH axle carrier rear side set bolt as shown in Fig 4 .
2. Measure the distance from the RH lower suspension arm bracket set bolt to the LH axle carrier rear side set bolt as shown in Fig 4 .

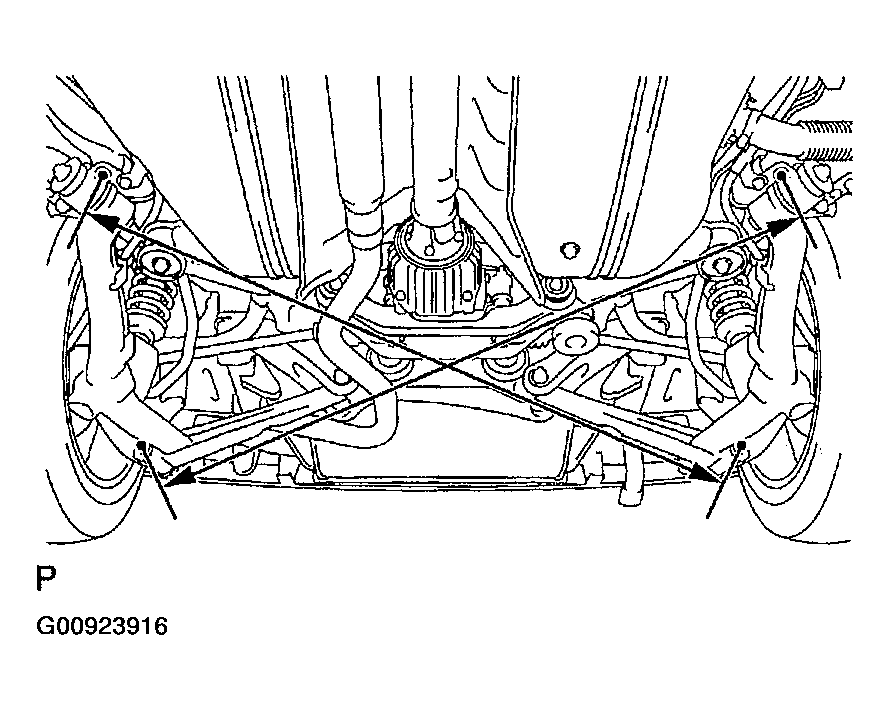

  Fig 4: Measuring Distance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Length difference: 6.0 mm (0.236 in.) or less
3. Loosen the upper and lower suspension arm adjusting cam set nuts.
4. Adjust the camber and toe-in by turning the adjusting cams.

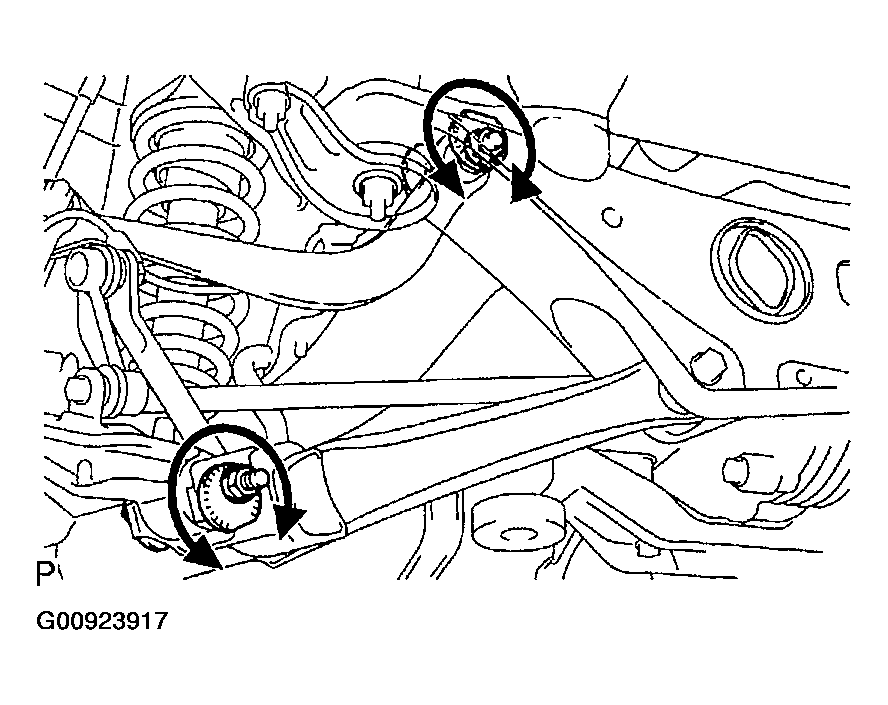

  Fig 5: Adjusting Camber & Toe-In By Turning Adjusting Cams
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Try to adjust the camber and toe- in to the center of the specified values.
5. Tighten the upper and lower suspension arm adjusting cam set nuts.
  1. Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)

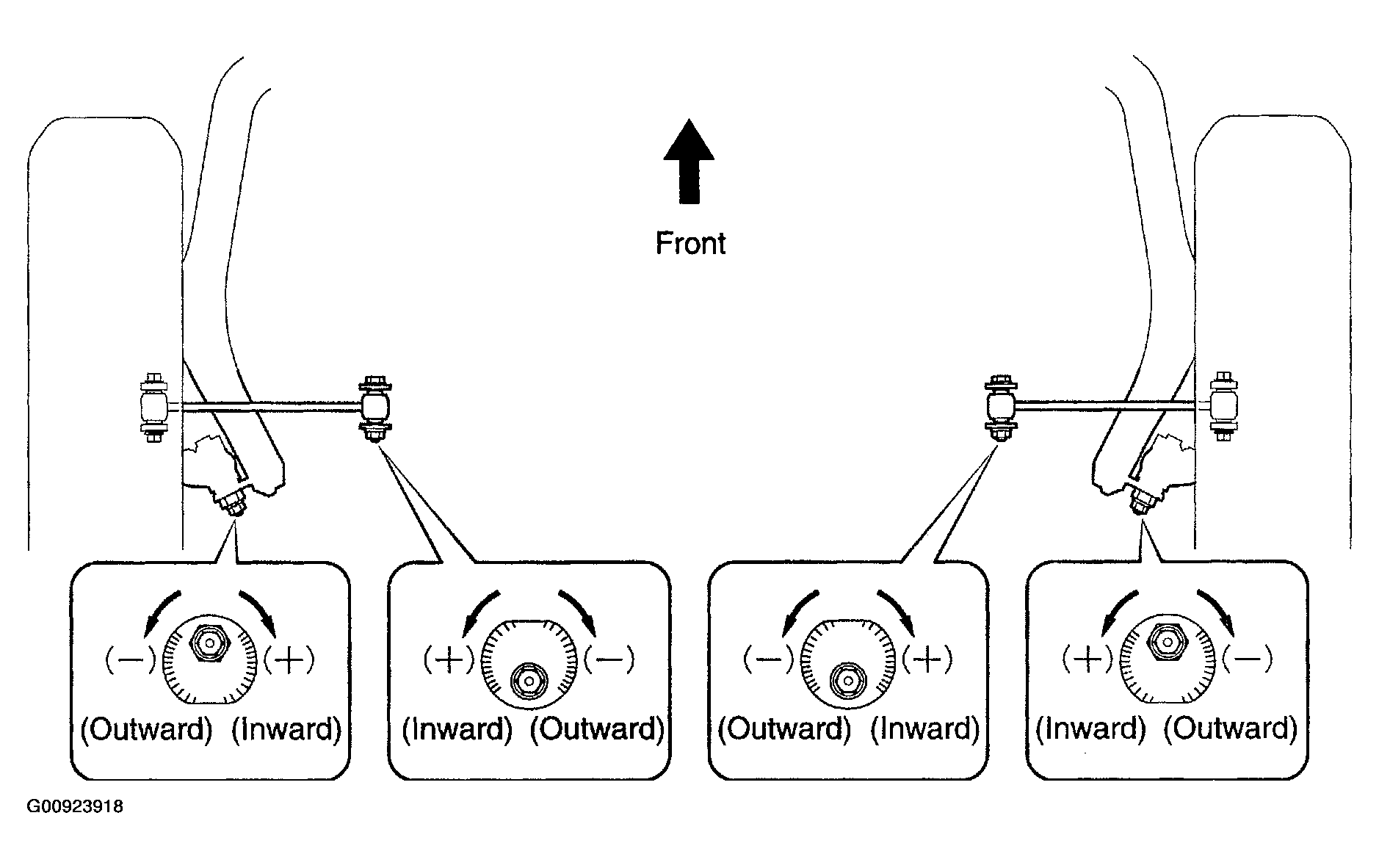

  Fig 6: Tightening Upper & Lower Suspension Arm Adjusting Cam Set Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. How to read adjusting chart (using examples).
  1. Measure the present alignment.
    1. Example:
      1. Camber (RH): +0°01' (+0.02°)
      2. Camber (LH): -1°29' (-1.48°)
      3. Toe-in (total): IN 6.0 mm (0.236 in.)
  2. Mark the difference between the standard value (A) and the measured value (B) on the adjustment chart.
    1. Standard value:
      1. Camber: -0°44' (-0.73°)
      2. Toe-in (total): IN 2.0 mm (0.079 in.)
      3. Formula: A - B = C
      4. Camber: (RH): -0°44' - (+0°01') = -0°45'
      5. Camber: (LH): -0°44' - (-1°29') = 0°45'
      6. Toe-in (total): IN 2.0 - IN 6.0 = OUT 4.0
      7. Toe-in (each side): OUT 2.0

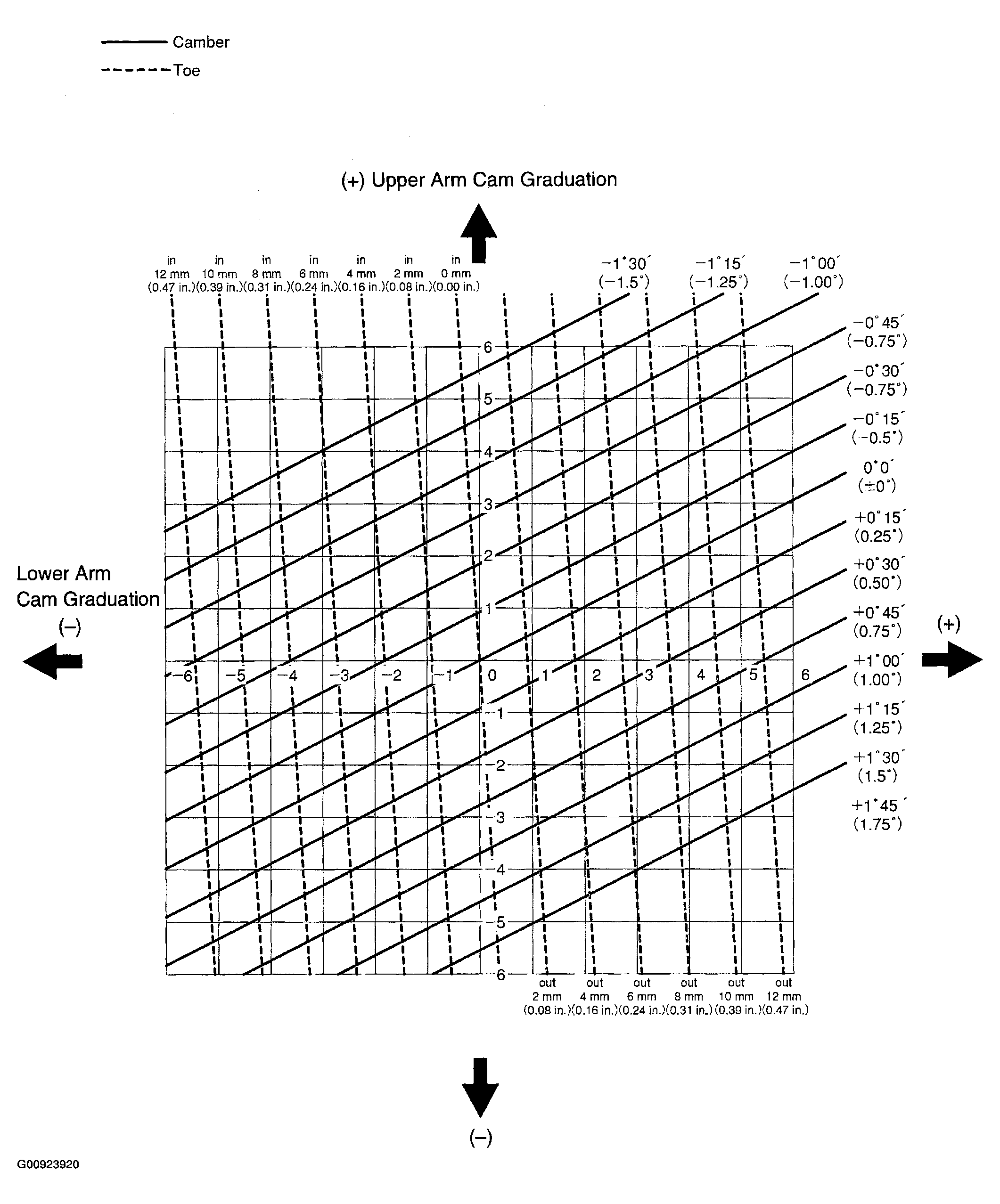

      Fig 7: Camber & Toe Graph (Example)
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. As shown in the example chart, read the distance from the marked point to center of the chart, and adjust the upper and/or lower arm adjusting cams accordingly.
    1. Amount to turn adjusting cams (by graduation):
      1. Upper arm cam (RH): + (Inward) 3.2
      2. Lower arm cam (RH): + (Inward) 0.8
      3. Upper arm cam (LH): - (Outward) 2.3
      4. Lower arm cam (LH): + (Inward) 1.0

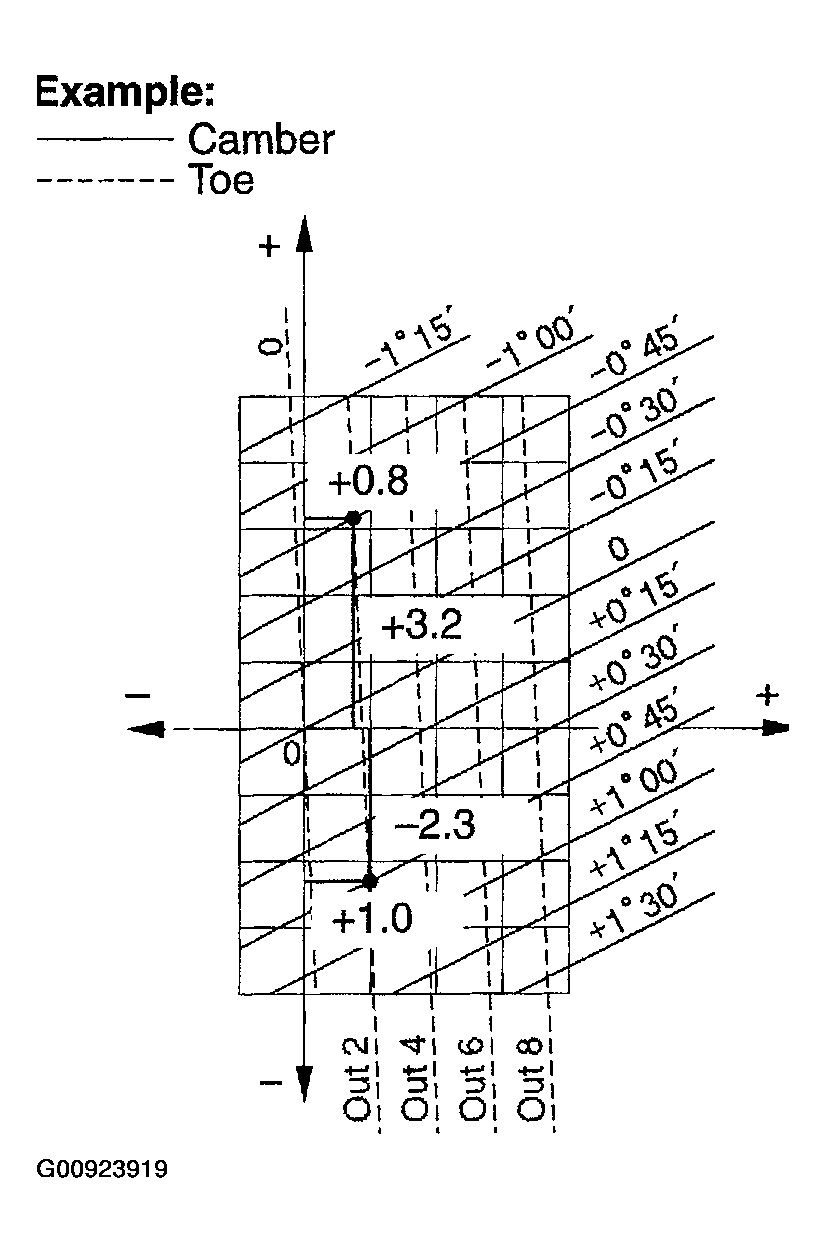

    Fig 8: Camber & Toe Graph (Adjusting)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
