Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0115 DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT, DTC P0117 ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT, DTC P0118 ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT .

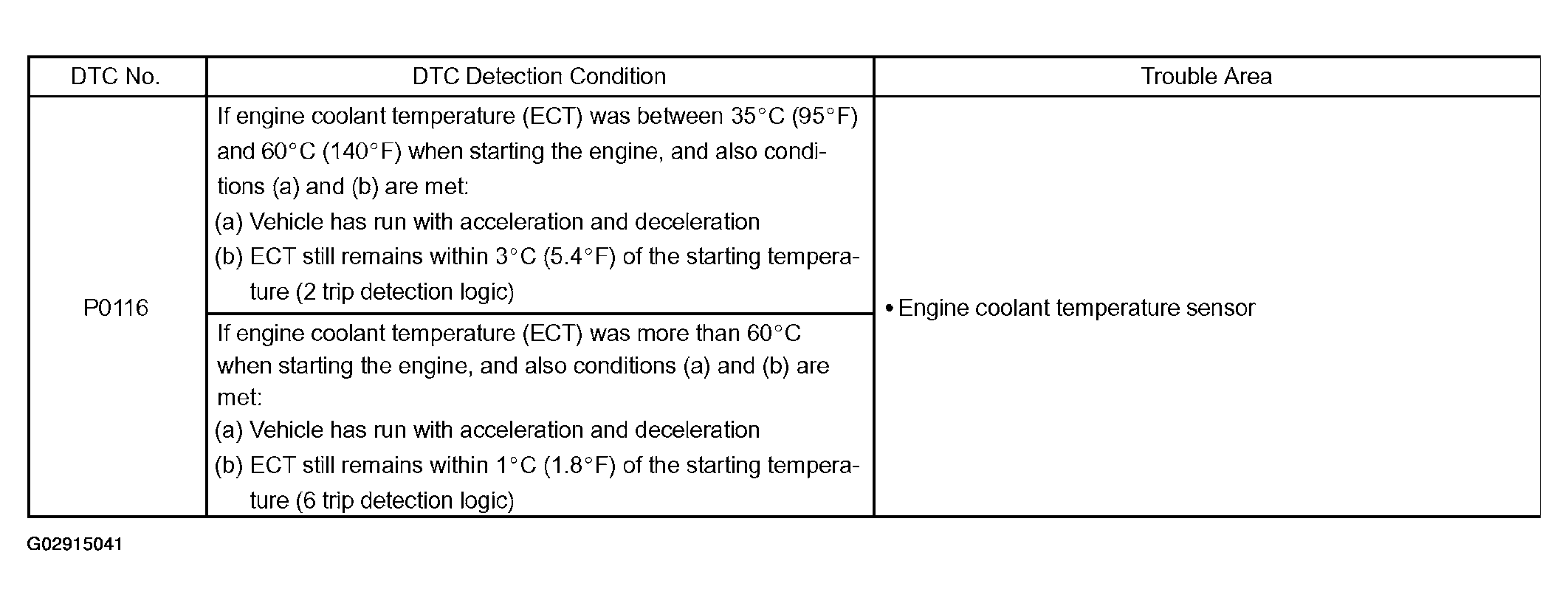

Fig 1: DTC Detection Condition & Trouble Area Chart
G02915041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
