Section 4 (Engine Control System (SFI) - Diagnostics (2ZZ-GE))
>>
DTC P0136: Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2)
>>
Typical Enabling Conditions
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Typical Enabling Conditions
WARNING:
This page is about a different variant/trim than selected.

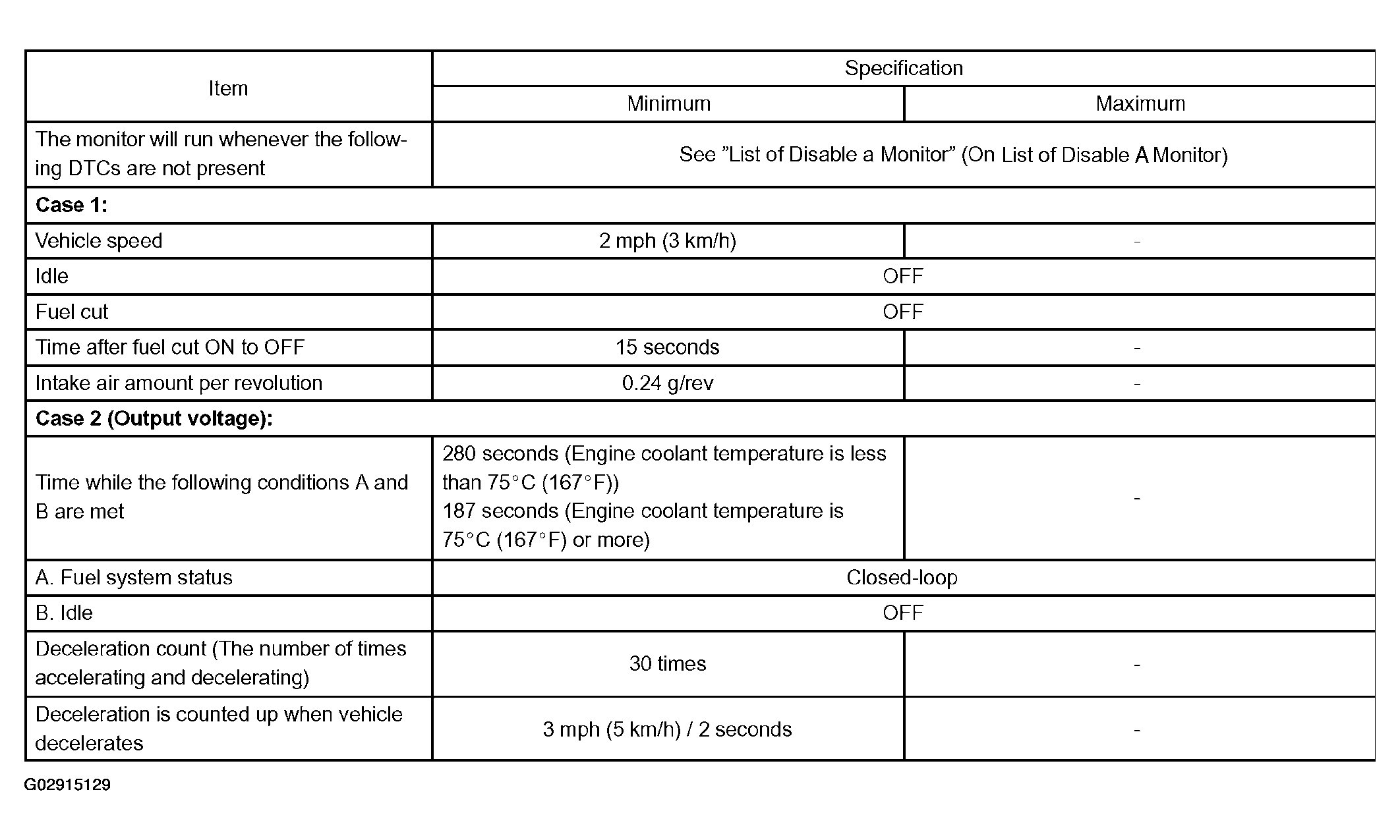

Fig 1: Typical Enabling Conditions Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
