Section 4 (Engine Control System (SFI) - Diagnostics (2ZZ-GE))
>>
DTC P0171: System Too Lean (Bank 1), DTC P0172: System Too Rich (Bank 1)
>>
Monitor Strategy
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Strategy
WARNING:
This page is about a different variant/trim than selected.

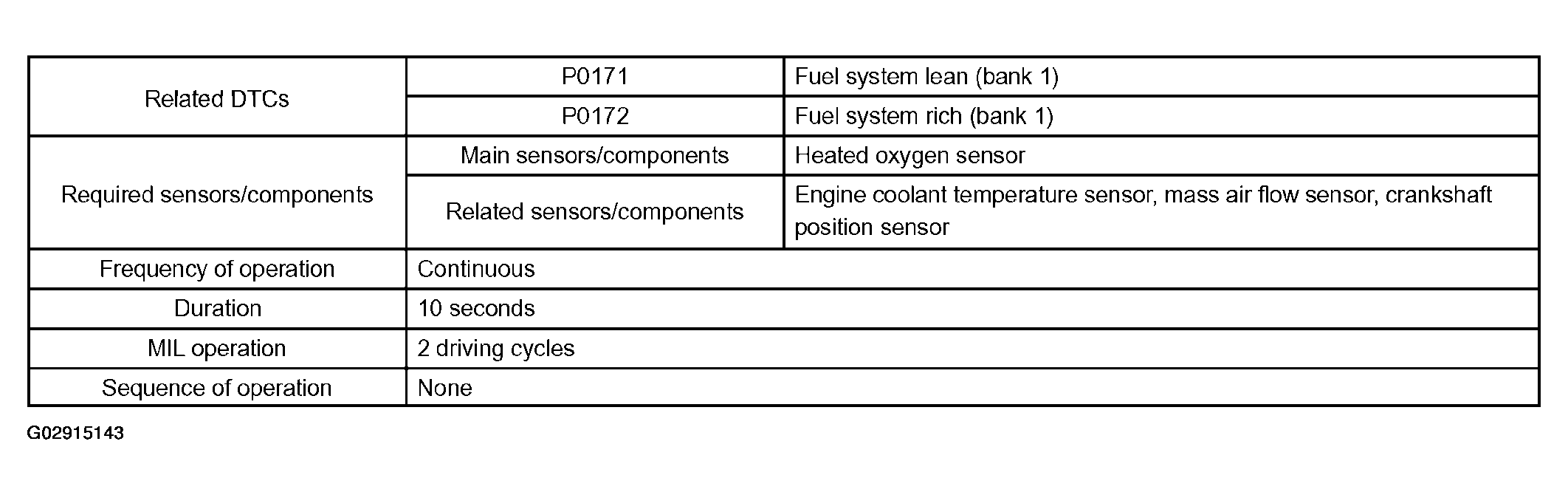

Fig 1: Monitor Strategy Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
