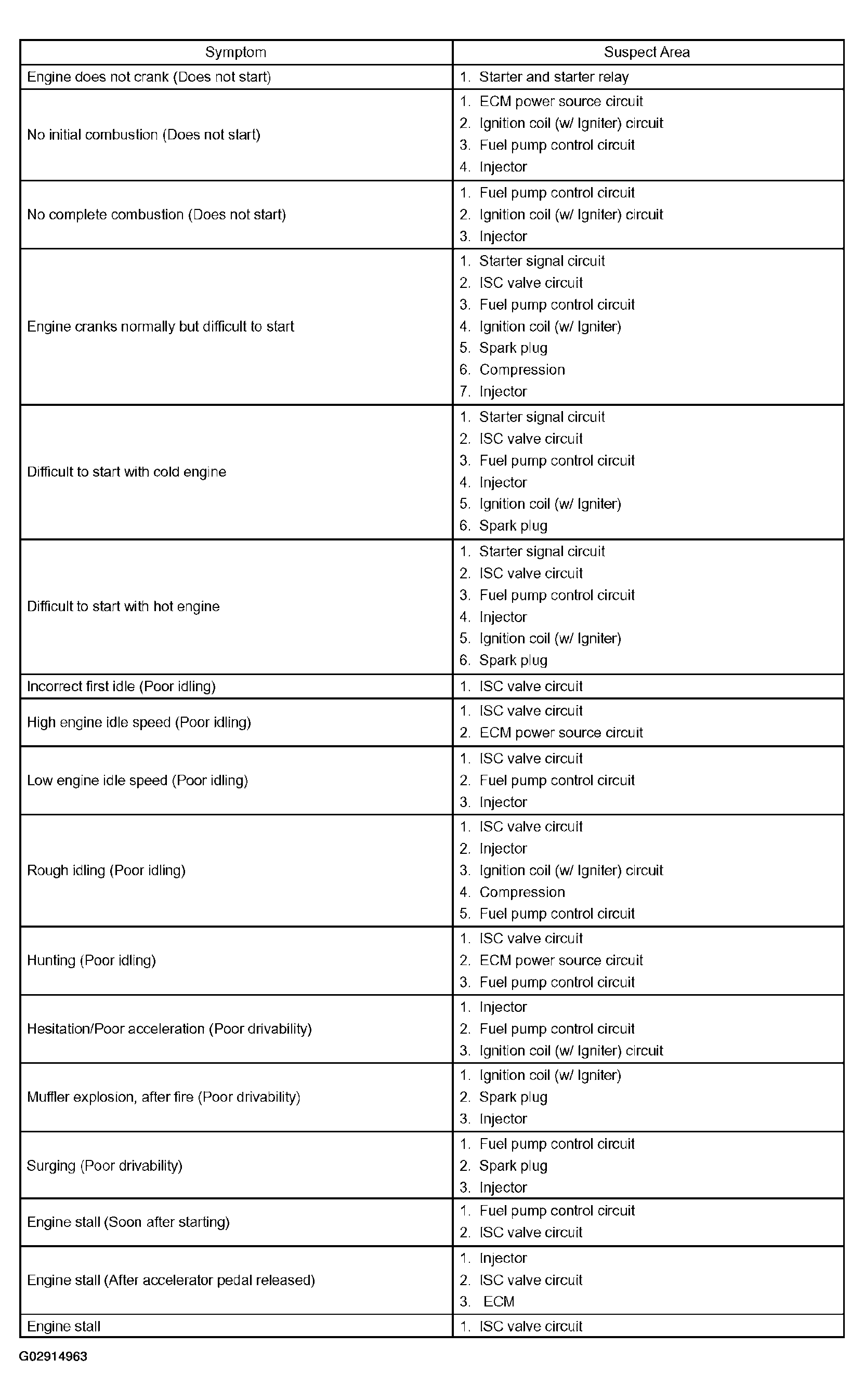

Problem Symptoms Table
WARNING: This page is about a different variant/trim than selected.
When the malfunction code is not confirmed in the DTC check and the problem still can not be confirmed in the basic inspection, proceed to this problem symptoms tables and troubleshoot according to the numbered order given in Fig 1.
