Pressure Sensor (Turbo Pressure Sensor): Replacement

WARNING: This page is about a different variant/trim than selected.

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE PRESSURE SENSOR (TURBO PRESSURE SENSOR)
1. Unfasten the clip, then separate the wire harness protector.

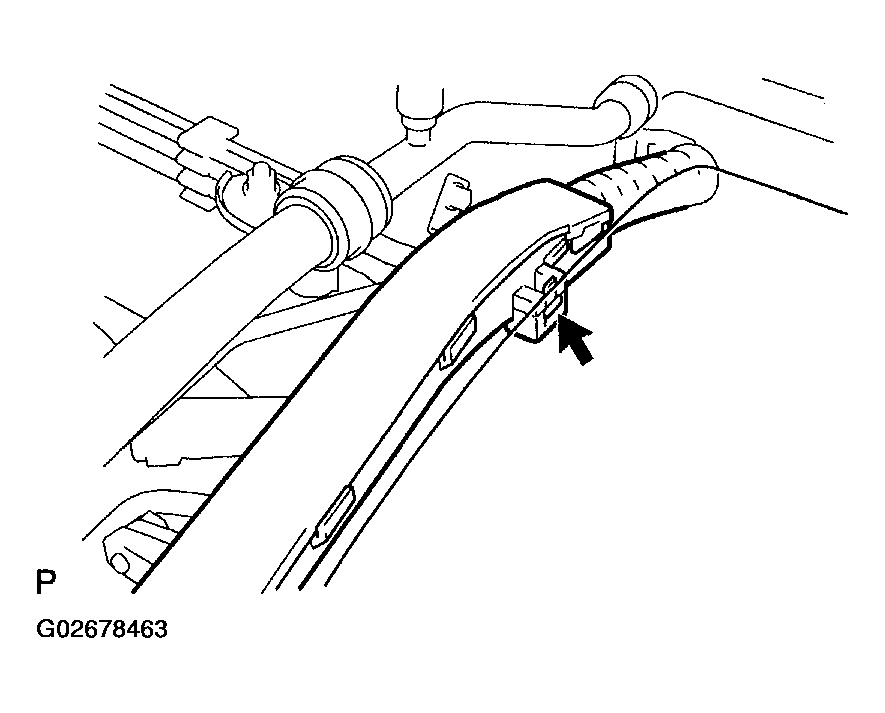

  Fig 1: Unfastening Clip And Separate Wire Harness Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the pressure sensor (turbo pressure sensor) connector.
3. Remove the 2 bolts.

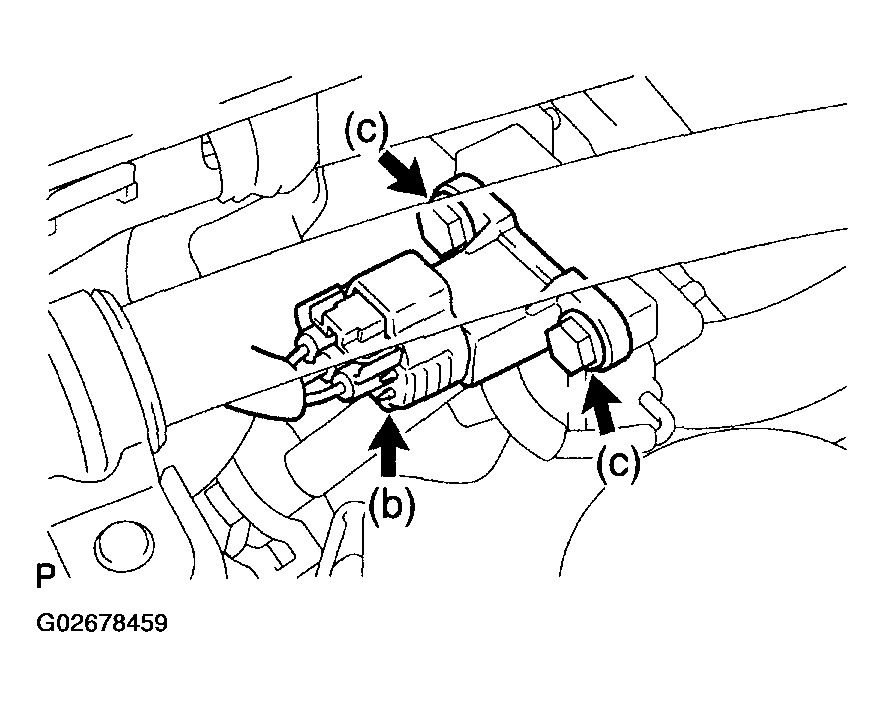

  Fig 2: Disconnecting Pressure Sensor (Turbo Pressure Sensor) Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the vacuum hose, then remove the pressure sensor (turbo pressure sensor).

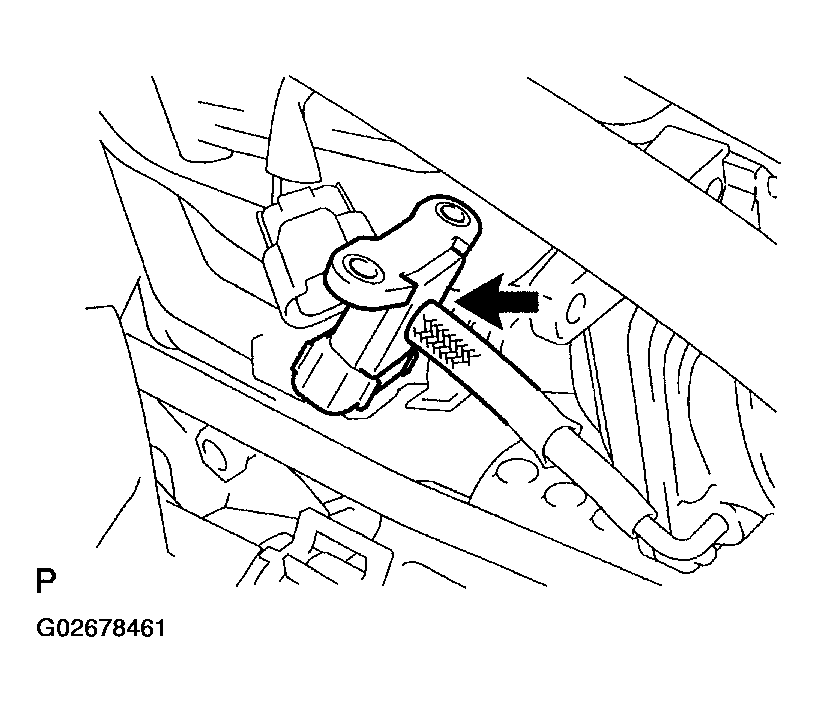

  Fig 3: Disconnecting Vacuum Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PRESSURE SENSOR (TURBO PRESSURE SENSOR)
1. Connect the vacuum hose to the pressure sensor (turbo pressure sensor).

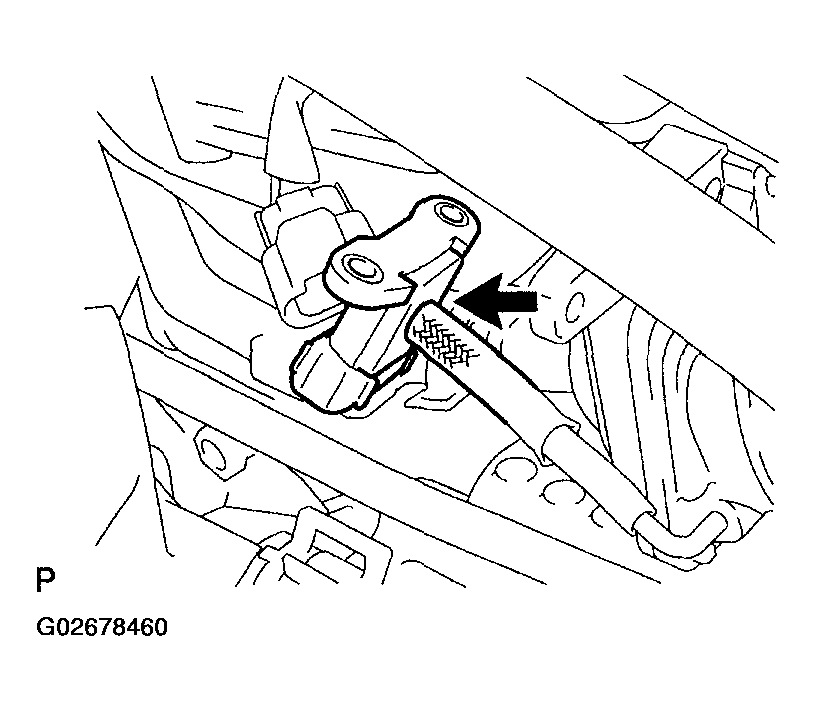

  Fig 4: Connecting Vacuum Hose To Pressure Sensor (Turbo Pressure Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the pressure sensor (turbo pressure sensor) with the 2 bolts.
  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
3. Connect the pressure sensor (turbo pressure sensor) connector.

  Fig 5: Connecting Pressure Sensor (Turbo Pressure Sensor) Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the wire harness protector.

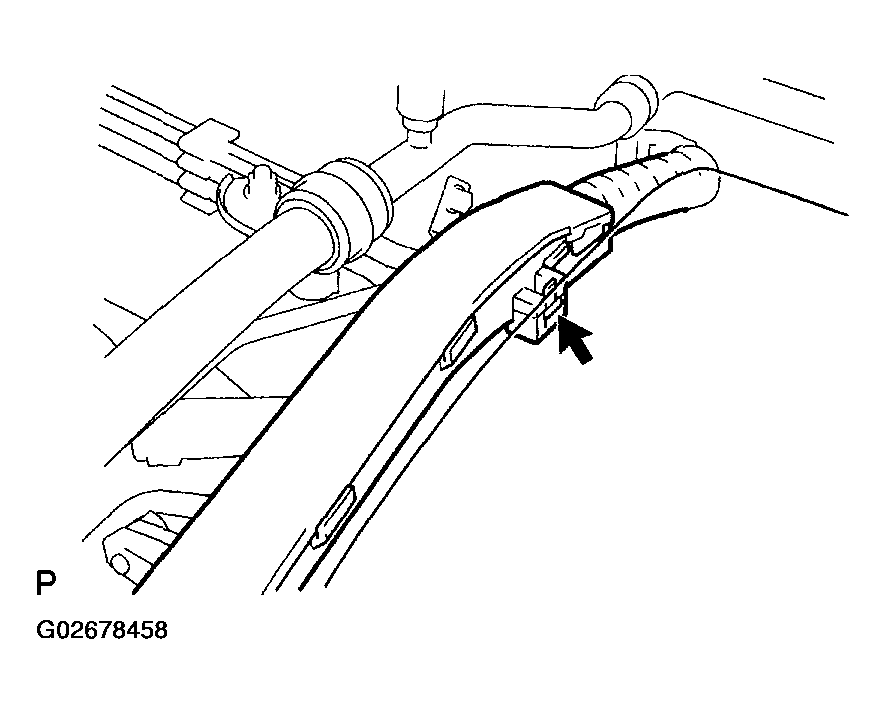

  Fig 6: Installing Wire Harness Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT BATTERY NEGATIVE TERMINAL
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
