Navigation Antenna Assembly: Replacement

NOTE:

REMOVE INSTRUMENT PANEL SUB-ASSY UPPER (See REPLACEMENT )
NOTE:
Refer to the instructions for removal of the instrument panel sub-assy upper.
REMOVE NAVIGATION ANTENNA ASSY
1. Disconnect the connector, remove the navigation antenna cord sub-assy.
2. Remove the 2 screws and navigation antenna assy from the defroster nozzle assy.

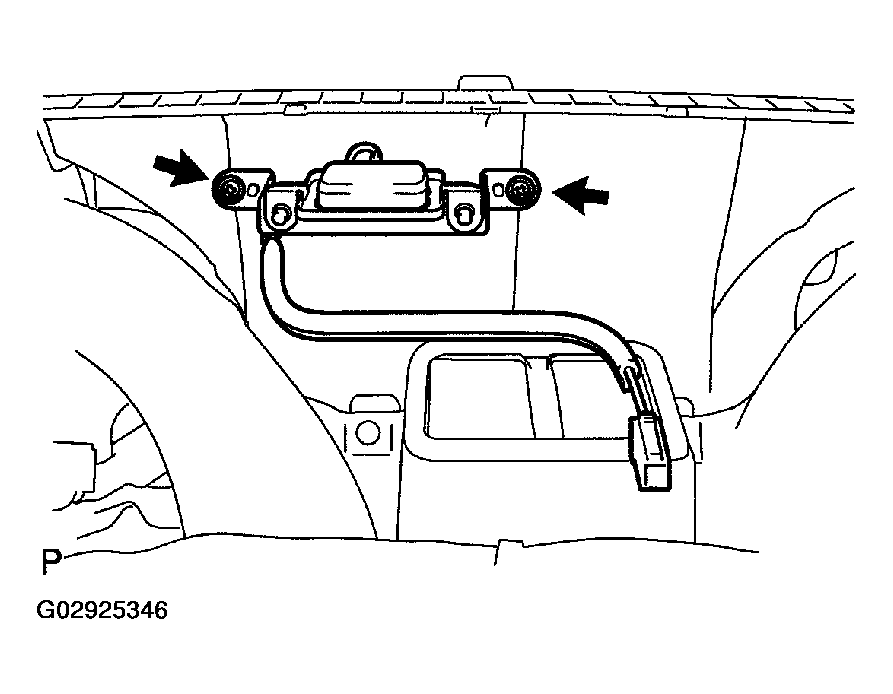

  Fig 1: Removing Navigation Antenna Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SUB-ASSY UPPER (See REPLACEMENT )
