Body & Frame
>>
Door Locks
>>
Power Door Lock Control System - Diagnostics
>>
Key Confinement Prevention Function Does Not Work Properly (Unlock Warning Switch Circuit)
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Key Confinement Prevention Function Does Not Work Properly (Unlock Warning Switch Circuit): Wiring Diagram

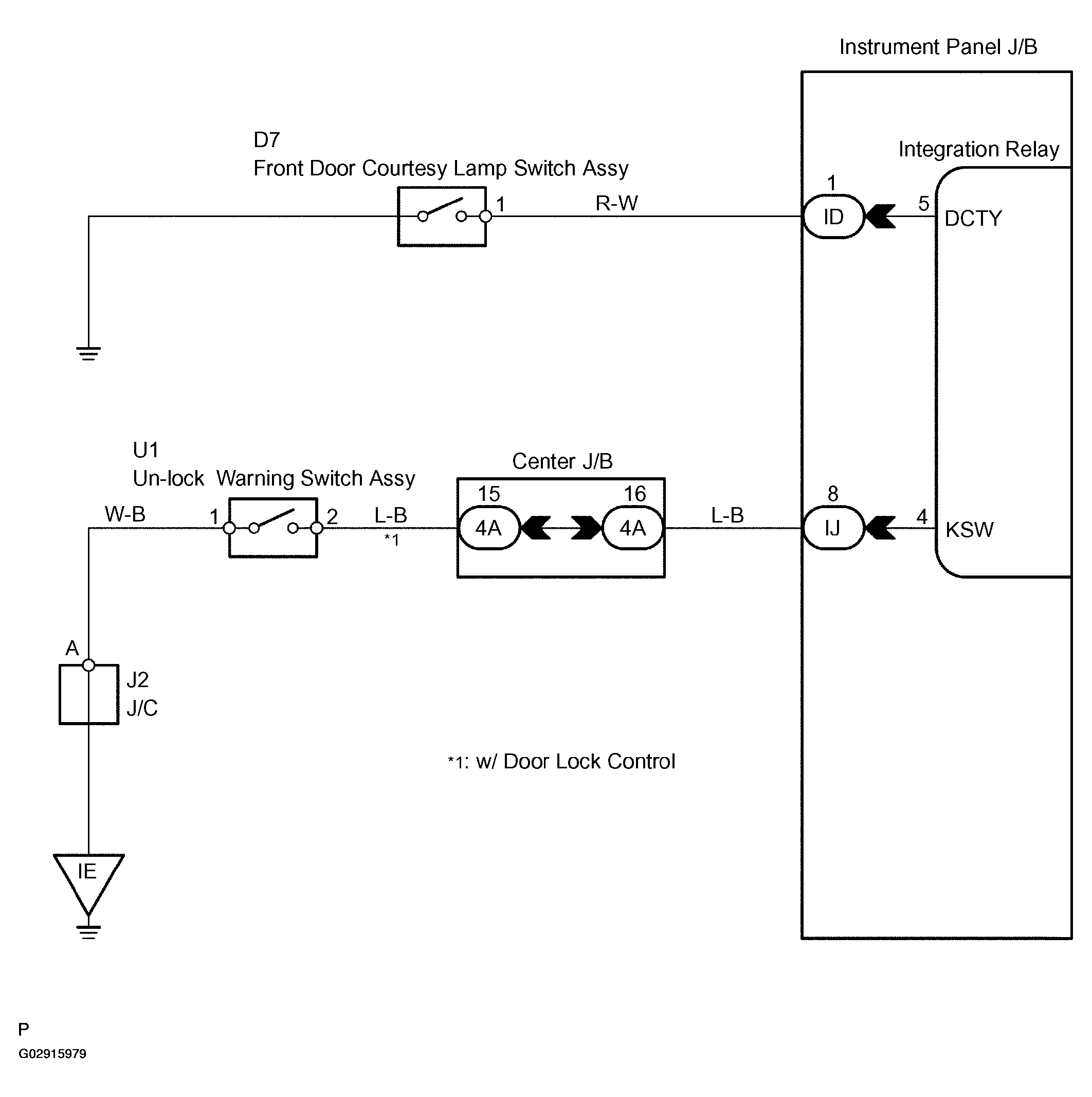

Fig 1: Key Confinement Prevention System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
