Abs With EBD System - Diagnostics
>>
DTC C0278/11: Open Circuit In Abs Solenoid Relay Circuit, DTC C0279/12: Short Circuit In Abs Solenoid Relay Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC C0278/11: Open Circuit In Abs Solenoid Relay Circuit, DTC C0279/12: Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

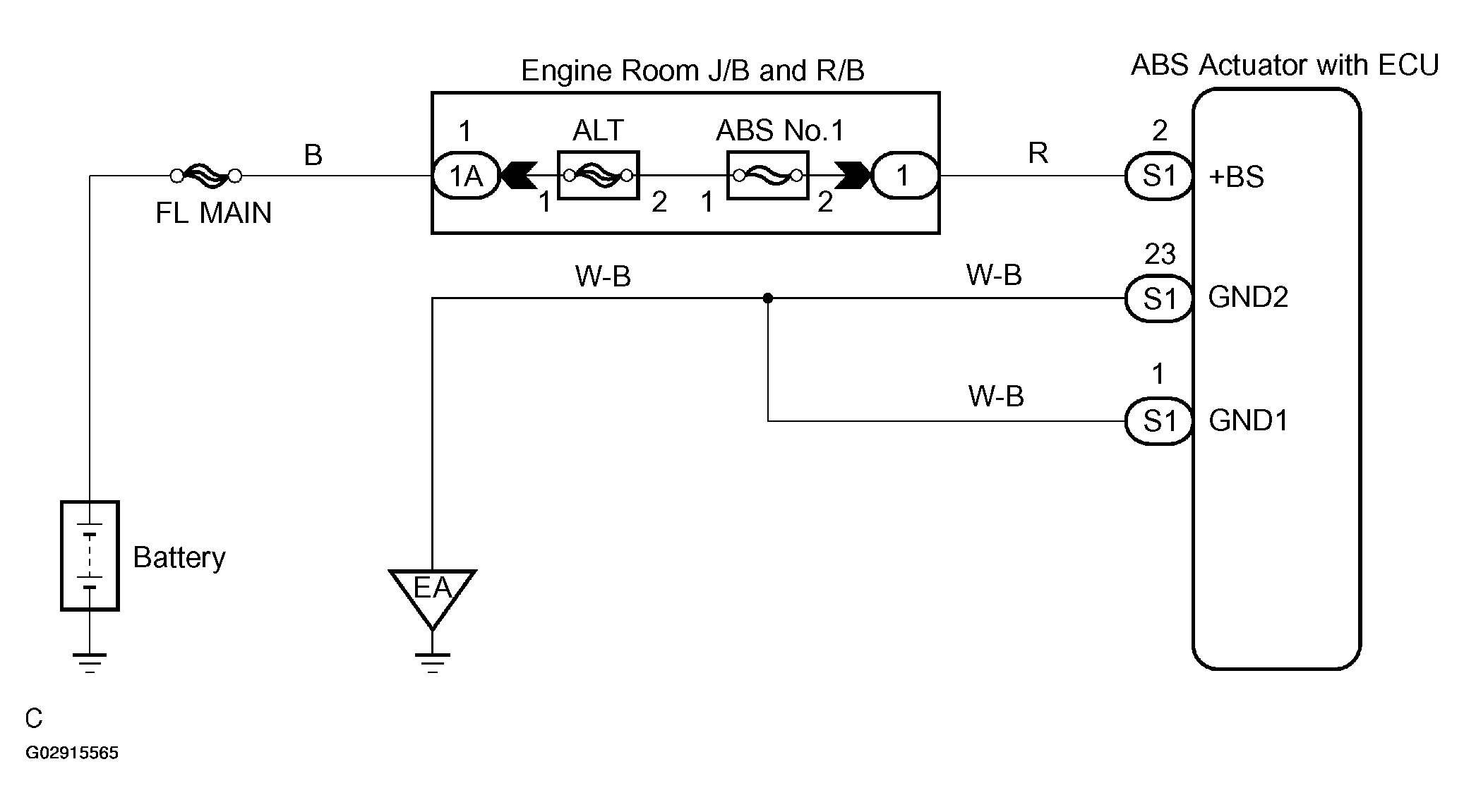

Fig 1: Wiring Diagram - ABS Solenoid Relay Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
