Throttle Body ASSY (1ZZ-FE): Components: Notes

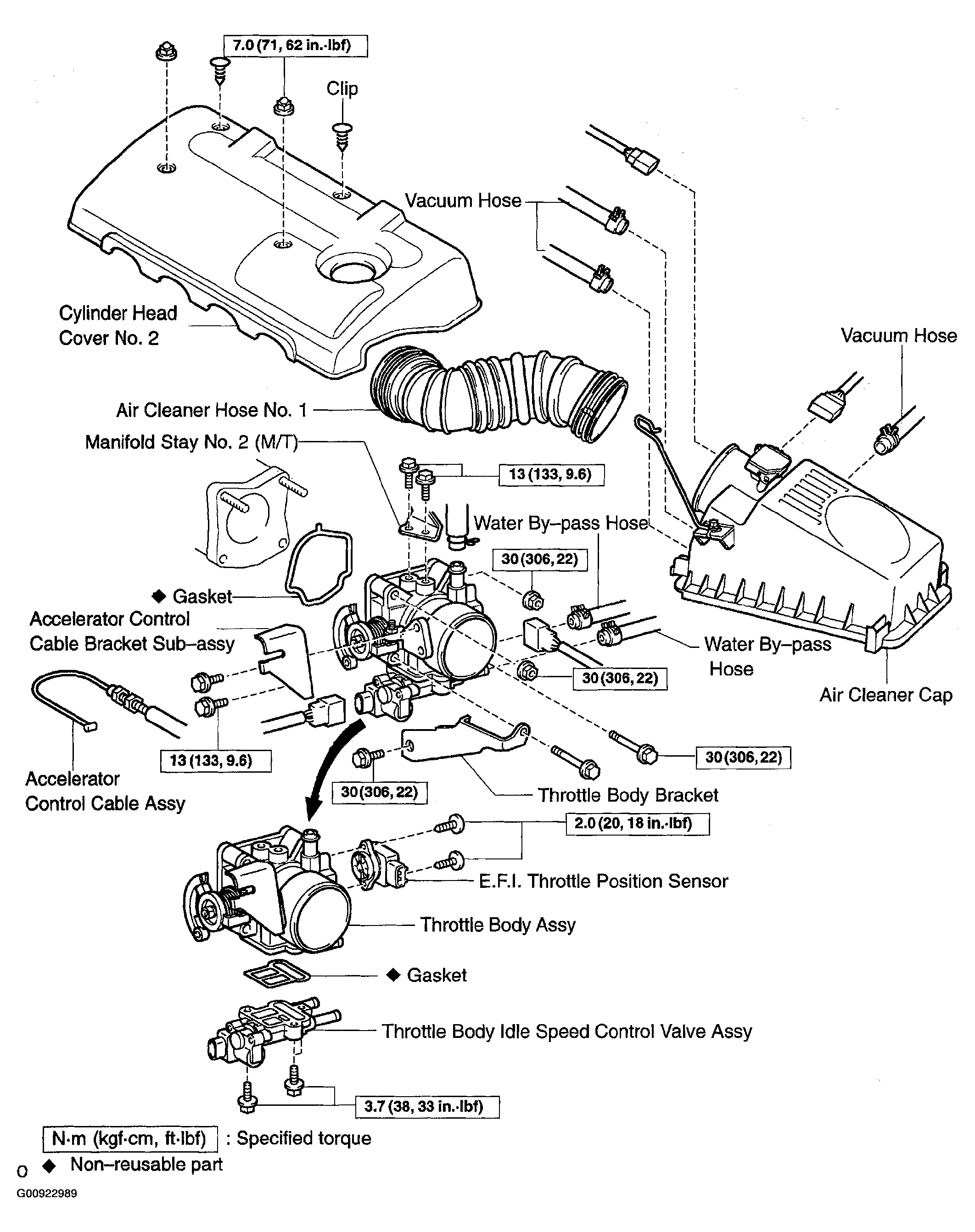

Fig 1: Identifying Throttle Body Assy (1ZZ-FE) Components
G00922989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
