Circuit Description
WARNING: This page is about a different car, the 2003 Lexus IS 300 and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

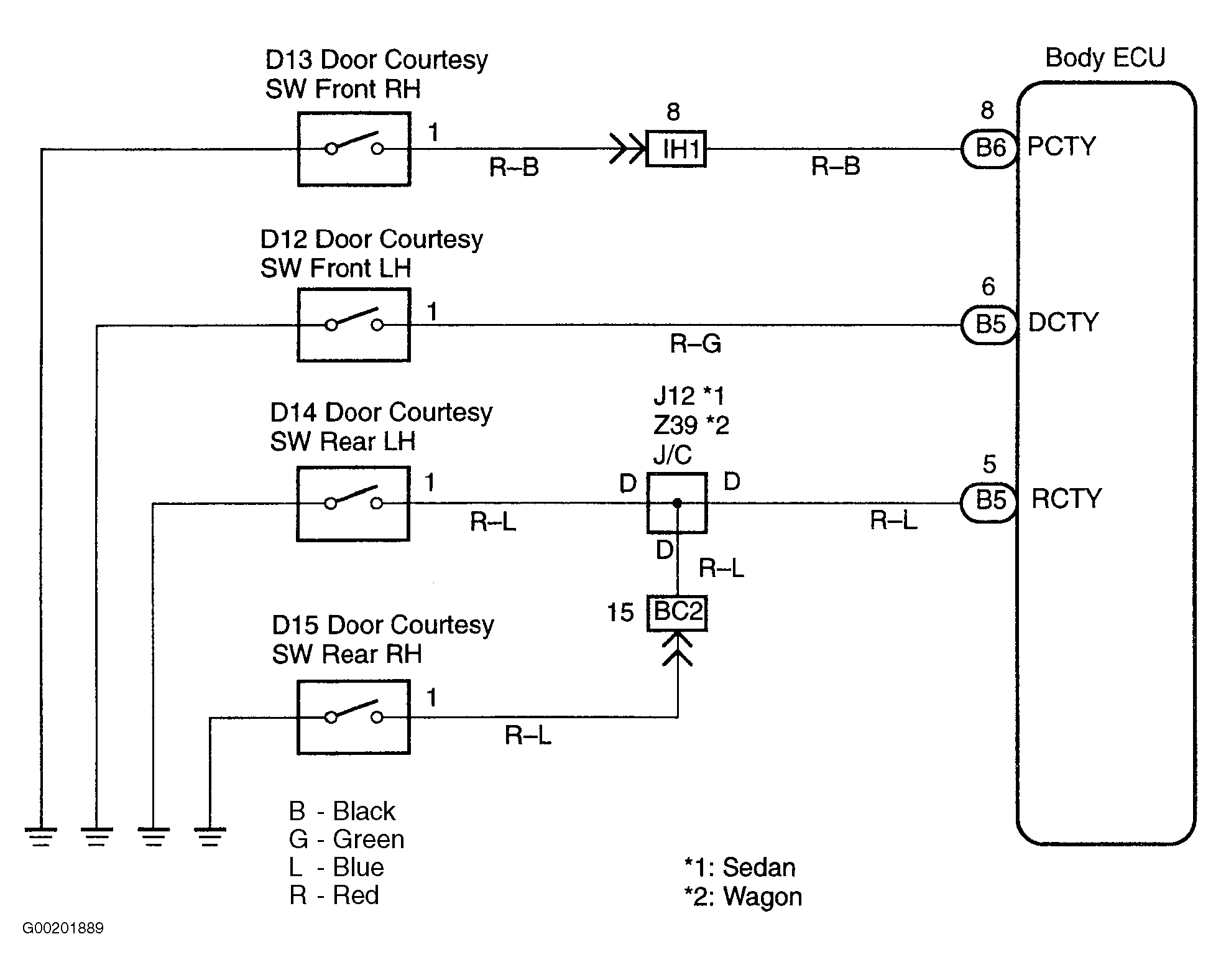

The door courtesy switch goes on when the door is opened and goes off when the door is closed. For circuit diagram, see Fig 1.
